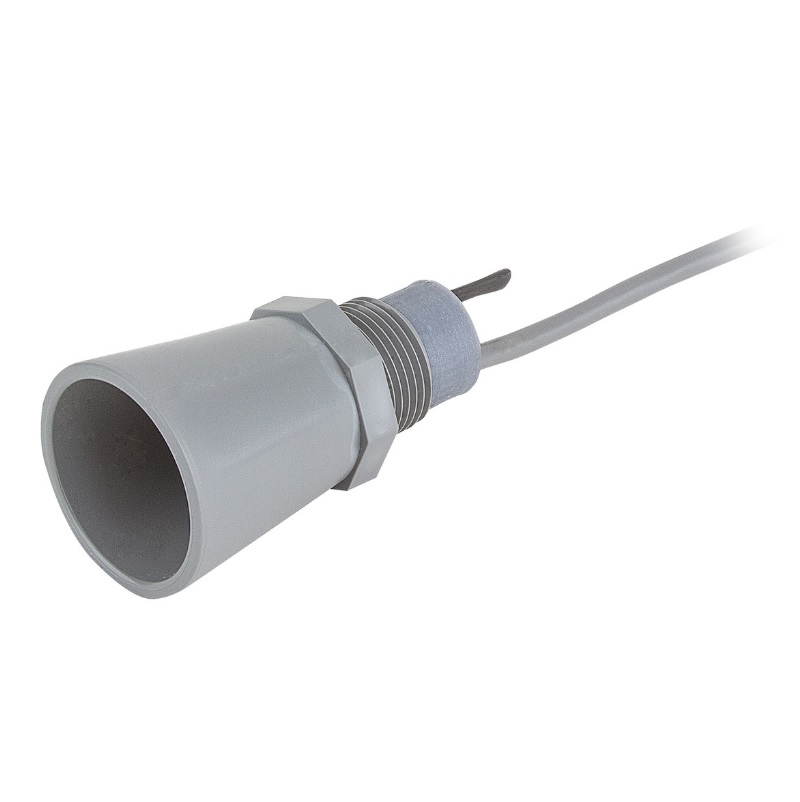

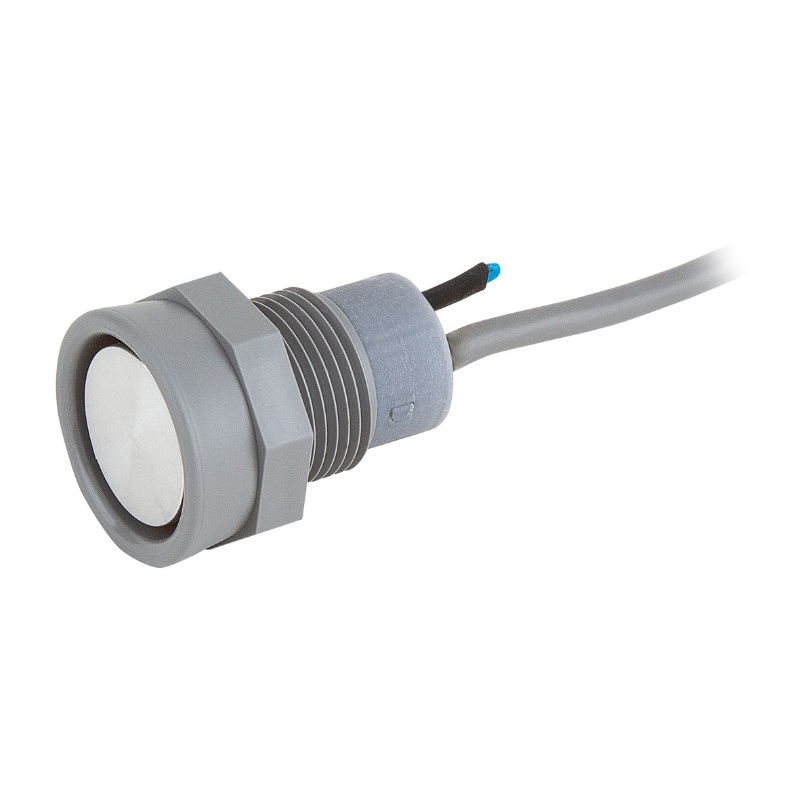

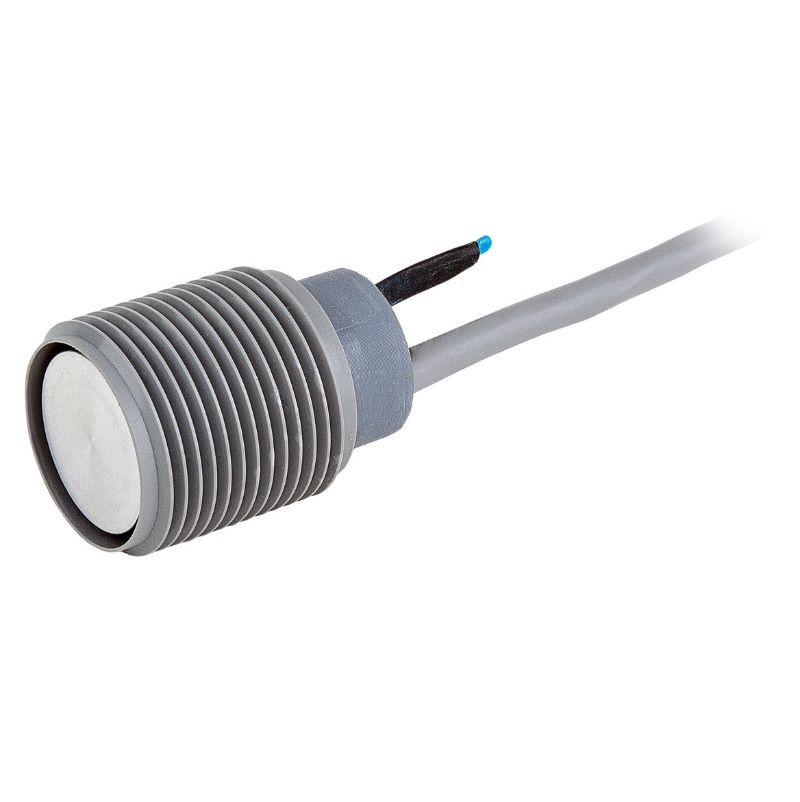

MaxBotix MB7469 HR-MaxSonar-WRM Ultrasonic Sensor - 4-20mA Output, IP67 Weather Resistant
The MaxBotix MB7469 is a high-performance, IP67-rated ultrasonic rangefinder delivering precise distance measurements via a robust 4-20mA analog current output. Designed for industrial automation and process control, it operates from 10-32V DC and provides stable readings in noisy environments.
Features
- High-accuracy ultrasonic ranging with 1.6mm resolution up to 5 meters.
- Industrial-standard 4-20mA analog current output for long-distance, noise-immune signal transmission.
- IP67 weather-resistant housing for reliable operation in harsh, wet, or dusty environments.
- Wide operating voltage range of 10-32V DC, compatible with industrial PLCs and control systems.
- Factory-calibrated beam pattern ensures consistent performance and excellent clutter rejection.
Out of stock
The MB7469 HR-MaxSonar-WRM sensor utilizes advanced ultrasonic time-of-flight (ToF) technology to deliver precise, non-contact distance measurements. Its robust 4-20mA current loop output provides inherent noise immunity, making it ideal for industrial installations where electrical interference is a concern. The sensor’s IP67-rated enclosure protects its internal electronics from dust ingress and temporary immersion, ensuring long-term reliability in outdoor or challenging industrial settings.
Engineered for stability, the sensor features sophisticated internal signal processing that filters out acoustic noise and environmental clutter, providing highly reliable range readings even in acoustically complex environments. With a wide operating temperature range of -40°C to +65°C and low current draw, it is suited for continuous monitoring applications in automation, tank level measurement, and bulk material bin level sensing.
Additional Information
| Weight | 0.185 kg |
|---|---|
| Dimensions | 21 × 14 × 5 cm |
