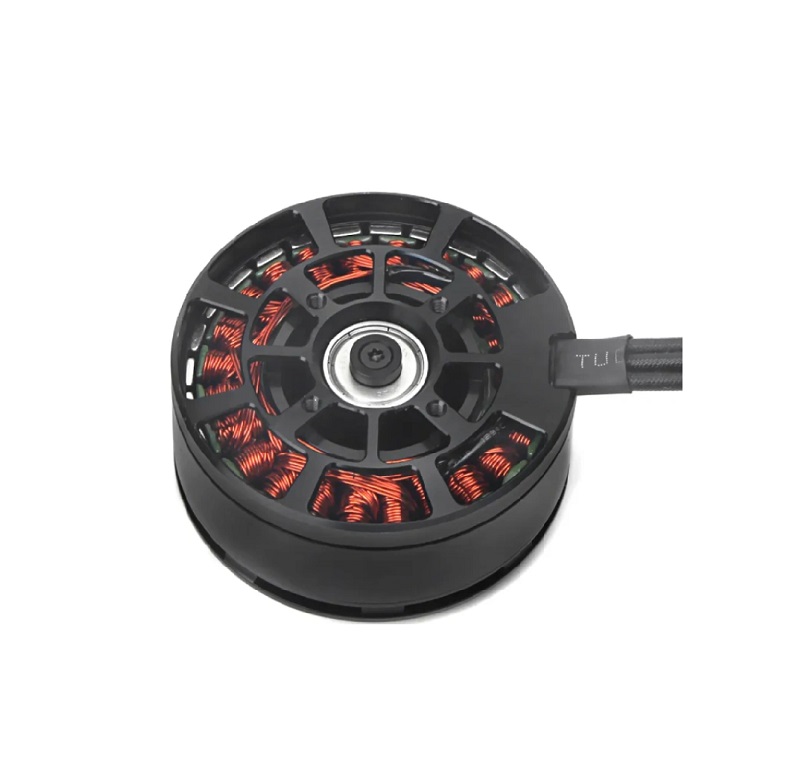

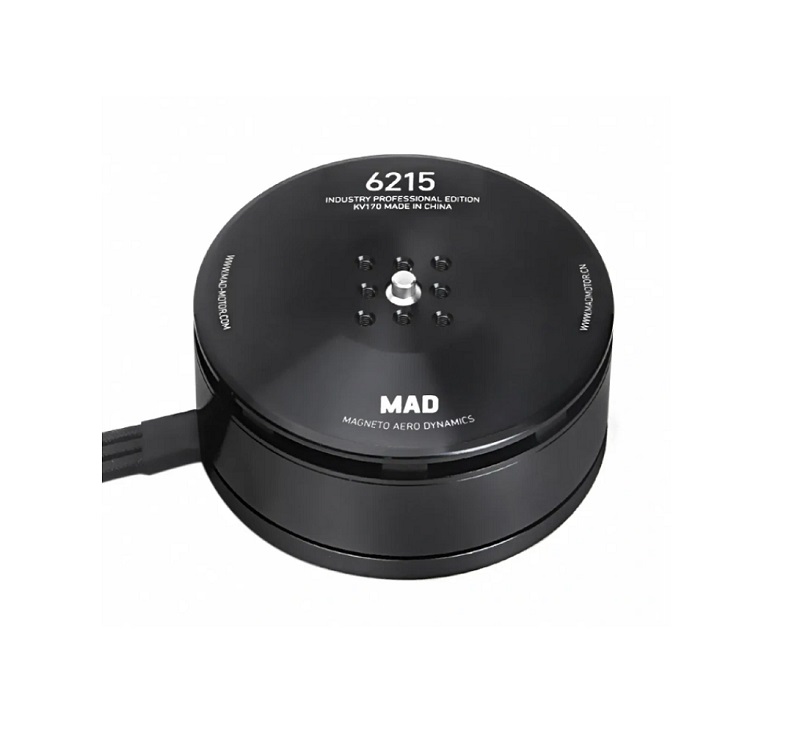

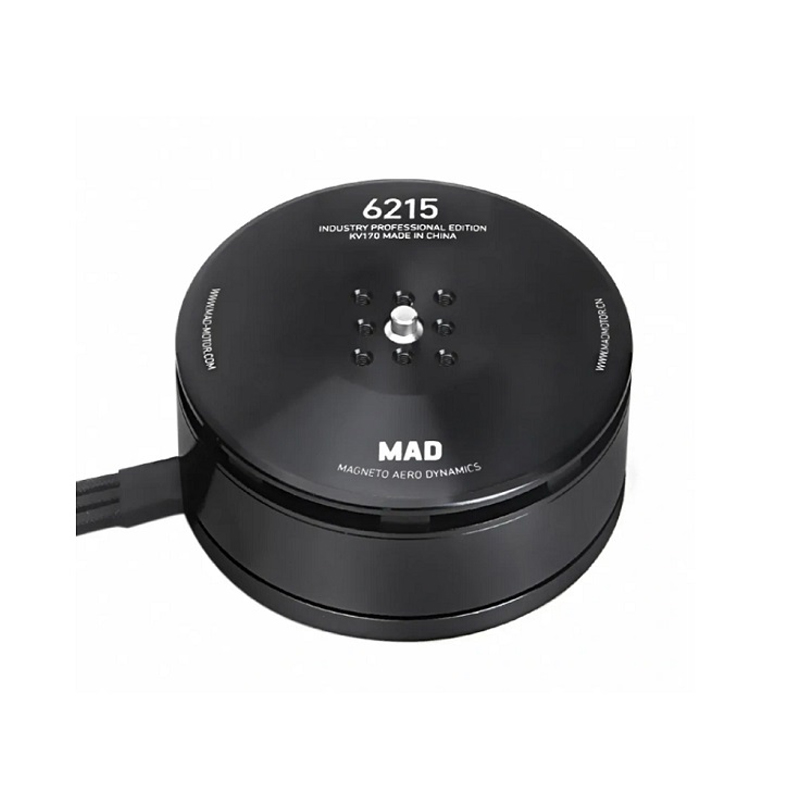

MAD Components Components 6215 IPE Agriculture Brushless Motor 170 KV
The MAD Components Components 6215 IPE is a high-torque 170KV brushless motor engineered for heavy-lift agriculture drones, featuring an IP35-rated housing for dust and water resistance and optimized for 12S LiPo power systems.
Features
- 170KV rating optimized for high-torque, low-RPM applications on 12S LiPo batteries.
- IP35-rated housing provides protection against dust ingress and water splashes for agricultural use.
- Delivers up to 2808W of peak power and 3.03Nm of torque for demanding payloads.
- Features oversized, durable bearings and a hollow shaft design for extended operational life.
- Internal resistance of 43mΩ ensures efficient power delivery and thermal management.
Out of stock
The MAD Components Components 6215 IPE brushless motor is purpose-built for the rigorous demands of modern precision agriculture and heavy-lift drone platforms. Its electrical design is centered around a 170KV winding, providing the substantial torque required for large-diameter propellers while maintaining efficient operation on 12S LiPo battery systems, minimizing current draw during extended endurance flights.
Structural durability is paramount, with an IP35 ingress protection rating safeguarding critical internal components from dust and water exposure common in farming environments. The integration of oversized bearings and a hollow shaft design reduces mechanical stress and wear, contributing to a reliable service life under continuous load. This motor represents a specialized propulsion solution where payload capacity, flight time, and environmental resilience are critical performance metrics.
Additional Information
| Weight | 0.432 kg |
|---|---|
| Dimensions | 12 × 12 × 6 cm |
