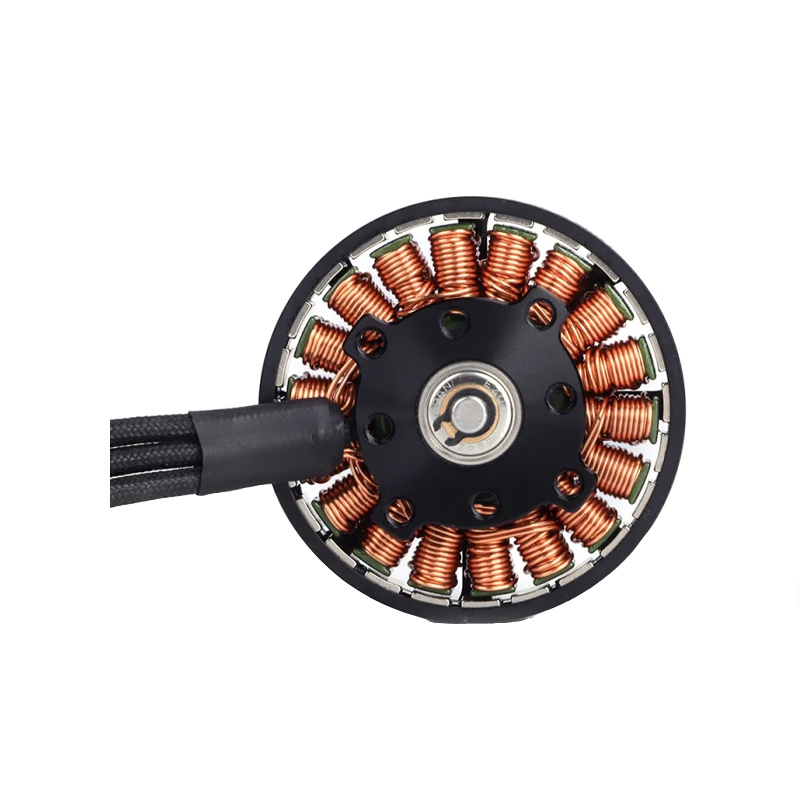

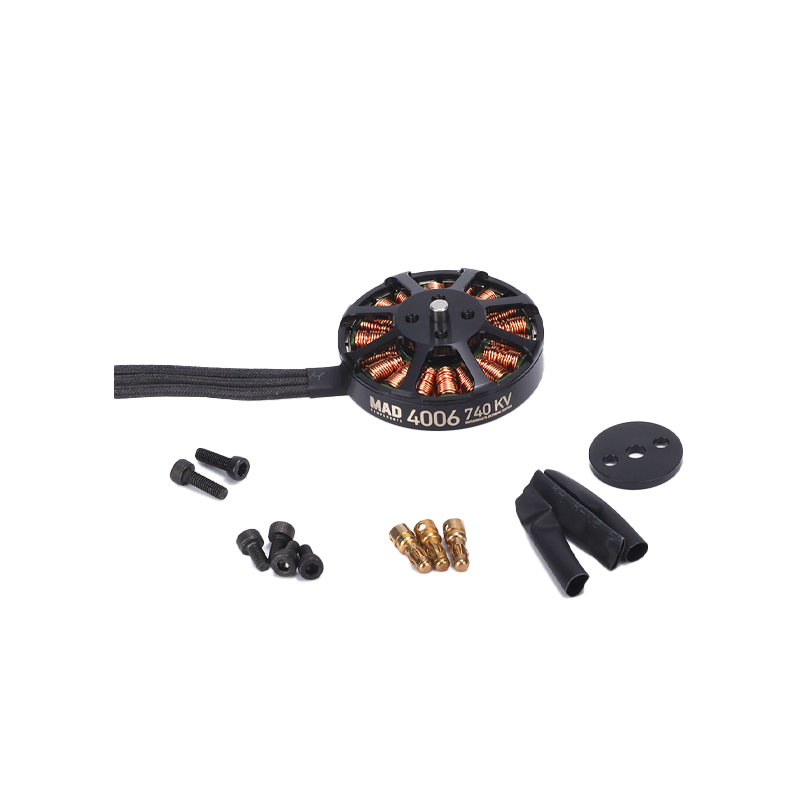

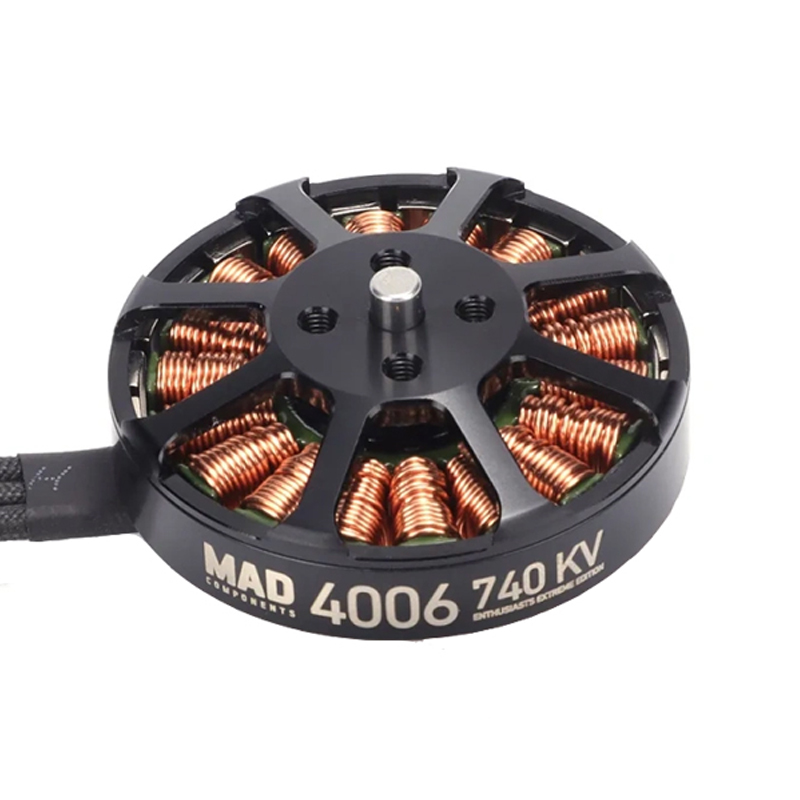

MAD Components Components 4006 EEE 740 KV Brushless Motor - Standard Set
The MAD Components Components 4006 EEE 740 KV is a high-torque brushless motor engineered for 4S LiPo systems, delivering up to 2.2 kgf of thrust at an ultralight 72g weight. It is optimized for low-RPM efficiency with 13″ to 16″ carbon fiber propellers, making it suitable for heavy-lift FPV and industrial UAV applications.
Features
- 740KV high-torque brushless motor optimized for 4S LiPo voltage systems.
- Delivers a maximum thrust of 2.2 kgf (2200g) with an ultra-lightweight 72g motor weight.
- Engineered for low-RPM, high-efficiency operation with 13″ to 16″ carbon fiber propellers.
- Features a 3.80mm shaft diameter and 44mm outer diameter for robust mounting.
- Maximum continuous current rating of 29.7A, with a peak power output of 455W.
Out of stock
The MAD Components 4006 EEE motor is designed for professional UAV applications requiring a superior thrust-to-weight ratio and extended flight endurance. Its high-efficiency stator and rotor design minimizes electrical losses, achieving over 81% efficiency to maximize battery life under heavy payloads.
Precision dynamic balancing reduces operational vibrations to below 5mg, ensuring smooth video footage and stable flight control for cinematography and mapping drones. The motor’s construction prioritizes thermal management and mechanical durability for reliable performance in demanding industrial and inspection environments.
Additional Information
| Weight | 0.096 kg |
|---|---|
| Dimensions | 10 × 7.5 × 4 cm |
