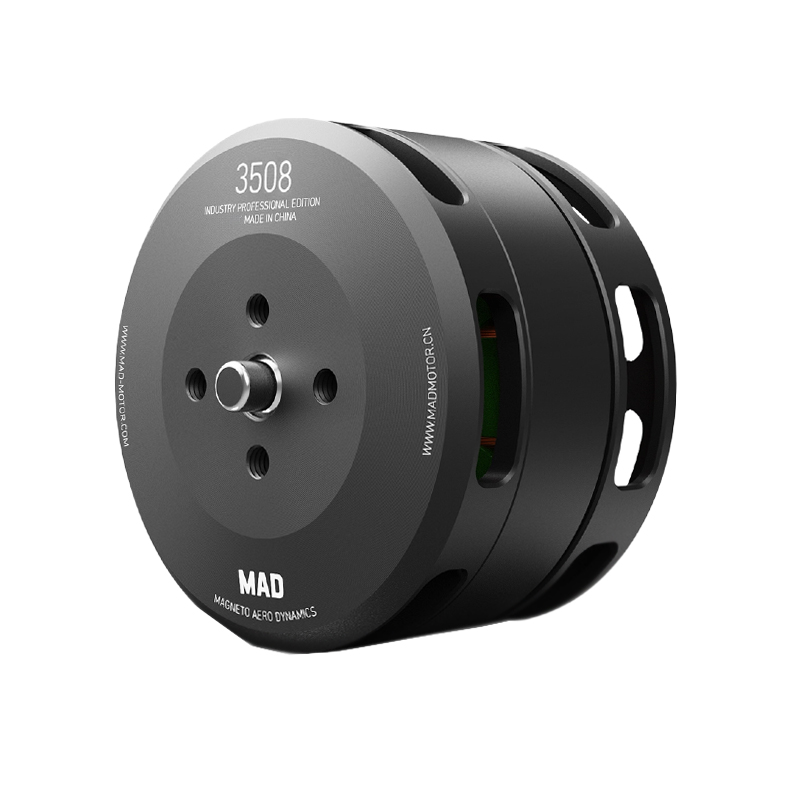

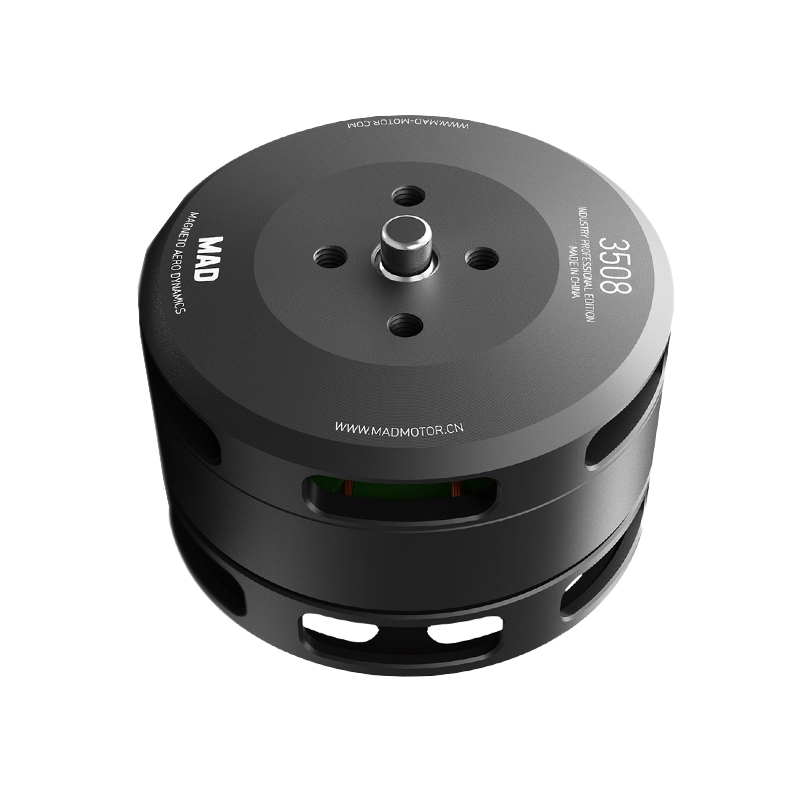

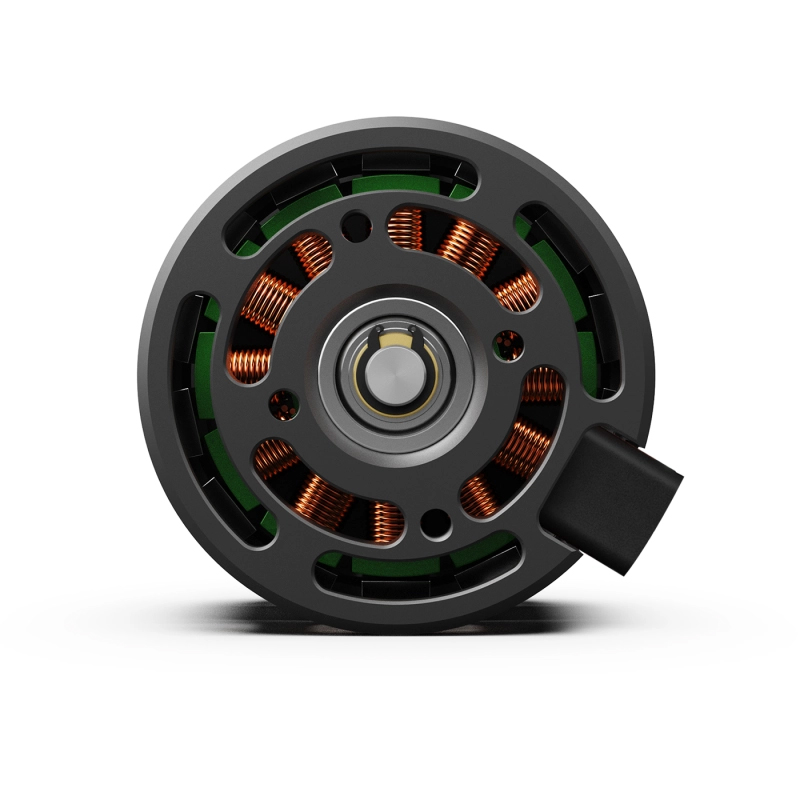

MAD Components Components 3508 IPE Brushless Drone Motor 700KV (Pack Of 2)
The MAD Components Components 3508 IPE brushless motor delivers 700KV of high-torque power for 4S LiPo heavy-lift and industrial drone platforms. Engineered with IP35-rated protection and centrifugal cooling, it provides up to 1.8kg of thrust per motor for stable, payload-capable flight.
Features
- 700KV rating optimized for 4S LiPo batteries and large 13–16-inch propellers.
- Delivers up to 1.8kg of maximum thrust per motor with a peak current of 21.3A.
- IP35-rated housing with centrifugal heat dissipation for robust thermal management.
- Features a corrosion-resistant stator and 150°C-rated high-temperature magnets.
- Precision balanced to ≤5 mg (rotor) and ≤10 mg (motor) for smooth, low-vibration operation.
Out of stock
The MAD Components Components 3508 IPE brushless motor is engineered for demanding professional UAV applications requiring reliable power and endurance. Its 700KV winding is optimized for 4S LiPo systems, generating high torque for efficient operation with large-diameter propellers up to 16 inches. The motor’s structural integrity is enhanced by a corrosion-resistant stator and high-temperature magnets rated for continuous operation up to 150°C.
Advanced thermal management is achieved through an IP35-rated housing design that facilitates centrifugal cooling, effectively dissipating heat under high-load conditions. The rotor and motor assembly undergo precision dynamic balancing, minimizing vibration to ensure smooth flight characteristics and extended bearing life. This combination of power, durability, and refined engineering makes the 3508 IPE a core component for stable, heavy-lift multirotor builds.
Additional Information
| Weight | 0.356 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
