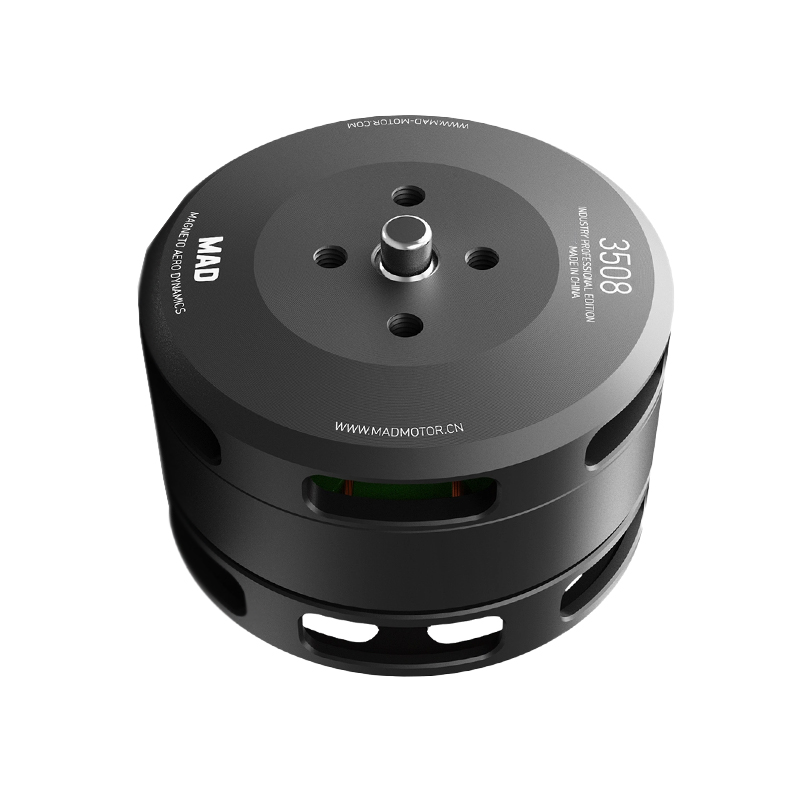

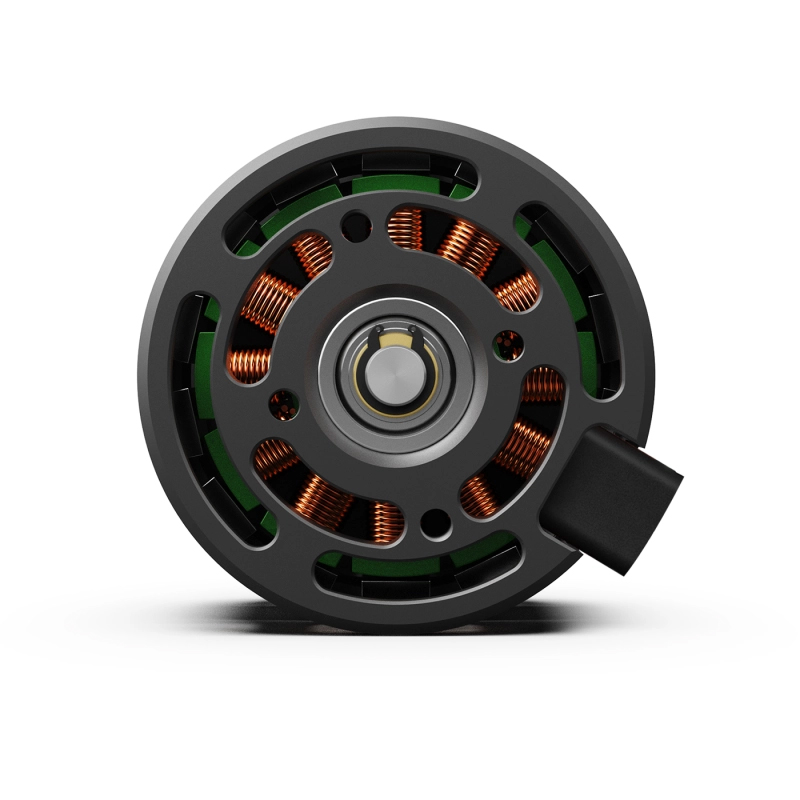

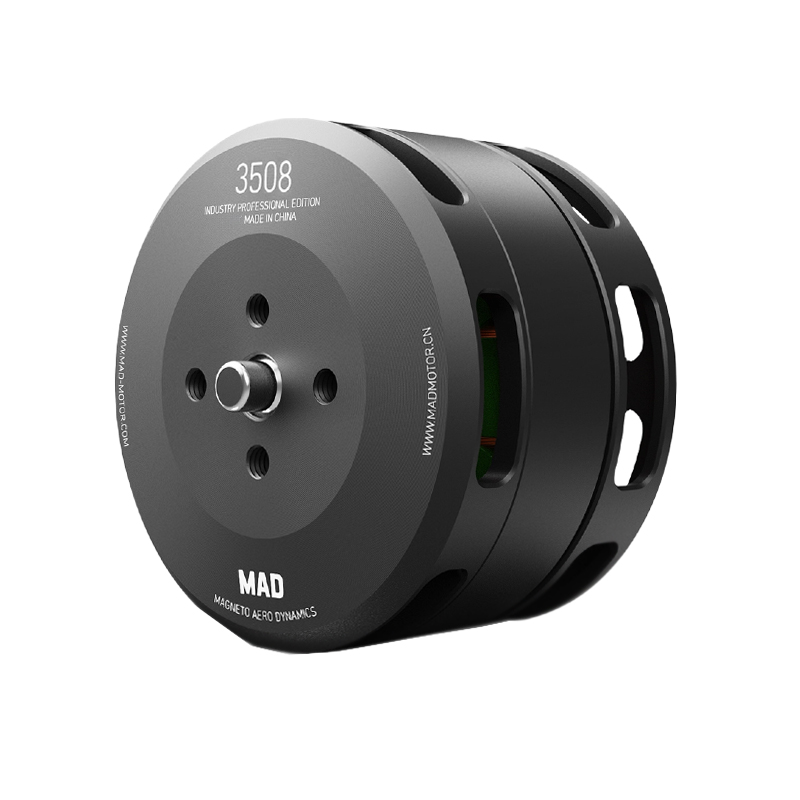

MAD Components Components 3508 IPE Brushless Drone Motor 580KV (Pack Of 2)
The MAD Components Components 3508 IPE is a 580KV brushless motor engineered for heavy-lift multirotor applications, optimized for 4S LiPo power systems and compatible with 13″ to 16″ carbon fiber propellers to deliver high thrust with over 82% efficiency.
Features
- High-torque 580KV IPE brushless motor designed for 4S LiPo operation.
- Delivers up to 1.6kg of thrust per motor for heavy-lift payload capability.
- Lightweight 97g construction with precision-balanced rotor for minimal vibration.
- High efficiency (>82%) extends flight times for cinematic and industrial UAVs.
- Features a 5mm shaft and dual M3 mounting patterns (12mm & 15mm).
Out of stock
The MAD Components Components 3508 IPE brushless motor is engineered for demanding UAV applications where reliable power and efficiency are paramount. Its 580KV rating and IPE (Internal Permanent Magnet) design are optimized for 4S LiPo batteries, providing a high torque output of 0.29 Nm to efficiently drive large 13″ to 16″ carbon fiber propellers. This combination yields a maximum thrust of 1.6kg per motor, making it suitable for drones carrying significant payloads.
Constructed with a lightweight 97g frame measuring 42.5mm in diameter and 30.5mm in height, the motor maintains structural integrity under high loads. Precision-balanced internals, including 685ZZ and 695ZZ bearings, ensure smooth, vibration-free operation critical for aerial imaging and sensitive equipment. The thermal and electrical design supports a maximum continuous current of 17.7A (277W), ensuring stable performance during extended flight sessions.
Additional Information
| Weight | 0.356 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
