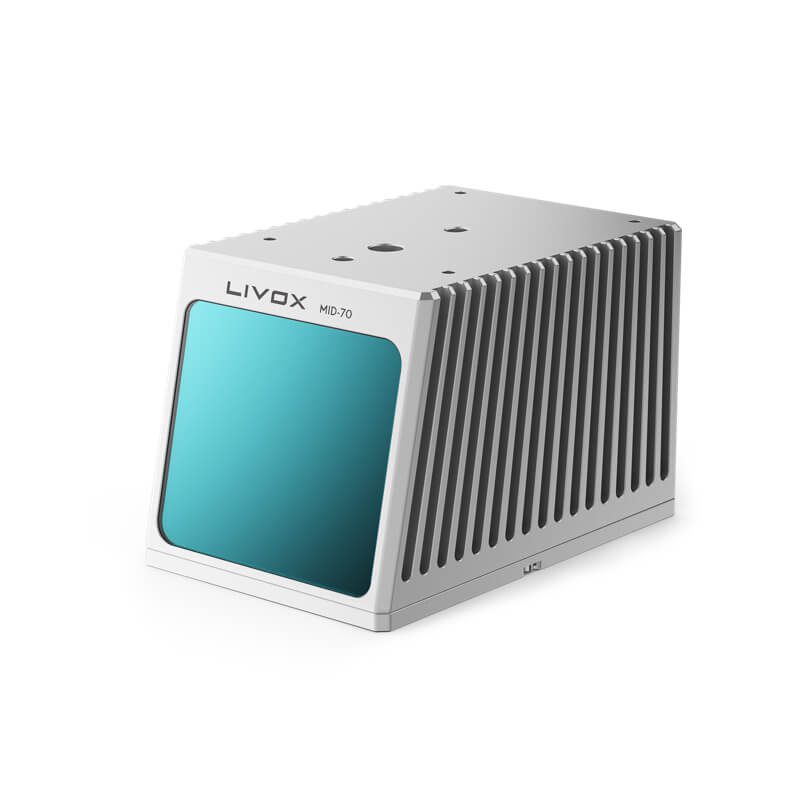

Livox Mid-70 LiDAR - 905nm Laser, 70.4° Circular FOV, 10-15V DC
The Livox Mid-70 is a high-performance, solid-state LiDAR sensor designed for low-speed autonomous navigation and mobile robotics. It delivers a 70.4° circular field of view with high-precision 3D point cloud data, compatible with robotic platforms and autonomous vehicle systems requiring 10-15V DC power.
Features
- 905nm laser wavelength with a detection range up to 260m at 80% reflectivity.
- 70.4° circular field of view (FOV) for comprehensive environmental coverage.
- High precision: ≤2cm range accuracy at 20m and angular precision (1σ) <0.1°.
- Optimized for low-speed autonomous driving, AGVs, and mobile robotics in crowded spaces.
- Compact, rugged design measuring 97×64×62.7mm with an average power consumption of 8-9W.
Out of stock
The Livox Mid-70 LiDAR utilizes a solid-state scanning architecture with a 905nm laser to generate dense, real-time 3D point clouds. Its 70.4° circular field of view minimizes blind zones, providing robust environmental perception for navigation and obstacle avoidance in dynamic, unstructured environments.
Engineered for reliability, the sensor delivers consistent performance with a range precision of ≤2cm at 20m and high angular accuracy. Its design leverages cost-effective semiconductor components to offer a high-performance sensing solution suitable for integration into autonomous mobile robots (AMRs), last-mile delivery vehicles, and advanced driver-assistance systems (ADAS).
Additional Information
| Weight | 0.58 kg |
|---|---|
| Dimensions | 9.7 × 6.4 × 6.27 cm |
