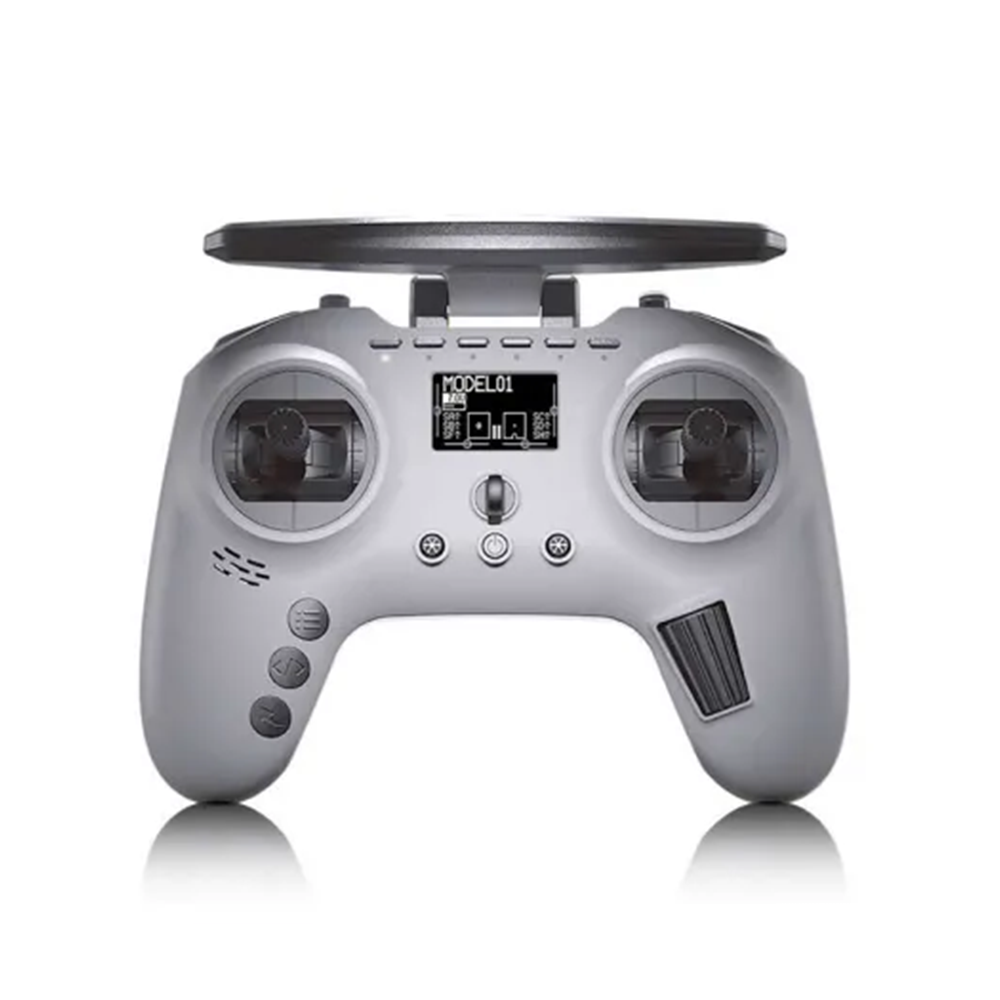

Jumper T Pro V2 Radio Controller ELRS

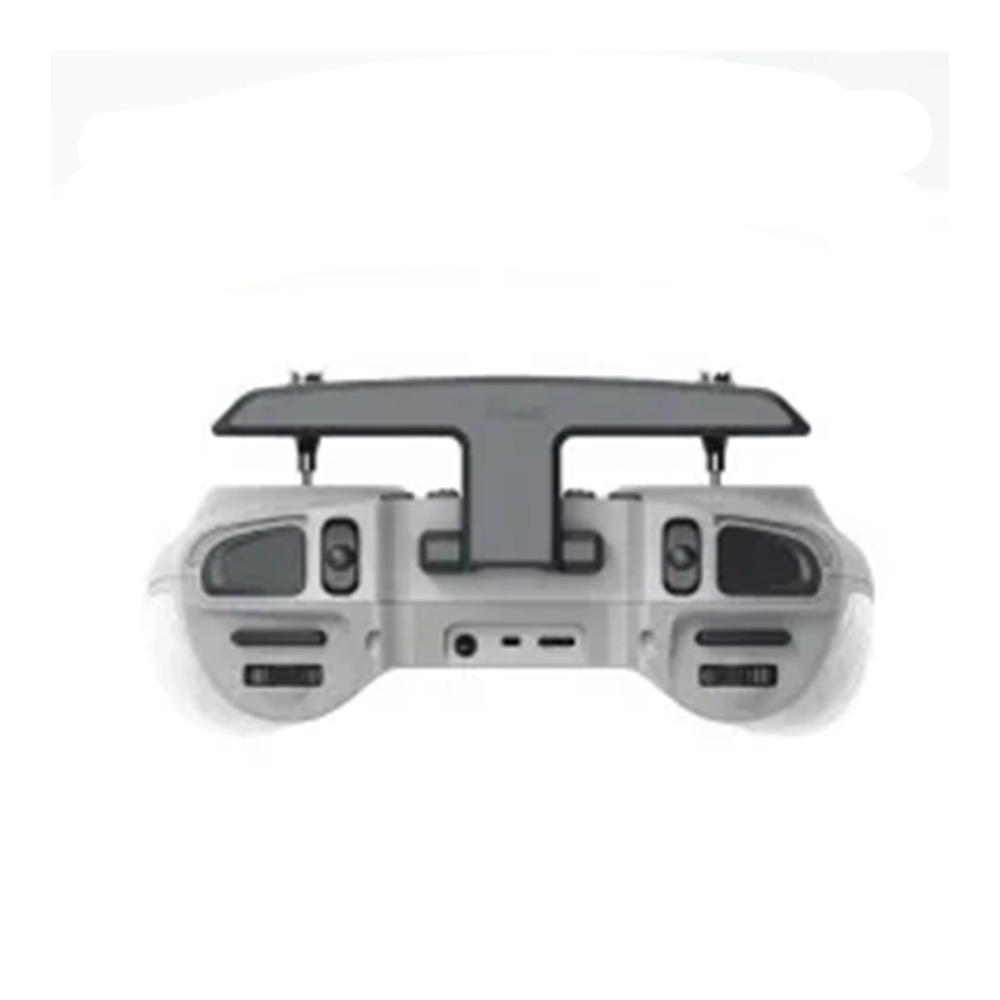

Jumper T Pro V2 Radio Controller ELRS - Image 2
SKU: DRFC-3394
📋 GST Invoice Available

Jumper T Pro V2 Radio Controller ELRS

₹14,589.00 (Inclusive of all taxes)
Out of Stock

The Jumper T Pro V2 is a multi-protocol radio controller featuring an internal JP4IN1 module and an external NANO interface for ELRS, CRSF, or Tracer modules, running on EdgeTX firmware for versatile FPV and RC model control.

Features

  • Internal JP4IN1 Multi-Protocol Module for broad receiver compatibility.
  • External NANO interface supports ELRS, Crossfire (CRSF), and Tracer Nano modules.
  • High-precision Hall effect sensor gimbals with full ball bearings for smooth, durable control.
  • 1.3″ OLED screen (128×64) for clear telemetry and menu navigation.
  • USB-C charging for dual 18650 batteries (6V-8.4V), offering extended operational time.

Out of stock

Description

The Jumper T Pro V2 Radio Controller is engineered for pilots demanding protocol flexibility and precise control. Its architecture centers on the internal JP4IN1 module, providing native support for a wide spectrum of legacy and modern RC protocols, while the dedicated external NANO port allows for seamless integration of high-performance long-range systems like ExpressLRS, TBS Crossfire, or Tracer.

Built around the open-source EdgeTX (and OpenTX) firmware platform, the transmitter offers deep customization for FPV drone parameters, model mixing, and telemetry display. The combination of Hall effect gimbals, a high-resolution OLED, and robust power delivery via 18650 cells creates a reliable ground control station suitable for competitive racing, long-range exploration, and complex fixed-wing or helicopter setups.

Key Features

  • Multi-Protocol Core: Integrated JP4IN1 module delivers out-of-the-box compatibility with FlySky, FrSky, DSMX, and many other legacy and modern RC protocols.
  • Modular RF Expansion: External NANO interface accepts plug-in modules for cutting-edge long-range control systems like ExpressLRS 2.4GHz/915MHz, TBS Crossfire, and ImmersionRC Tracer.
  • Precision Gimbal Assembly: Hall effect sensor gimbals mounted on full ball bearings provide accurate, centering-stick control with minimal wear over time.
  • EdgeTX Firmware Platform: Runs the fully customizable EdgeTX operating system, enabling advanced model programming, Lua scripts, and telemetry widgets.
  • High-Fidelity Audio: Integrated Hi-Fi speakers deliver clear system alerts and audio feedback with low power consumption and minimal distortion.
  • Convenient Power System: Dual 18650 battery sled with USB-C charging port simplifies power management and supports high-capacity cells for all-day flying sessions.
  • Standard Simulator Port: 3.5mm PPM output port allows for direct connection to flight simulator software for practice without draining transmitter batteries.

Applications

  • Primary transmitter for DIY FPV racing and freestyle drones requiring multi-protocol or ExpressLRS control.
  • Long-range fixed-wing or rotorcraft platform control utilizing the external NANO port for CRSF or Tracer modules.
  • Versatile bench and field transmitter for pilots managing a mixed fleet of drones, planes, and helicopters with different receiver protocols.
  • Training and simulator practice via the dedicated 3.5mm PPM port, preserving main battery life.

Technical Specifications

Item TypeRadio Controller
Model NameJumper T-Pro
Operating VoltageDC 6V - 8.4V (2S Li-ion)
Firmware CompatibleEdgeTX, OpenTX
Internal RF ModuleJP4IN1 Multi-Protocol
External Module InterfaceNANO (ELRS/CRSF/Tracer)
Screen1.3" OLED, 128 x 64 resolution
Gimbal TypeHall Effect Sensor
Simulator Port3.5mm standard PPM
Audio SystemHi-Fi Speakers
Battery Configuration2 x 18650 Li-ion Cells
Charging PortUSB-C

Frequently Asked Questions

What protocols does the internal JP4IN1 module support?

The internal JP4IN1 module provides native support for a wide range of protocols including FrSky D8/D16, FlySky AFHDS/AFHDS 2A, DSM2/DSMX, Futaba S-FHSS, and many others. This allows you to bind directly to a vast array of receivers without needing an external module.

Can I use ExpressLRS with this transmitter?

Yes, the Jumper T Pro V2 is designed for ExpressLRS. It features an external NANO module bay that accepts plug-in ExpressLRS Nano transmitters (2.4GHz or 915MHz). You must purchase the ExpressLRS module separately and flash it with the appropriate firmware.

What type of batteries are required and how are they charged?

The transmitter requires two standard 18650 Li-ion cells (unprotected, flat-top recommended). It includes a USB-C charging port that allows you to charge the batteries internally without removing them. Always use a matched pair of cells with similar capacity and charge state.

Is the gimbal calibration done in software or hardware?

Calibration is performed in the EdgeTX firmware. The Hall effect sensors provide a digital signal, and you can access the calibration menu to set the stick endpoints and center points, ensuring precise control and eliminating any dead zones.

Package Includes

  • 1 x Jumper T Pro V2 Radio Controller ELRS

Additional Information

Weight 0.6 kg
Dimensions 21 × 8 × 11 cm
