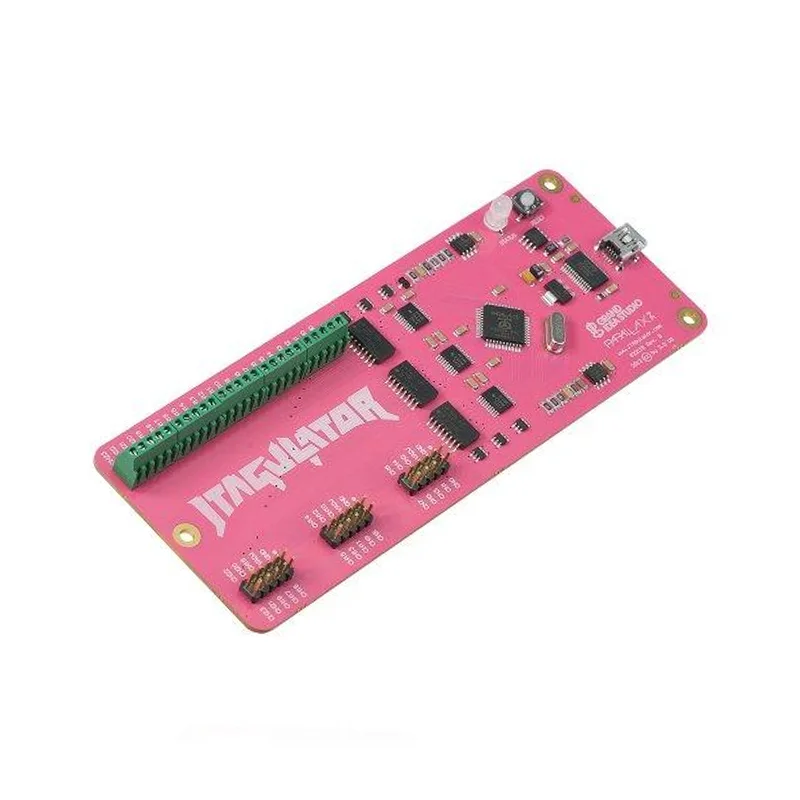

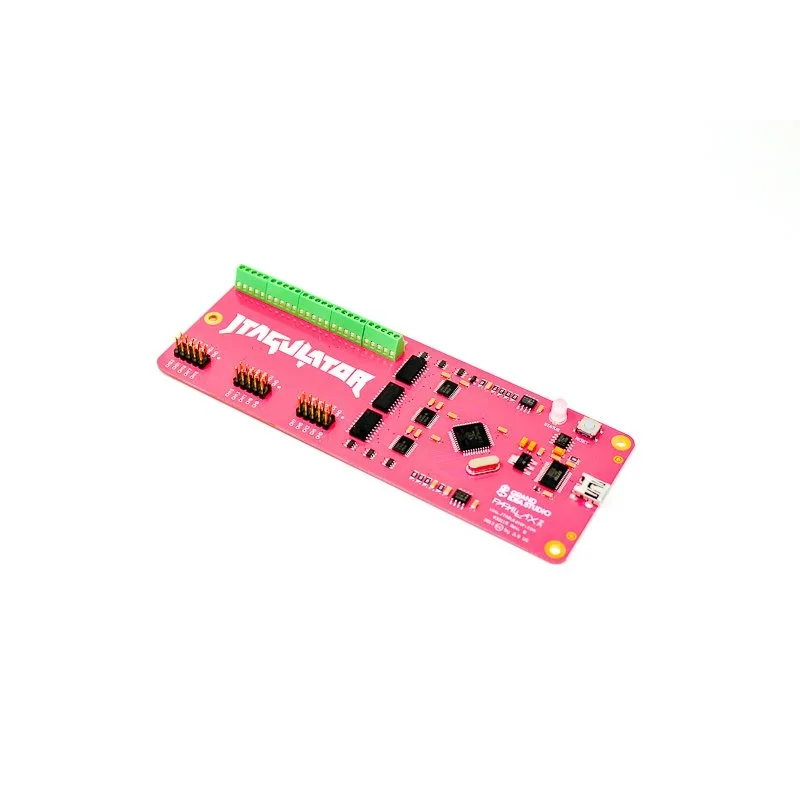

JTAGulator Kit with JTAG Exploitation Learning Kit

The JTAGulator's firmware supports the automated identification of JTAG (IEEE 1149.1) and UART (asynchronous serial) interfaces. It scans the provided I/O pins against the target device's test points to locate TDI, TDO, TCK, TMS for JTAG, or TX and RX for UART, significantly speeding up the hardware reconnaissance phase of security testing or debugging.

Connect the JTAGulator to your host computer via its USB port. You will need to use compatible terminal software or the dedicated host utilities provided by the open-source project. Configure the target voltage (1.2V-3.3V) through the software, connect the ribbon cable to the target device's test points, and run the scanning commands to identify potential JTAG or UART pinouts automatically.

The adjustable target voltage (1.2V to 3.3V) ensures safe electrical compatibility when probing unknown devices. You must set the JTAGulator's output voltage to match the logic level of the target board before connecting. This protects both the tool's I/O protection circuits and the target device from potential damage caused by voltage mismatch during the interface discovery process.

Yes, the JTAGulator is built on a Parallax Propeller microcontroller, making it a functional Propeller development board. You can write and flash custom firmware for it using the Parallax development tools. This allows it to be repurposed for other projects beyond interface discovery, such as a multi-core processor experiment platform or a simple logic analyzer.

The included JTAG Exploitation Learning Kit provides practical educational materials focused on hardware security. It typically contains documentation, tutorial exercises, and example target scenarios designed to teach the fundamentals of locating, accessing, and interacting with on-chip debug interfaces like JTAG for purposes of firmware extraction, analysis, and understanding hardware exploitation techniques.
