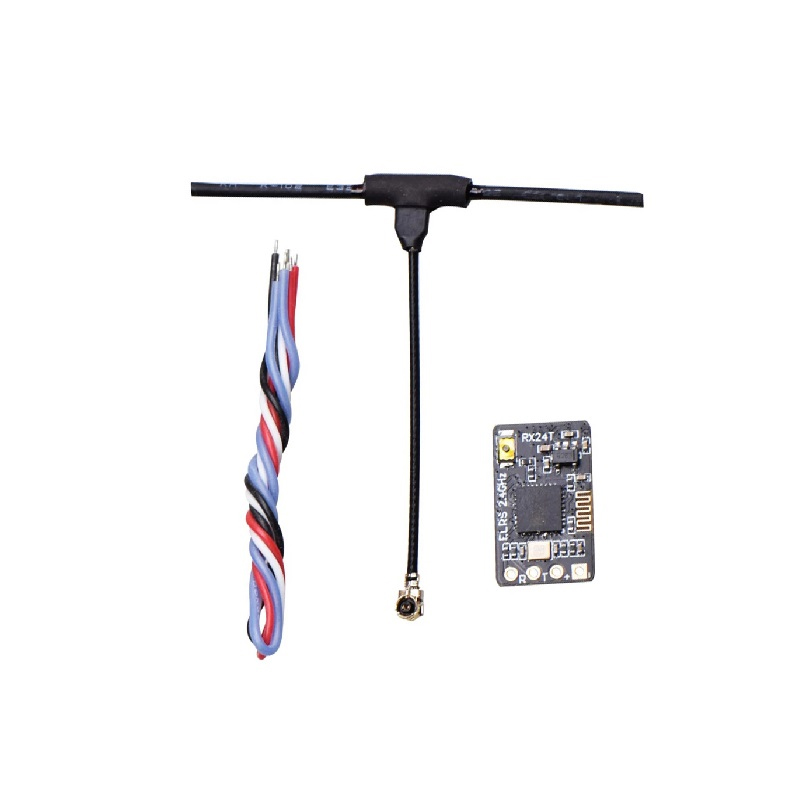

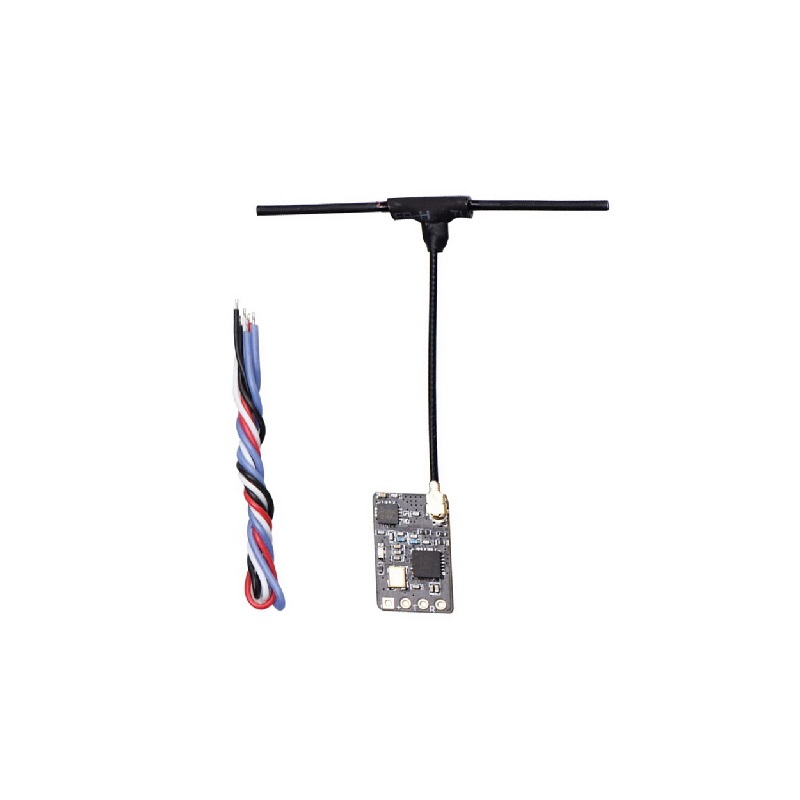

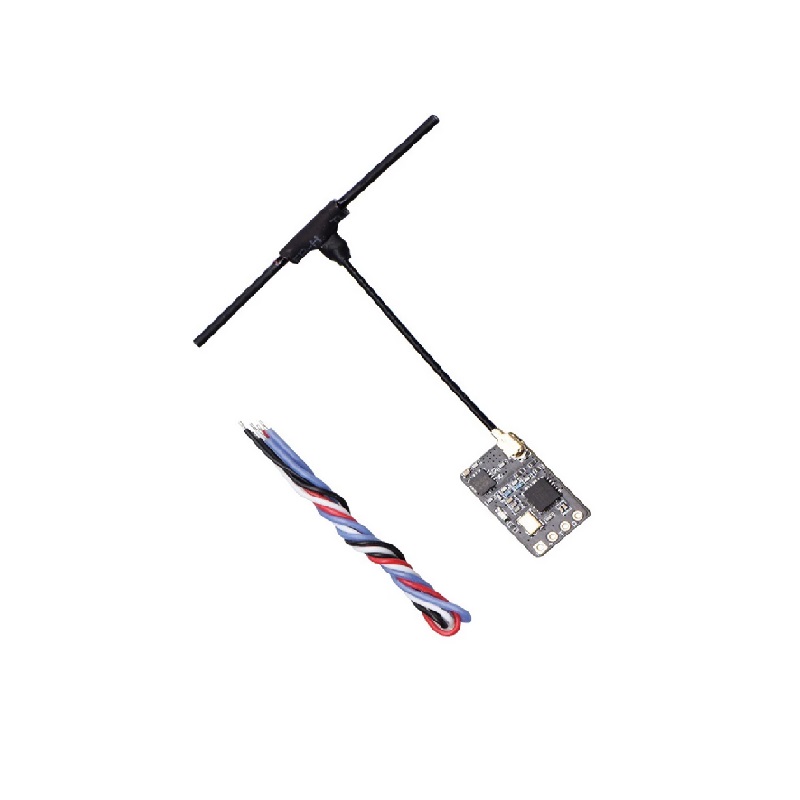

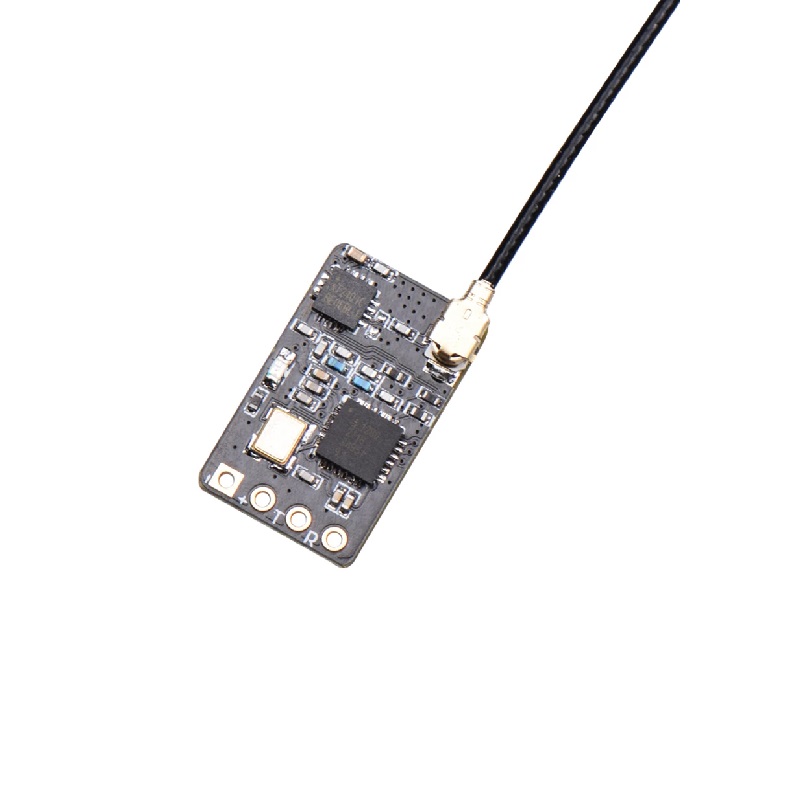

JHEMCU ExpressLRS RX24T 2.4G Receiver

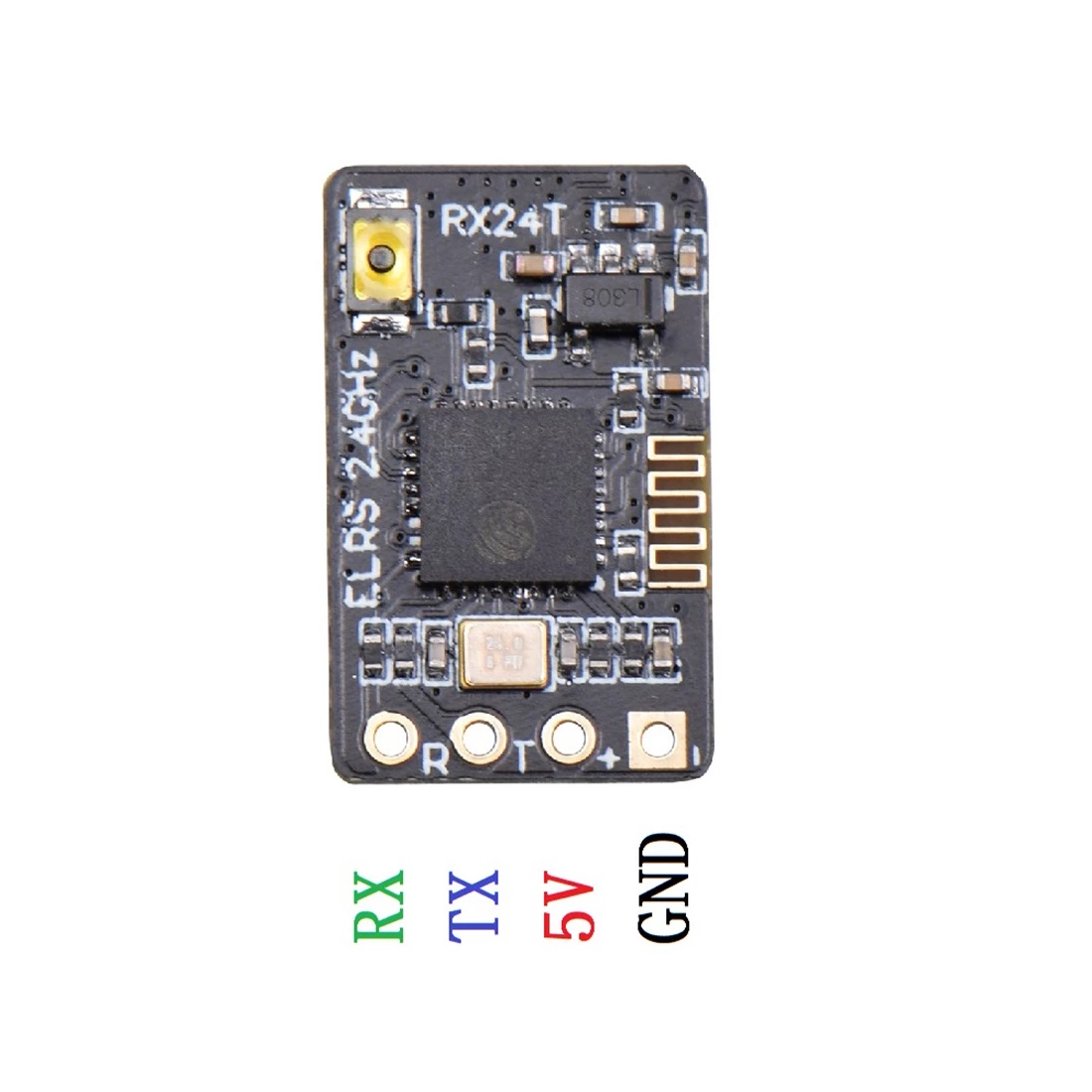

The JHEMCU RX24T is a compact 2.4GHz ExpressLRS receiver featuring an ESP8285 MCU and SX1280 RF chip, designed for integration with Betaflight and ArduPilot flight controllers. It operates on 5V and delivers a 500Hz refresh rate for low-latency control.
Features
- ExpressLRS 2.4GHz protocol with SX1280IMLTRT RF chip for long-range, low-latency performance.
- Ultra-lightweight 0.6g design (without antenna) for weight-sensitive FPV racing and freestyle builds.
- ESP8285 MCU enables easy firmware updates via WiFi and supports advanced telemetry backhaul.
- 500Hz refresh rate ensures ultra-responsive control inputs for competitive and acrobatic flying.
- 5V operating voltage compatible with standard flight controller 5V BEC outputs.
Out of stock
The JHEMCU RX24T receiver implements the open-source ExpressLRS protocol on the 2.4GHz ISM band, leveraging the high-performance SX1280 transceiver for robust RF link integrity and minimal packet loss. Its compact footprint and sub-1-gram weight make it an ideal choice for micro and lightweight 5-inch quadcopters where every gram impacts flight dynamics.
Powered by an ESP8285 microcontroller, the unit supports convenient over-the-air (OTA) firmware updates via a built-in WiFi mode, allowing pilots to stay current with the latest ExpressLRS performance enhancements and bug fixes without physical connections. The integrated telemetry provides real-time signal strength (RSSI) and link quality data back to the transmitter.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 6 × 1 cm |
