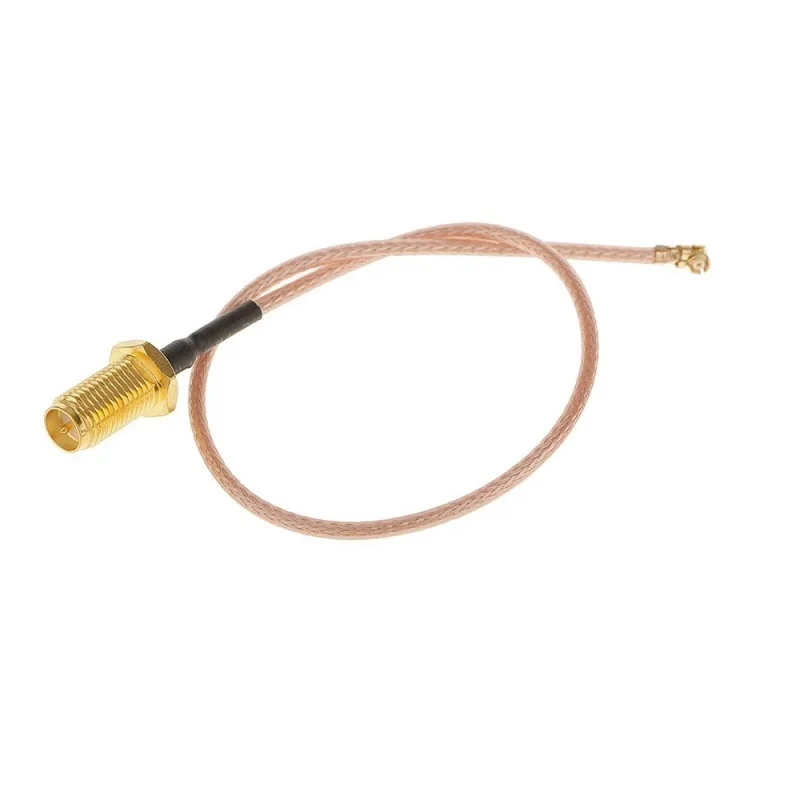

IPEX 1 to RP-SMA Female Connector Cable 15cm RG178
A 15cm RG178 coaxial cable assembly providing a high-frequency interface conversion between IPEX (MHF) and RP-SMA female connectors, essential for connecting embedded wireless modules to external antennas in compact IoT and RF designs.
Features
- Interface Conversion: Bridges the gap between board-mounted IPEX (MHF) connectors and standard RP-SMA female ports for external antennas.
- Low-Loss RG178 Coax: Utilizes 11mm diameter RG178 cable for a flexible, low-profile connection with minimal signal attenuation.
- Compact 15cm Length: Ideal for tight enclosures, allowing neat routing from a module’s edge to an antenna mount.
- Robust Mechanical Design: Features precise crimping and strain relief for reliable performance in mobile or vibration-prone applications.
- Universal RF Compatibility: Supports Wi-Fi, Bluetooth, Zigbee, LoRa, and cellular signals up to 6 GHz, making it a versatile RF accessory.
Out of stock
This IPEX to RP-SMA female pigtail is a critical RF interconnect for developers integrating wireless modules into final products. The IPEX (or MHF) connector is commonly found on compact ESP32, nRF52, and cellular modules where space is at a premium, while the RP-SMA female interface is the standard for many external Wi-Fi, GPS, or 4G antennas. The 15cm RG178 coaxial cable provides a balanced solution, offering enough length for flexible placement while maintaining signal integrity with its low-loss dielectric.
The assembly ensures reliable impedance matching (typically 50 ohms) across common IoT frequency bands, minimizing VSWR and preserving RF link budget. Its slim 11mm jacket diameter and flexible construction allow for clean routing within enclosures, making it suitable for drone telemetry, portable trackers, smart home hubs, and industrial sensor nodes where a permanent external antenna connection is required.
Additional Information
| Weight | 0.005 kg |
|---|
