IMX219 8MP 130° Wide-Angle Camera Module for Raspberry Pi 5
This 8MP Sony IMX219 camera module features a 130° wide-angle lens and MIPI CSI-2 interface, designed for high-resolution imaging and video on Raspberry Pi 5 and other compatible SBCs with a 3.3V–5V power supply.
Features
- 8MP Sony IMX219 Sensor: Captures high-resolution 3280 x 2464 still images and smooth 1080p30/720p60 video for detailed computer vision.
- 130° Wide-Angle FOV: Provides expansive coverage ideal for surveillance, robotics, and panoramic monitoring applications.
- MIPI CSI-2 Interface: Ensures fast, stable data transmission to the Raspberry Pi via a standard 15-pin ribbon cable connection.

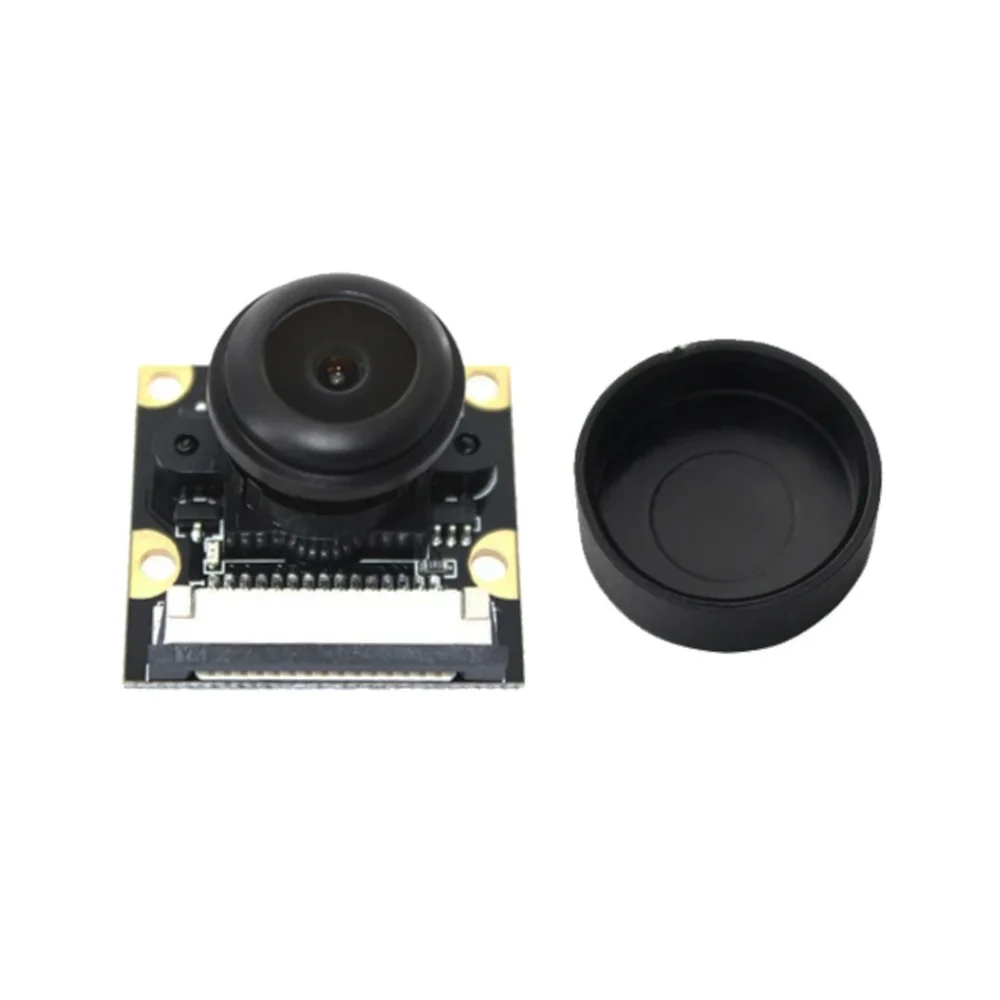

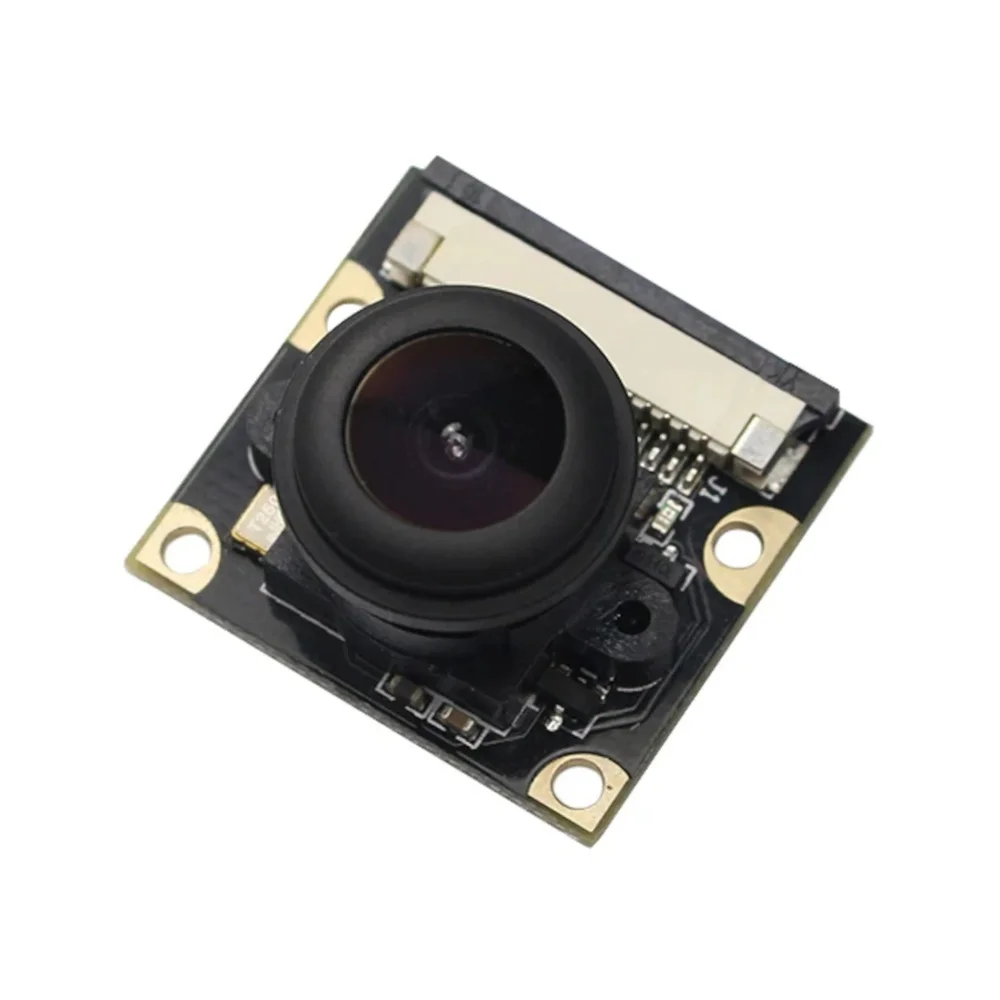

- Compact & Mountable Design: Features a 25x24mm PCB with four mounting holes for easy integration into custom enclosures and robotic platforms.
- Broad Power Compatibility: Operates from 3.3V to 5V DC, making it suitable for various Raspberry Pi and embedded system power rails.
Out of stock
This camera module integrates the Sony IMX219 CMOS sensor, delivering 8-megapixel still capture and full HD video output through a high-speed MIPI CSI-2 serial interface. The wide 130-degree field of view lens captures a broad scene, making it suitable for applications requiring extensive environmental coverage without moving parts.
The module’s compact form factor and pre-drilled mounting holes facilitate secure installation in custom builds, drones, or surveillance setups. It is powered directly from the Raspberry Pi’s 3.3V or 5V rails, simplifying system integration. While compatible with the Raspberry Pi 5 via an adapter cable, it also works with other Pi models featuring a CSI-2 port, serving as a versatile imaging solution for makers and developers.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 2.4 × 2.5 × 1.8 cm |
