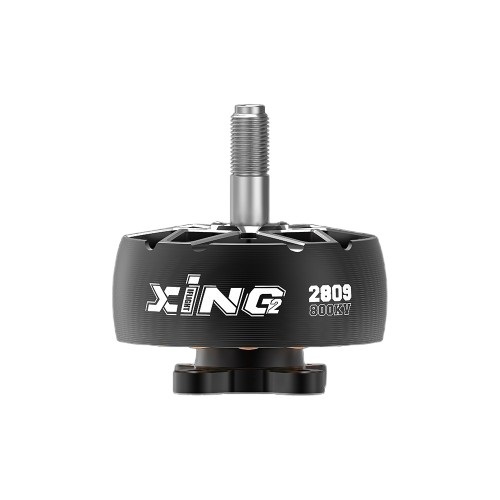

iFlight XING2 2809 FPV Motor Unibell - 800KV
The iFlight XING2 2809 is an 800KV brushless motor engineered with a unibell design for high-torque, low-KV applications. Featuring a 5mm titanium shaft and N52H curved magnets, it delivers precise, responsive thrust for 6-8S LiPo heavy-lift and industrial UAV platforms.
Features
- 800KV rating optimized for high-voltage 6-8S LiPo power systems.
- Unibell construction with 7075 aluminum for enhanced structural rigidity and heat dissipation.
- 5mm titanium alloy shaft provides maximum strength and crash resistance.
- N52H curved arc magnets reduce cogging and improve PID loop response.
- NSK 11x5x5 bearings and integrated O-ring protection ensure smooth, long-lasting operation.
Out of stock

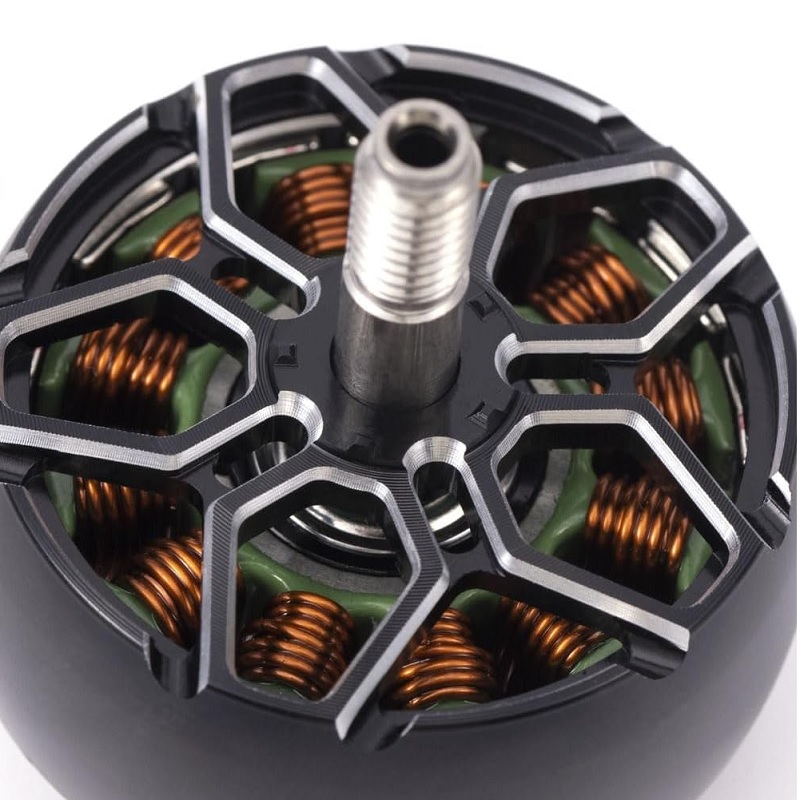

The XING2 2809 represents a significant evolution in iFlight’s motor lineup, designed for pilots requiring high torque and efficiency at lower rotational speeds. Its unibell architecture integrates the bell and base into a single machined piece, drastically improving alignment and reducing resonant vibrations that can affect flight performance. This construction is critical for maintaining stability in heavy-lift and cinematic FPV platforms where smooth operation is paramount.

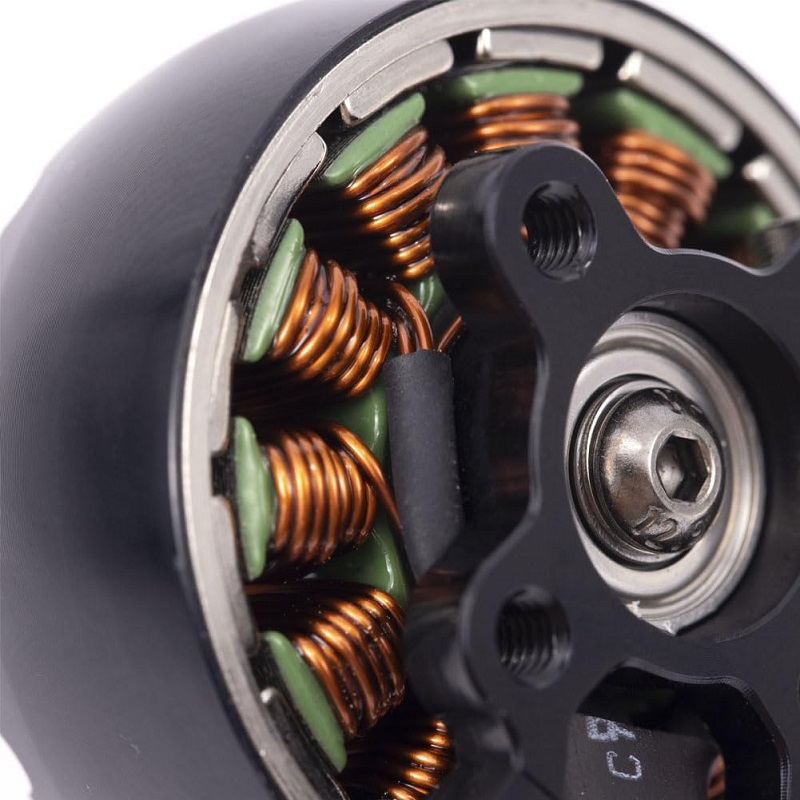

Internally, the motor utilizes a 12N14P magnetic configuration with center-slotted N52H curved magnets. This design minimizes the air gap between the stator and magnets, increasing magnetic flux density for faster acceleration and deceleration. The single-strand copper winding is optimized for low-resistance current flow, supporting peak currents up to 25.63A and a maximum power output of over 610W. Combined with the robust titanium shaft, the XING2 2809 is built to withstand the mechanical stresses of professional UAV operation.
Additional Information

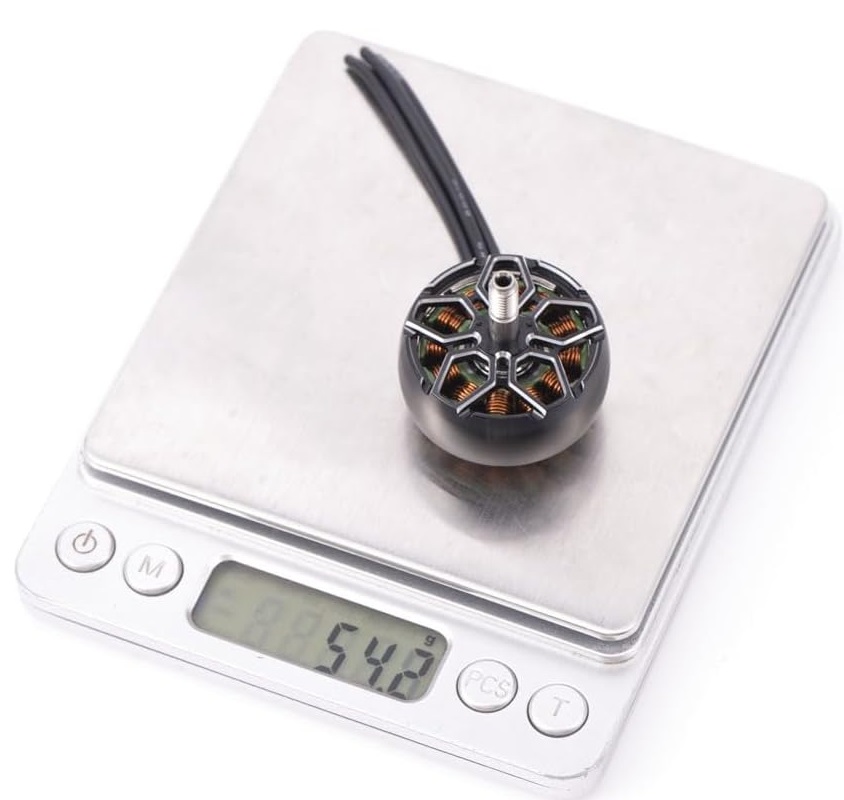

| Weight | 0.078 kg |
|---|---|
| Dimensions | 6 × 6 × 5 cm |
