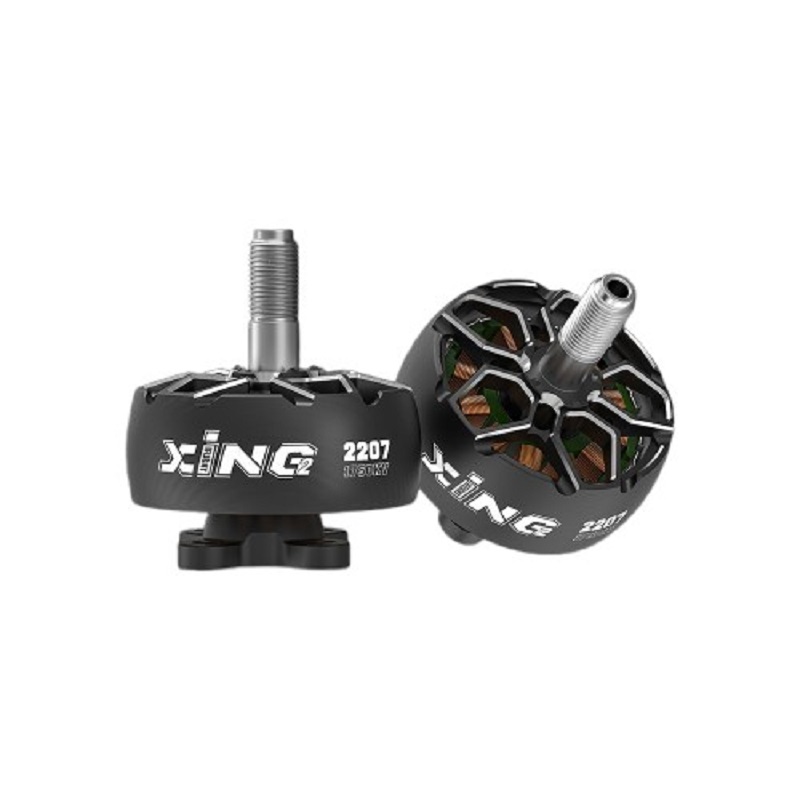

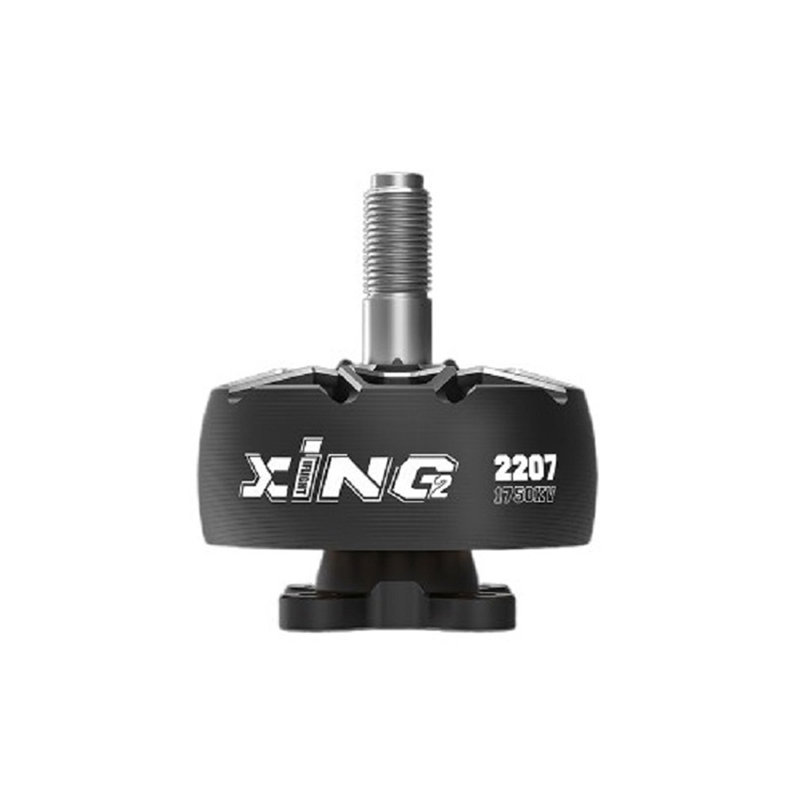

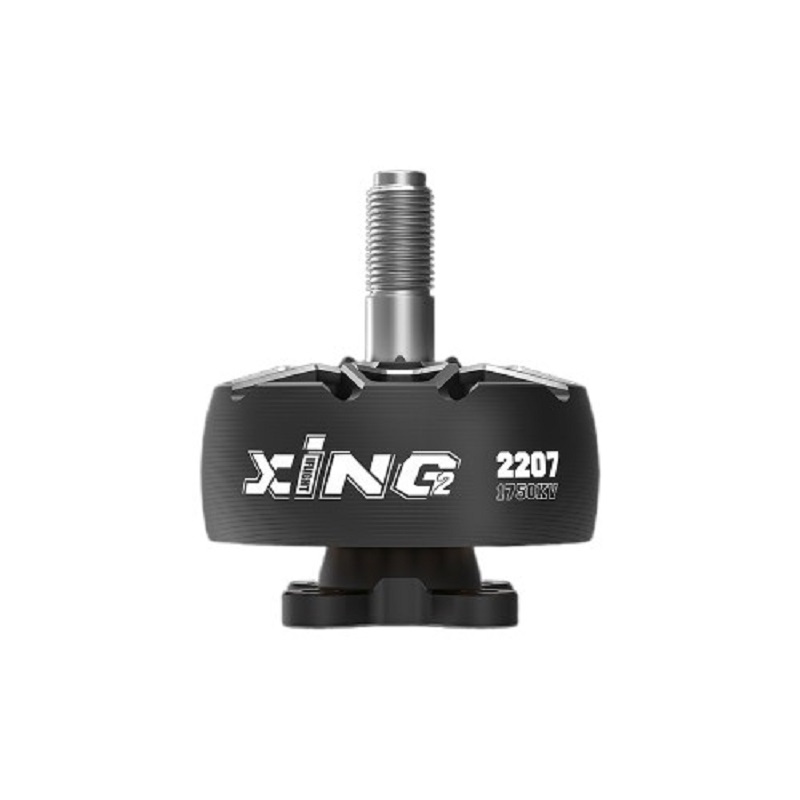

iFlight XING2 2207 Unibell FPV Motor - 1750KV - Black
The iFlight XING2 2207 1750KV brushless motor is engineered for high-performance 5-inch FPV racing and freestyle drones, featuring a durable unibell design, N52H curved magnets for rapid response, and a titanium shaft for superior crash resilience on 4S-6S LiPo systems.
Features
- 1750KV rating optimized for high-thrust 5-inch FPV builds on 4S-6S LiPo batteries.
- Unibell construction with 7075 aluminum for enhanced durability and reduced bell flex.
- Center-slotted N52H curved arc magnets for minimized magnetic gap and ultra-fast torque response.
- 5mm titanium alloy shaft and NSK 9x4x4 bearings ensure long-term reliability under high stress.
- Dynamically balanced bell and integrated O-ring bearing protection for smooth, vibration-free operation.
Out of stock
The XING2 2207 motor represents a significant evolution in iFlight’s performance motor lineup, specifically tuned for the demanding requirements of modern FPV freestyle and racing. Its core innovation lies in the center-slotted N52H curved arc magnets, which drastically reduce magnetic flux leakage and translation delay, resulting in instantaneous throttle response and a locked-in flight feel. This design, combined with precision-machined stator laminations, maximizes efficiency for greater power output and extended flight times.
Structural integrity is paramount, addressed through a robust unibell design that merges the bell and shaft connection into a single, crash-resistant unit made from 7075 aluminum. The 5mm titanium shaft provides exceptional strength against bending impacts, while the internal damping ring and protected motor wires safeguard critical components. These features collectively deliver a motor capable of sustaining high-performance maneuvers and hard crashes without compromising smoothness or longevity.
Additional Information
| Weight | 0.044 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
