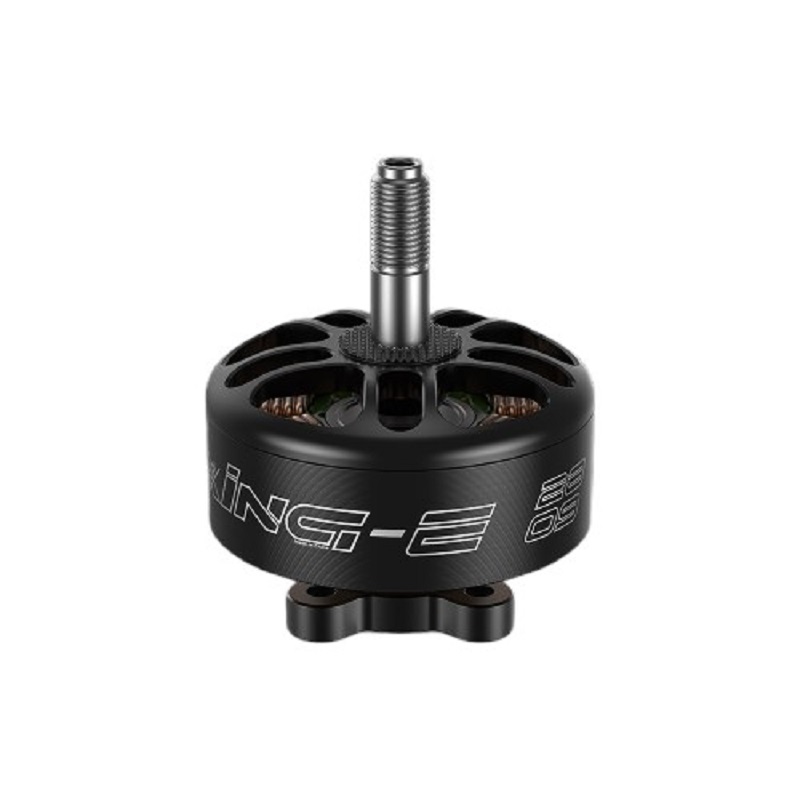

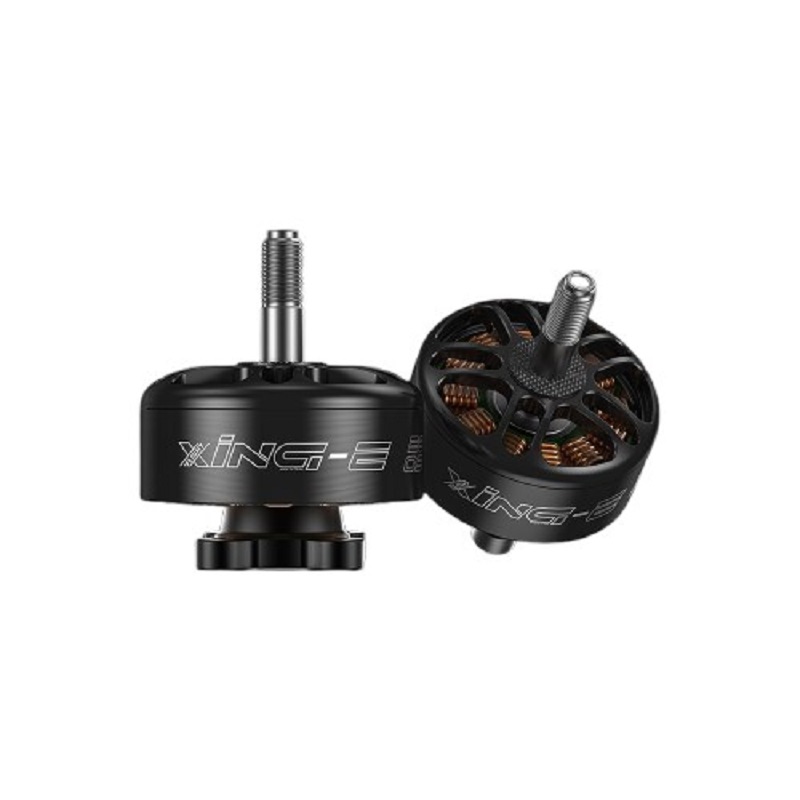

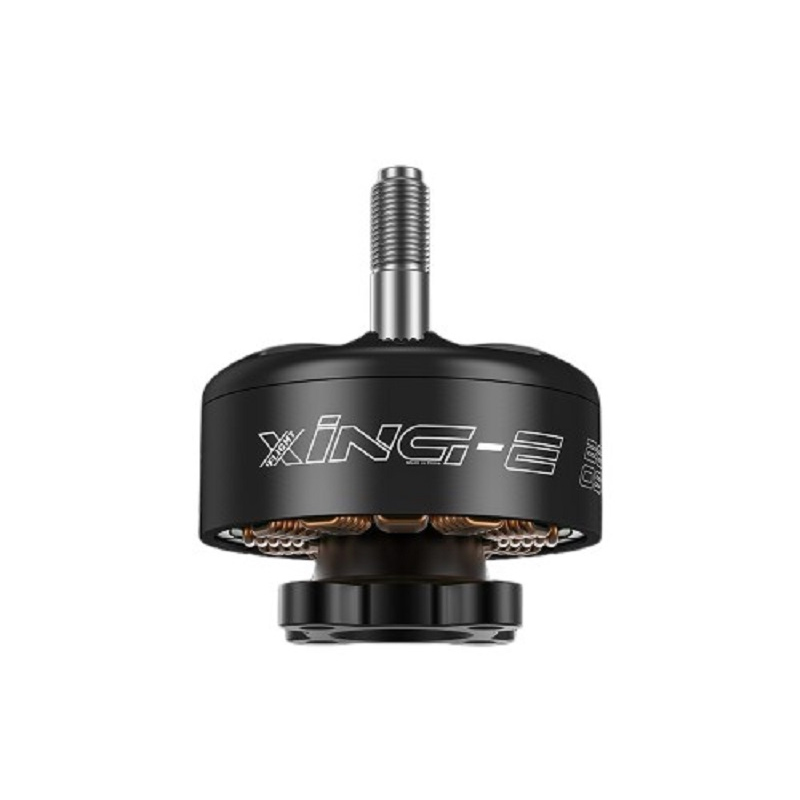

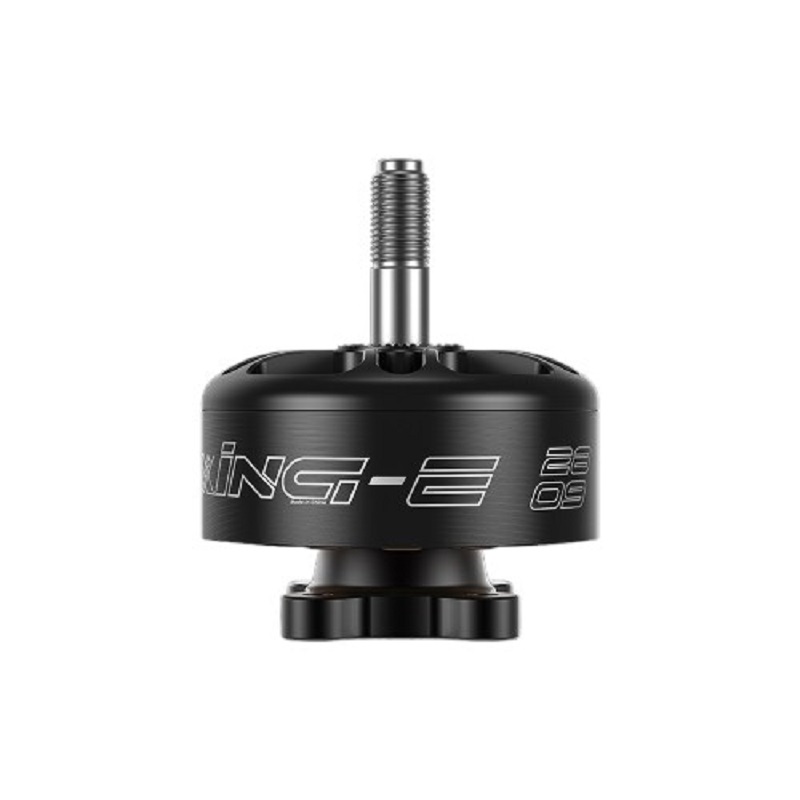

iFlight XING-E 2809 Cinelifter Motor - 800KV
The iFlight XING-E 2809 is an 800KV brushless motor engineered for heavy-lift cinematic drones, featuring a 5mm steel shaft, N52H high-temperature magnets, and a 19x19mm mounting pattern for stable, high-torque performance under demanding payloads.
Features
- 800KV rating optimized for 6S LiPo power systems and smooth, efficient thrust.
- Large 2809 stator size and N52H high-temperature magnets for maximum torque and thermal durability.
- 5mm high-strength steel shaft and 19x19mm mounting pattern for robust structural integration.
- 12N14P segmented bell rotor configuration with single-strand copper windings for efficient power delivery.
- Rated for up to 610.3W peak power and 25.63A current, suitable for professional cinelifter builds.
Out of stock
The XING-E 2809 motor from iFlight is a purpose-built propulsion unit for cinematic heavy-lift drones and professional UAV platforms. Its core design leverages a large 2809 stator diameter paired with an 800KV winding, creating an ideal balance of high torque and manageable RPM for carrying camera gimbals and other payloads on 6S battery systems. The mechanical construction prioritizes longevity under stress, utilizing a segmented bell rotor and curved N52H magnets for consistent magnetic field strength even during extended, high-temperature operation.
Electrical and thermal management is integral to its performance profile. The single-strand copper windings minimize resistance for efficient power transfer, while the overall design promotes passive cooling to manage the 610.3W peak power dissipation. With a peak current rating of 25.63A, this motor is compatible with high-output 40A+ ESCs, forming a reliable powertrain for demanding aerial cinematography and industrial drone applications where smooth, vibration-free thrust is critical.
Additional Information
| Weight | 0.077 kg |
|---|---|
| Dimensions | 7 × 6 × 5 cm |
