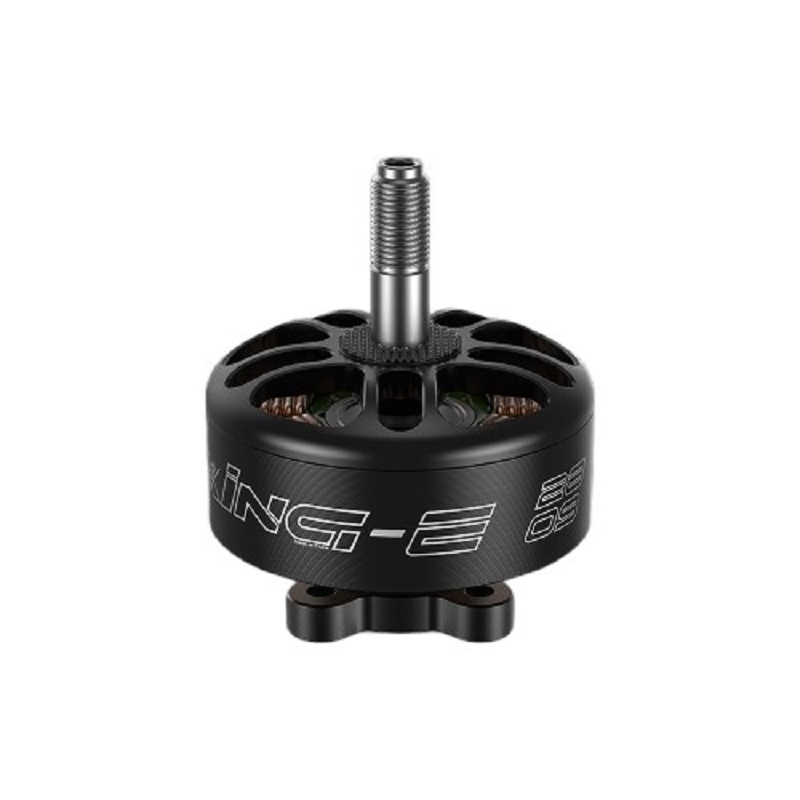

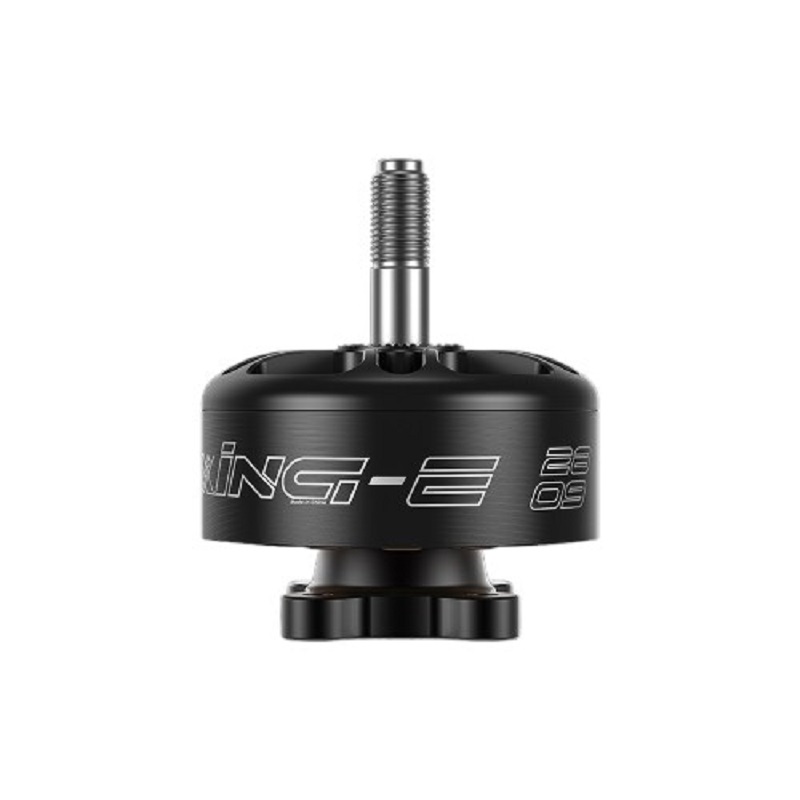

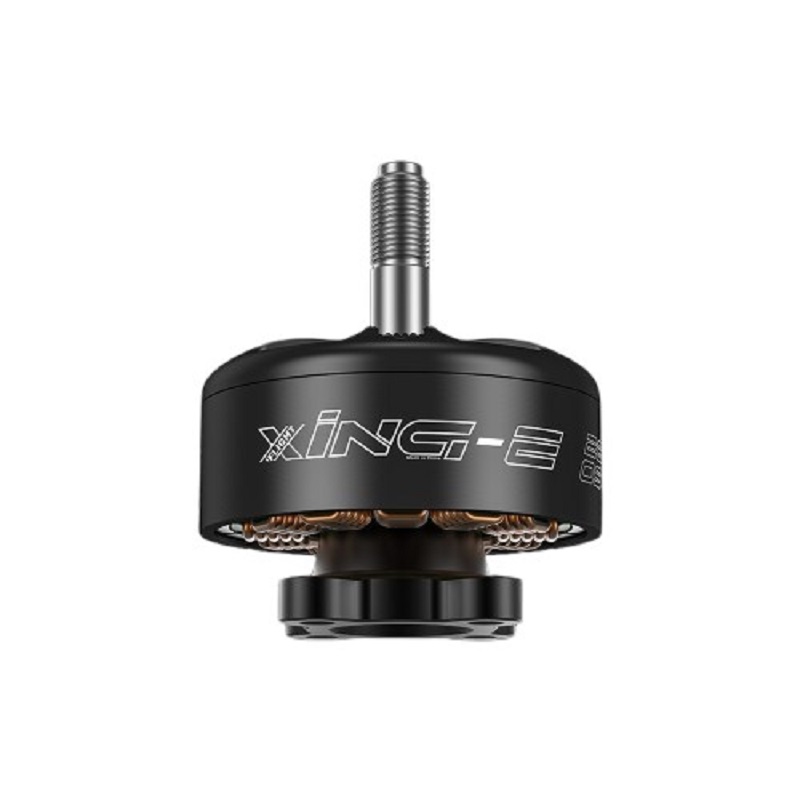

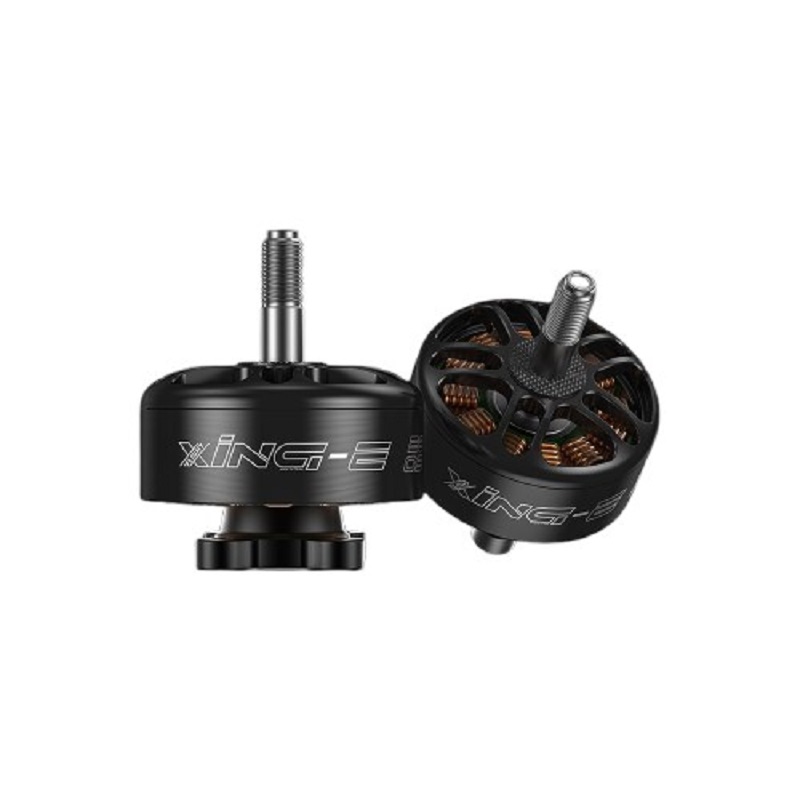

iFlight XING-E 2809 Cinelifter Motor 1250KV
The iFlight XING-E 2809 is a 1250KV brushless motor engineered for heavy-lift cinematic drones, featuring a large stator, N52H high-temperature magnets, and a 5mm steel shaft for reliable power delivery and stability under payload.
Features
- 1250KV rating optimized for 6S LiPo power systems in heavy-lift applications.
- Large 2809 stator size (28mm diameter, 9mm height) for enhanced torque and smooth thrust.
- High-strength 5mm steel shaft and N52H high-temperature curved magnets for durability.
- 19x19mm mounting hole pattern for compatibility with standard cinelifter and heavy-lift frames.
- Single-strand copper windings and efficient cooling design manage heat during extended flights.
Out of stock
The XING-E 2809 motor from iFlight is purpose-built for the demands of professional cinematic and heavy-lift drone platforms. Its 2809 stator dimensions provide the necessary magnetic volume to generate consistent, high-torque thrust, essential for carrying gimbals and camera payloads smoothly. The motor’s electrical and thermal design prioritizes reliability under continuous high-load conditions.
Constructed with a segmented rotor bell, high-quality bearings, and a robust 5mm shaft, the motor ensures precise rotation and long-term mechanical integrity. The 12N14P magnetic configuration and optimized single-strand windings work in concert to deliver efficient power conversion from 6S battery systems, making it a core component for builders requiring dependable, high-performance propulsion.
Additional Information
| Weight | 0.061 kg |
|---|
