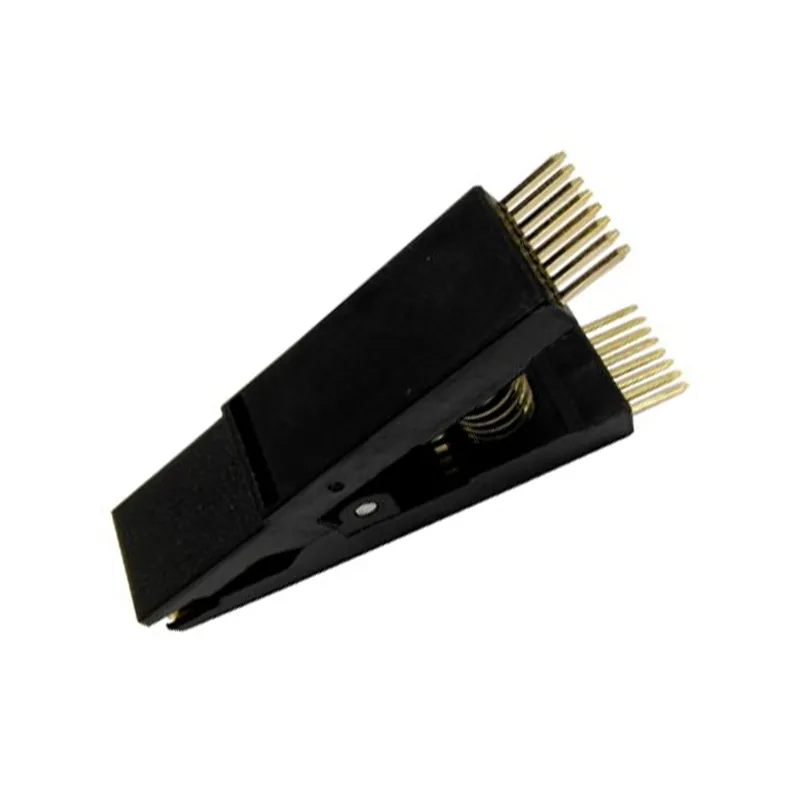

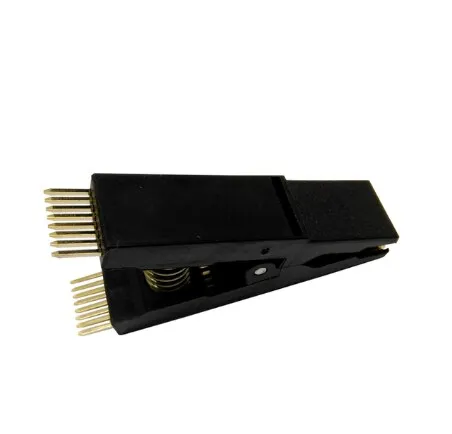

IC Test Clamp SOP/SOIC/DIP8-16 Programmer Clip - No Cable

₹197.00 (Inclusive of all taxes)
Out of Stock

This Programmer Testing Clip provides a quick, solder-free connection for programming and testing SOP8, SOP16, SOIC8, SOIC16, DIP8, and DIP16 IC packages. It is designed for seamless integration with IC programmers or testing equipment, enabling efficient reading, writing, and debugging directly on your circuit board.

Features

  • Solder-free IC connection for rapid programming and testing.
  • Universal compatibility with SOP, SOIC, and DIP packages (8-16 pins).
  • Durable and stable connection ensures reliable performance.
  • Ideal for microcontrollers, EEPROMs, and flash memory.
  • Compact design allows access in confined spaces.

Out of stock

Description

The Programmer Testing Clip IC Test Clamp is an essential tool for efficient, hassle-free testing and programming of integrated circuits. It eliminates the need for soldering, allowing users to quickly connect to various IC packages, including SOP8, SOP16, SOIC8, SOIC16, DIP8, and DIP16. This design significantly reduces setup time and prevents potential damage from heat during traditional soldering processes.

Built for reliability, this clamp ensures a secure and stable connection, crucial for consistent data transfer during programming or accurate signal acquisition during testing. Its compact and user-friendly design facilitates access to ICs even in tight spaces, making it suitable for a wide array of applications from embedded systems development to quick diagnostics. When paired with an IC programmer or testing equipment, this clip enables direct reading, writing, and debugging of ICs on the circuit board, streamlining development workflows.

Key Features

  • **Quick, Solder-Free Connection**: Easily clip onto IC pins, eliminating the need for soldering and saving time.
  • **Universal IC Compatibility**: Supports a wide range of ICs including SOP8, SOP16, SOIC8, SOIC16, DIP8, and DIP16 packages.
  • **Durable and Reliable**: Constructed for longevity, ensuring a secure and stable connection for consistent performance.
  • **Compact and User-Friendly**: Designed for easy access to ICs in confined spaces, simplifying testing and debugging.
  • **Efficient Testing & Programming**: Enables seamless reading, writing, and debugging of ICs directly on the circuit board when used with programmers.
  • **Versatile Application**: Suitable for embedded systems development, diagnostics, and working with various memory types.

Applications

  • Embedded systems development and debugging.
  • Quick diagnostics and fault finding on PCBs.
  • Programming microcontrollers, EEPROMs, and flash memory directly on board.
  • Prototyping and testing new circuit designs.
  • Educational projects involving IC interaction.

Technical Specifications

Item TypeAccessory
Connector TypeTest Clip
Pin FormatSOIC / SOP / DIP
ColorBlack
MaterialPLA+Copper
Length50 mm
Width25 mm
Weight25 g

Frequently Asked Questions

What IC package types are compatible with this programmer testing clip?

This test clamp is compatible with a wide range of IC packages, including SOP8, SOP16, SOIC8, SOIC16, DIP8, and DIP16. It provides a versatile solution for connecting to various microcontrollers, EEPROMs, and flash memory chips directly on the circuit board for programming and testing purposes.

How does this clip achieve a solder-free connection for ICs?

The clip uses spring-loaded pins that firmly grip the individual legs of the IC, establishing electrical contact without the need for soldering. This mechanism allows for quick attachment and removal, preserving the integrity of the PCB and IC, which is ideal for rapid prototyping, debugging, and production testing.

What kind of equipment is this IC test clamp typically used with?

This IC test clamp is designed to be used in conjunction with various IC programmers, debuggers, logic analyzers, and multimeters. It serves as an interface between the test equipment and the target IC, facilitating reading, writing, and debugging operations without disturbing the IC's placement on the circuit board.

What materials are used in the construction of this programmer testing clip?

The programmer testing clip is constructed from a combination of PLA (Polylactic Acid) plastic for its main body and copper for the contact pins. This material selection ensures both durability and reliable electrical conductivity. The robust build quality guarantees a secure and stable connection for consistent performance during testing and programming tasks.

Package Includes

  • 1 x Programmer Testing Clip IC Test Clamp

Additional Information

Weight 0.025 kg
Dimensions 5 × 2.5 × 1 cm
