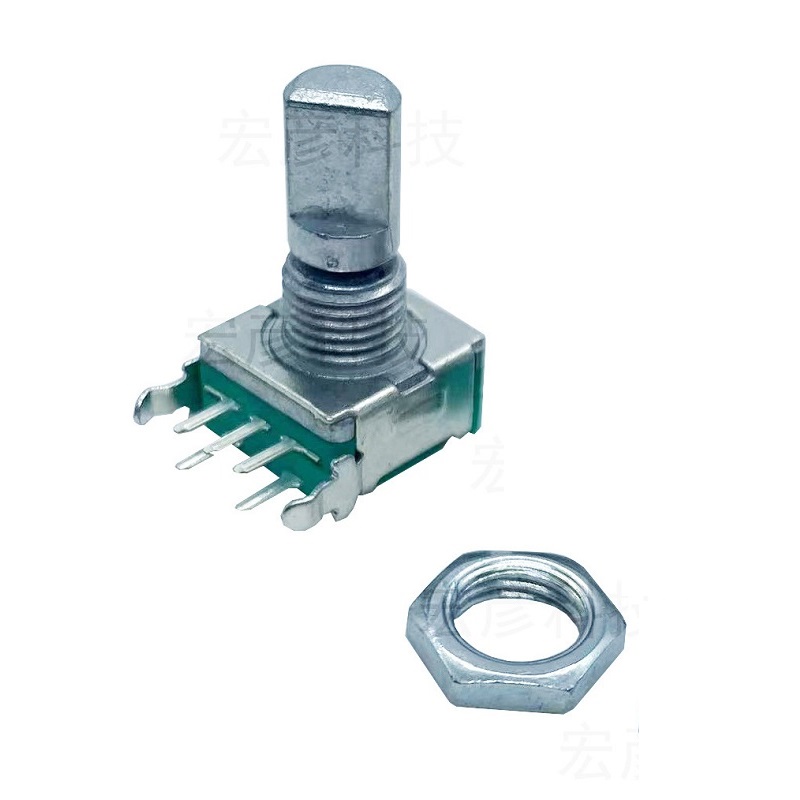

Hongyan Technology EC11J 5DM15P1ZD15F7 Horizontal Encoder with Switch 15mm - 5V Incremental Pulse Rotary
The Hongyan Technology EC11J 5DM15P1ZD15F7 is a compact, 5V incremental rotary encoder with an integrated push-button switch, featuring 15 pulses per detent for precise position control. Its horizontal mounting design and standard 15mm shaft make it compatible with a wide range of user interface panels, industrial controllers, and DIY electronics projects.
Features
- Incremental rotary encoder with integrated push-button switch for dual-function control.
- Delivers 15 pulses per detent for high-resolution, tactile position feedback.
- Operates on a standard 5V DC supply, compatible with Arduino, Raspberry Pi, and other microcontrollers.
- Compact dimensions of 12mm x 11.7mm with a 15mm shaft for space-constrained panel designs.
- Robust construction rated for an operating temperature range of -30°C to +80°C.
Out of stock
The EC11J 5DM15P1ZD15F7 is an electromechanical incremental encoder that translates rotary motion into a series of digital pulses, enabling precise measurement of rotation angle, speed, and direction. The integrated momentary switch provides a secondary input channel, activated by pressing down on the shaft, making it ideal for menu navigation, parameter selection, and mode switching in embedded systems.
Built for reliability, its mechanical design ensures consistent tactile feedback and long operational life, suitable for high-cycle applications. The encoder outputs two square wave signals in quadrature (90 degrees out of phase), allowing a connected microcontroller to determine both the amount and direction of rotation through simple digital input pins.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.3 cm |
