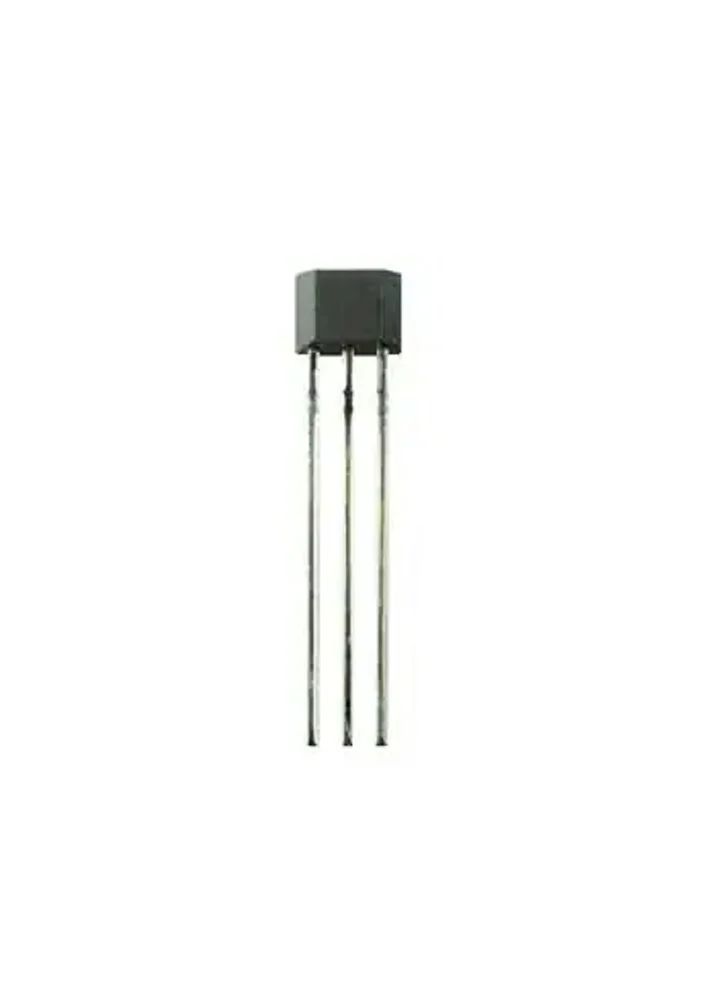

Honeywell SS441A Unipolar Hall Effect Magnetic Sensor - TO-92 Package
The Honeywell SS441A is a unipolar Hall-effect magnetic sensor in a TO-92 package, designed for through-hole PCB mounting. It operates from a 4.5 to 10.5 VDC supply and features a precise 55 to 115 Gauss operating point, making it ideal for position sensing and proximity detection in automotive, industrial, and consumer electronic systems.
Features
- Unipolar magnetic sensing with an operating point range of 55 G to 115 G.
- Wide operating voltage range of 4.5 VDC to 10.5 VDC for flexible system integration.
- Robust TO-92 package rated for an extended temperature range of -40°C to +150°C.
- Low power consumption with a typical operating current of 10 mA.
- Output voltage up to 12 V with a maximum output current of 20 mA.
Out of stock
The Honeywell SS441A is a solid-state Hall-effect sensor engineered for reliable unipolar magnetic field detection. Its operation is based on the Hall effect principle, where a voltage proportional to the applied magnetic field is generated, providing a digital output signal upon reaching the preset threshold. This design ensures stable and repeatable switching for precise position and proximity sensing.
Housed in a durable TO-92 package, the sensor is built to withstand harsh environmental conditions, including a wide operating temperature range from -40°C to +150°C. Its through-hole mounting design facilitates easy and secure integration onto printed circuit boards (PCBs), making it suitable for automated assembly processes and space-constrained applications.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
