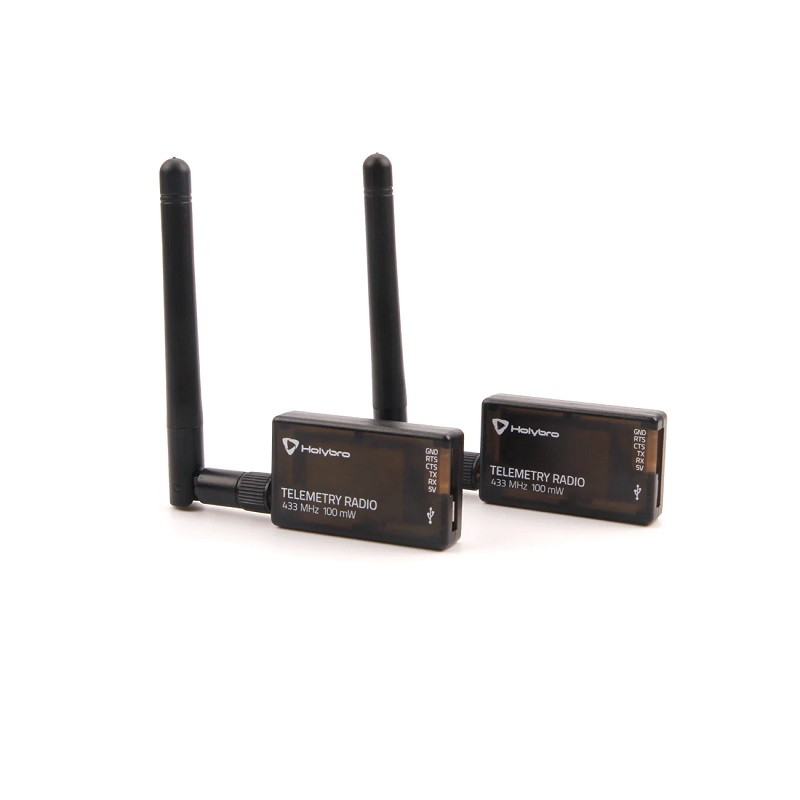

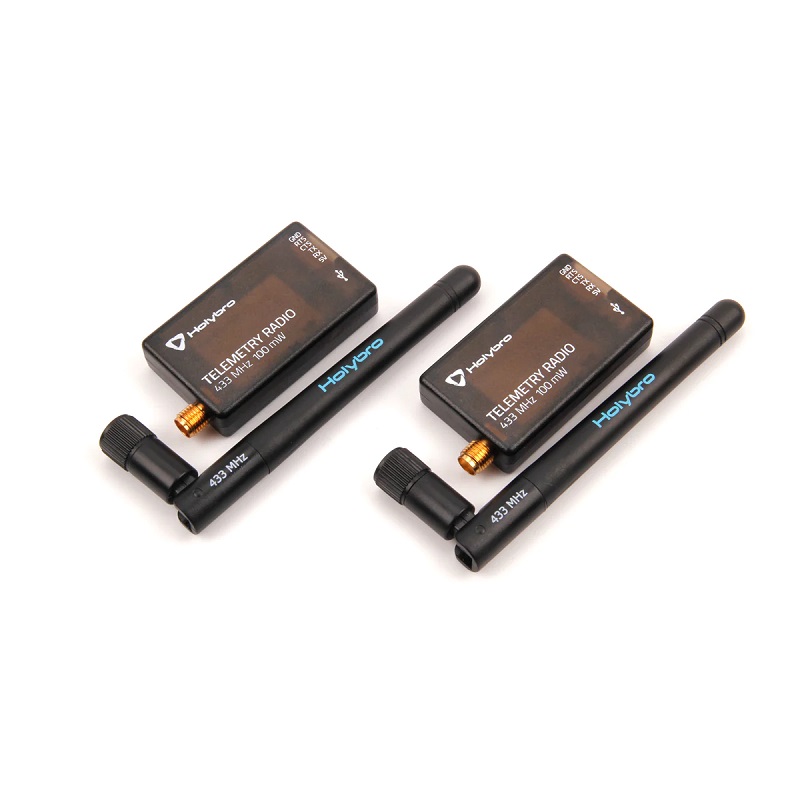

Holybro Sik Telemetry Radio V3 100 mW 433 MHz
The Holybro Sik Telemetry Radio V3 is a 433 MHz, 100 mW open-source radio module designed for establishing MAVLink telemetry links between Pixhawk-standard flight controllers and ground control stations like Mission Planner, QGroundControl, and APM Planner.
Features
- 433 MHz frequency with 100 mW output power for regional compliance
- Open-source SiK firmware optimized for reliable MAVLink packet transmission
- Plug-and-play compatibility with Pixhawk-standard autopilots via 6-pin JST-GH connector
- Features Frequency Hopping Spread Spectrum (FHSS) and configurable duty cycle
- Includes Micro-USB port with Type-C adapter cable for ground station configuration
Out of stock
The Holybro Sik Telemetry Radio V3 provides a robust, open-source wireless telemetry solution for UAVs. Its design focuses on reliable, long-range communication using the SiK firmware stack, which includes error correction capable of recovering up to 25% of bit errors. The module supports Frequency Hopping Spread Spectrum (FHSS) to mitigate interference and offers a configurable duty cycle to adapt to local regulatory requirements.

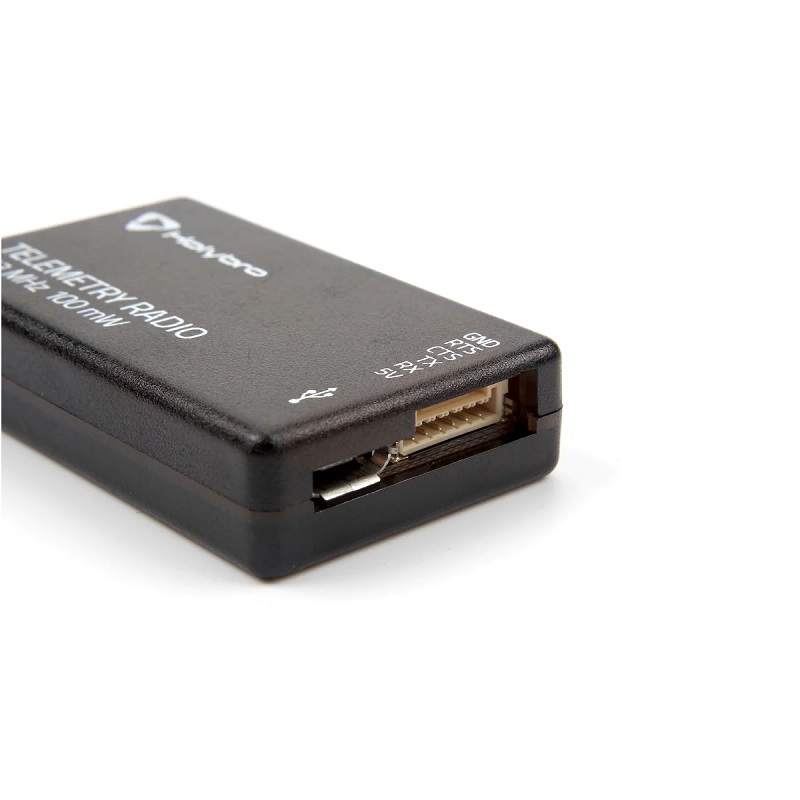

Engineered for seamless integration, the radio interfaces via a 3.3V UART and a 6-position JST-GH connector, making it directly compatible with a wide range of flight controllers running ArduPilot or PX4. The interchangeable air and ground unit design simplifies setup, allowing either module to function as transmitter or receiver based on configuration within your ground control software.
Additional Information
| Weight | 0.127 kg |
|---|---|
| Dimensions | 11 × 13 × 5 cm |
