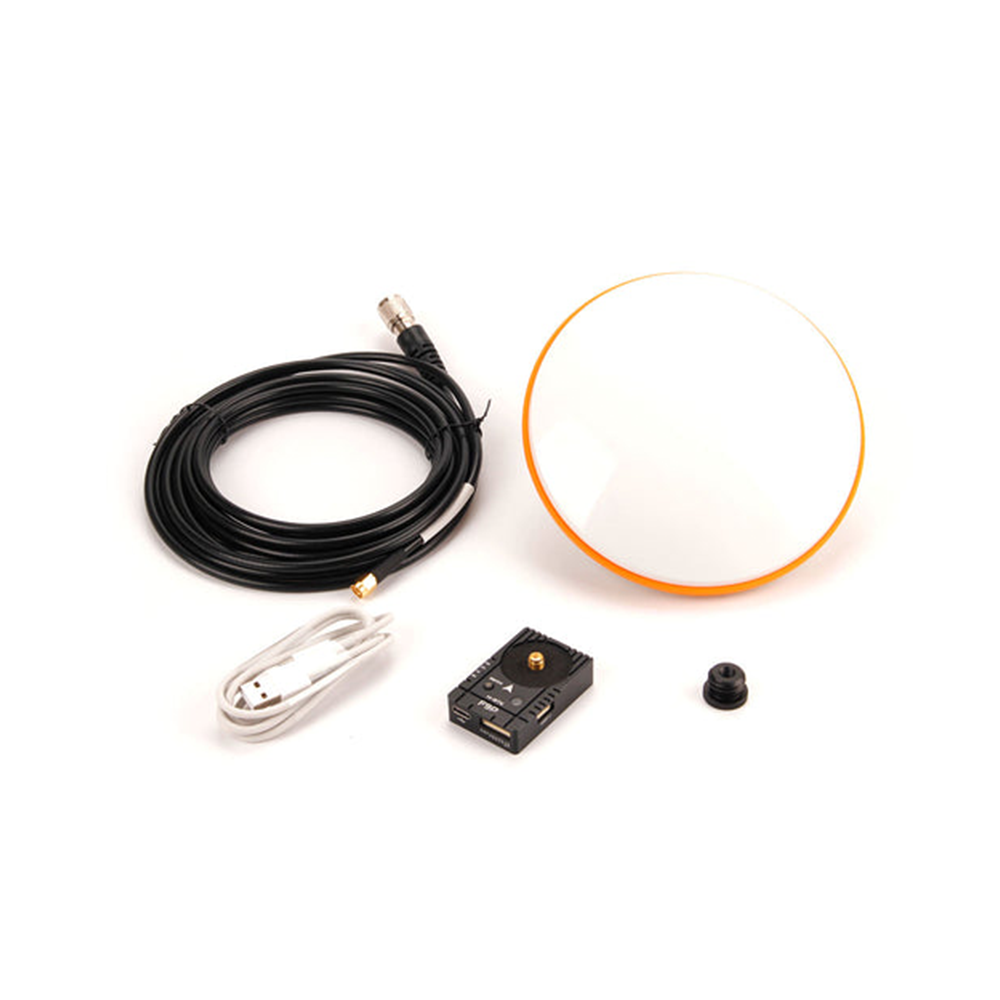

Holybro H-RTK F9P Base Station

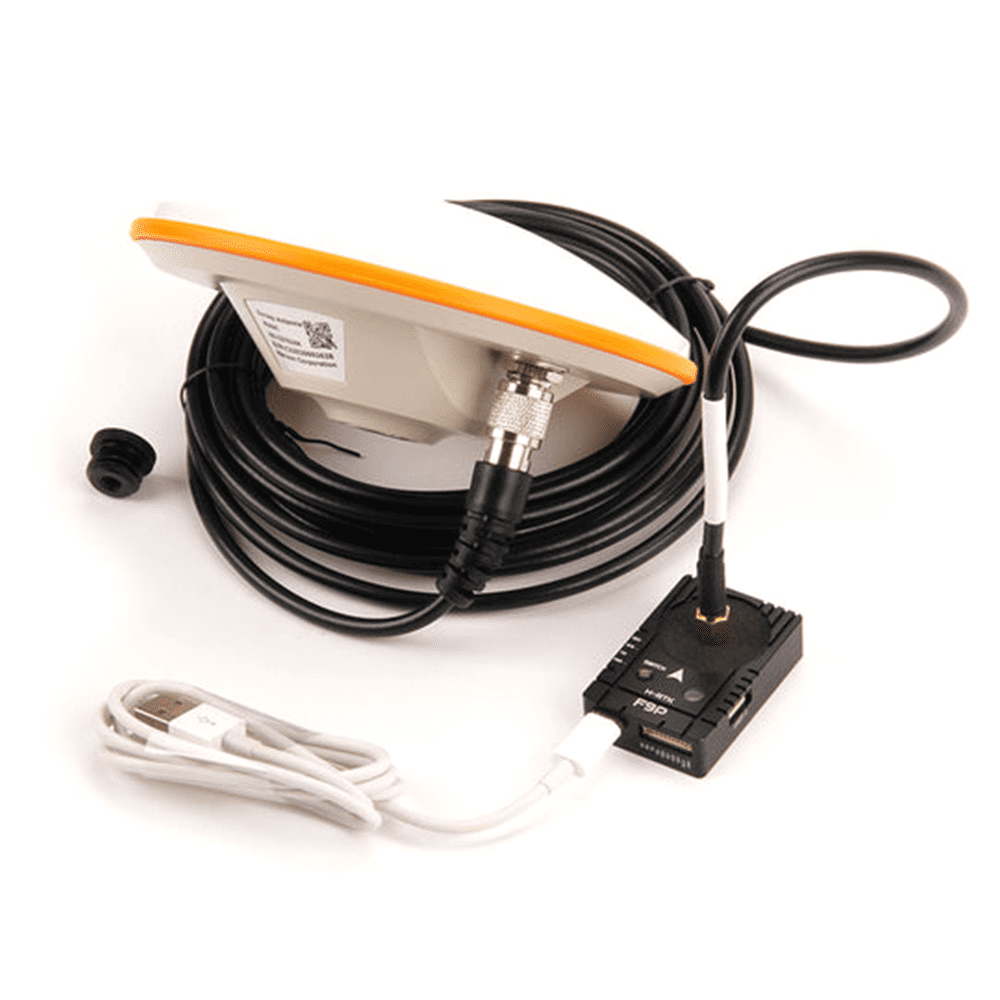

Holybro H-RTK F9P Base Station - Image 2
SKU: DRFC-2121
📋 GST Invoice Available

Holybro H-RTK F9P Base Station

₹73,099.00 (Inclusive of all taxes)
Out of Stock

The Holybro H-RTK F9P Base Station is a high-precision GNSS positioning system featuring a multi-band u-blox ZED-F9P module and IST8310 compass, delivering centimeter-level RTK accuracy for professional UAV navigation and mapping applications.

Features

  • Multi-band RTK receiver supporting GPS, GLONASS, Galileo, and BeiDou constellations.
  • Centimeter-level positioning accuracy for high-dynamic UAV and mapping applications.
  • Powered by the u-blox ZED-F9P module with integrated IST8310 compass.
  • Includes a high-gain active antenna with 5m SMA-to-TNC connecting cable.
  • Designed for seamless integration with PX4 (v1.14+) and ArduPilot (v4.4.0+) firmware.

Out of stock

Description

The Holybro H-RTK F9P Base Station is engineered for professional-grade differential GNSS positioning, utilizing the advanced u-blox ZED-F9P chipset to deliver multi-band, multi-constellation reception. This system achieves rapid convergence times and maintains reliable centimeter-level accuracy even in highly dynamic flight conditions, making it ideal for precision agriculture, surveying, and autonomous drone operations.

Its robust design incorporates an IST8310 magnetometer for enhanced heading data and features a tri-color LED status indicator alongside an integrated safety switch for operational convenience. The unit is supplied with a high-performance active antenna, providing a peak gain of 5.5dBi and low-noise amplification to ensure strong signal reception in challenging environments.

Key Features

  • Multi-band u-blox ZED-F9P GNSS module supports concurrent GPS, GLONASS, Galileo, and BeiDou signals.
  • Integrated IST8310 compass provides accurate magnetic heading data for full navigation solutions.
  • High-gain active antenna with 40dB LNA ensures superior signal reception and low-noise performance.
  • Tri-color LED and integrated safety switch offer clear status indication and convenient power control.
  • Firmware-compatible with leading flight stacks including PX4 v1.14+ and ArduPilot v4.4.0+.
  • Compact and durable board design measures 34.8 x 52.7 x 12.9mm for easy integration into custom setups.

Applications

  • Precision agriculture drones for automated crop spraying and field mapping.
  • Surveying and mapping UAVs requiring centimeter-accurate geotagging.
  • Autonomous drone platforms for infrastructure inspection and data collection.
  • Research and development vehicles for high-precision navigation and control algorithms.
  • Cinematic drone systems where precise, repeatable flight paths are essential.

Technical Specifications

GNSS ConstellationsGPS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1; Galileo E1-B/C, E5b
Moduleu-blox ZED-F9P
CompassIST8310 Magnetometer
Peak Antenna Gain5.5 dBi
LNA Gain40 ±2 dB
Antenna ConnectorsBoard: SMA Female; Antenna: TNC Female
Cable Included5m Male-Male SMA-to-TNC
Default Baud Rate115200 bps at 5Hz (configurable)
Operating Voltage4.75V - 5.25V
Current Consumption~250 mA
Board Dimensions34.8 x 52.7 x 12.9 mm
Antenna Diameter152 mm
Antenna Height62.2 mm
Unit Weight469 g

Frequently Asked Questions

What flight controller firmware is the Holybro H-RTK F9P Base Station compatible with?

The H-RTK F9P Base Station is fully compatible with PX4 firmware version 1.14 and later, as well as ArduPilot firmware version 4.4.0 and later. The tri-color LED status indicator driver is supported in these versions, ensuring proper system integration and status reporting for autonomous navigation setups.

What is the operating voltage and power requirement for the H-RTK F9P unit?

The unit operates on a strict 5V power supply, with a voltage range of 4.75V to 5.25V. It draws approximately 250mA of current. It is critical to use a clean, regulated 5V BEC or power source to ensure stable operation and prevent damage to the sensitive GNSS and compass components.

Does the package include everything needed to set up the RTK base station?

Yes, the package includes the Holybro H-RTK F9P base station board, a high-gain active antenna with a peak gain of 5.5dBi, and a 5-meter male-to-male SMA-to-TNC connecting cable. You will need to provide a 5V power source and integrate the unit with your compatible flight controller running supported firmware.

Package Includes

  • 1 x Holybro H-RTK F9P Base Station Board
  • 1 x High-Gain Active Antenna
  • 1 x 5m Male-Male SMA-to-TNC Connecting Cable

Additional Information

Weight 0.81 kg
Dimensions 20 × 20 × 15 cm
