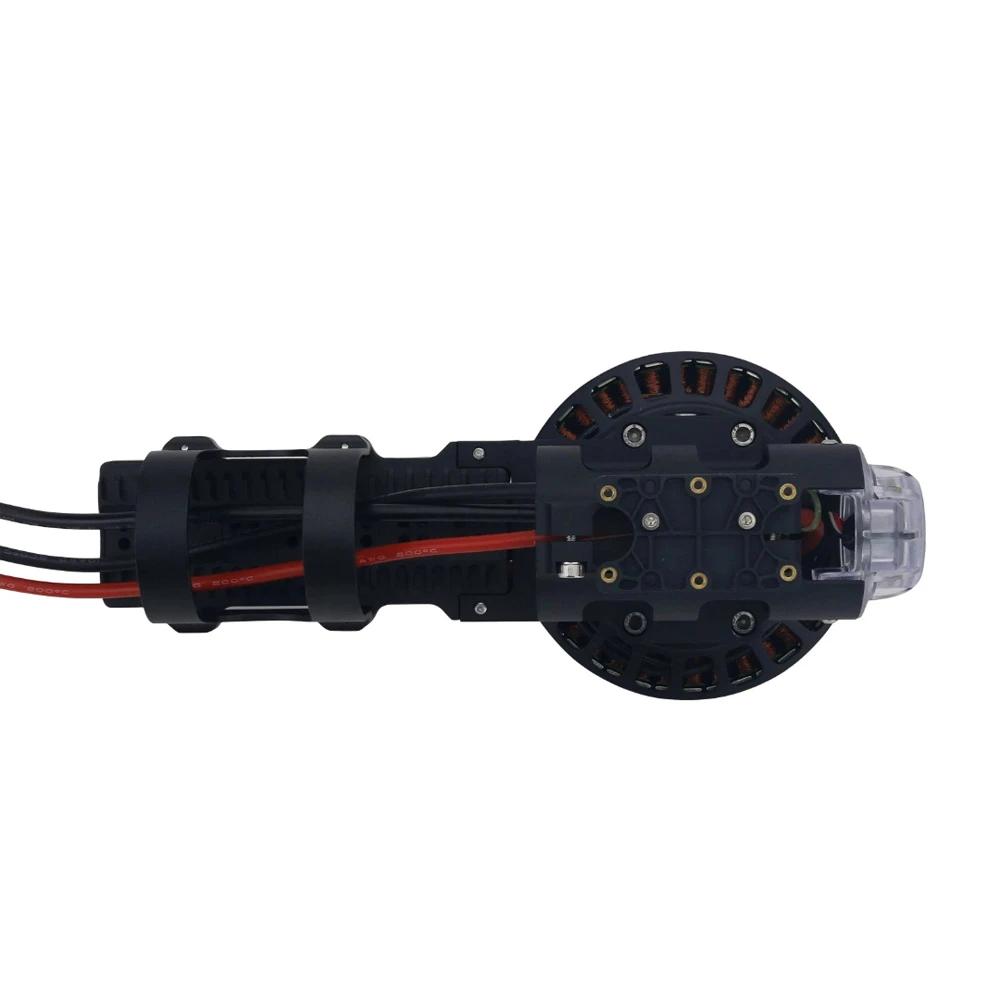

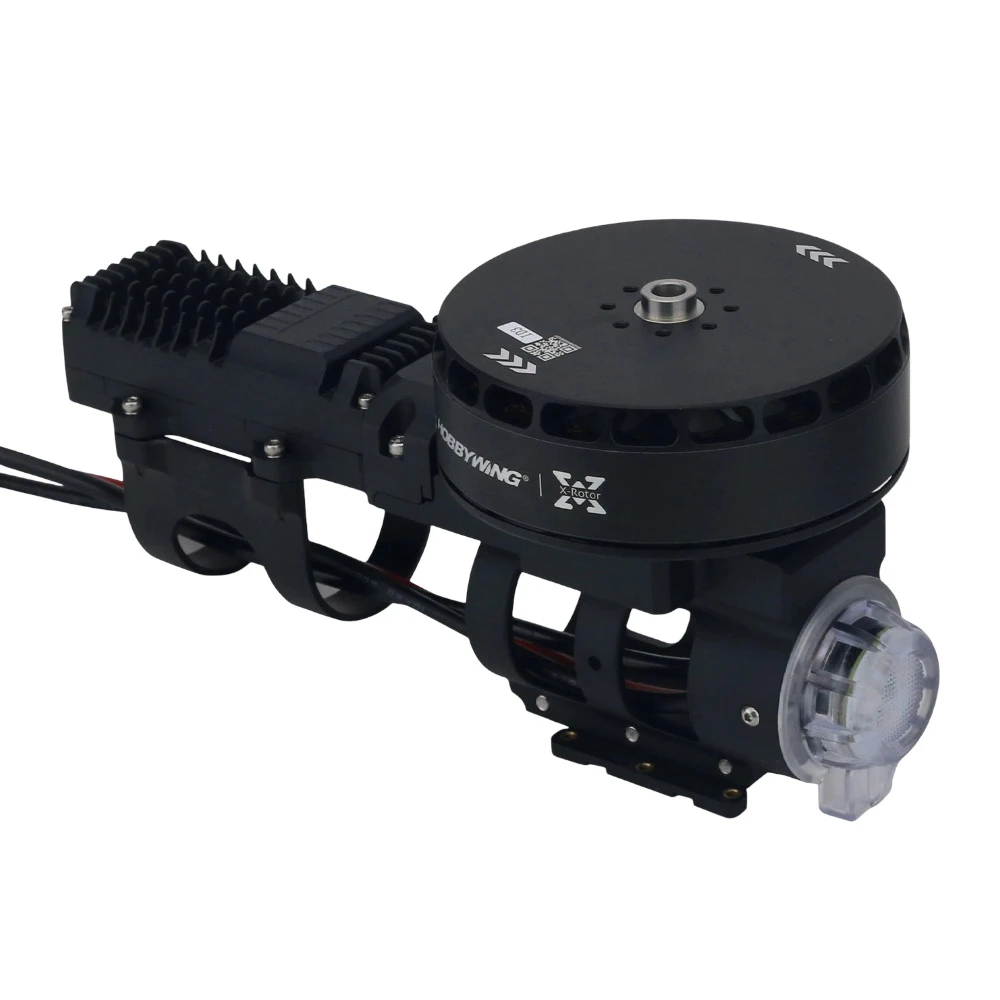

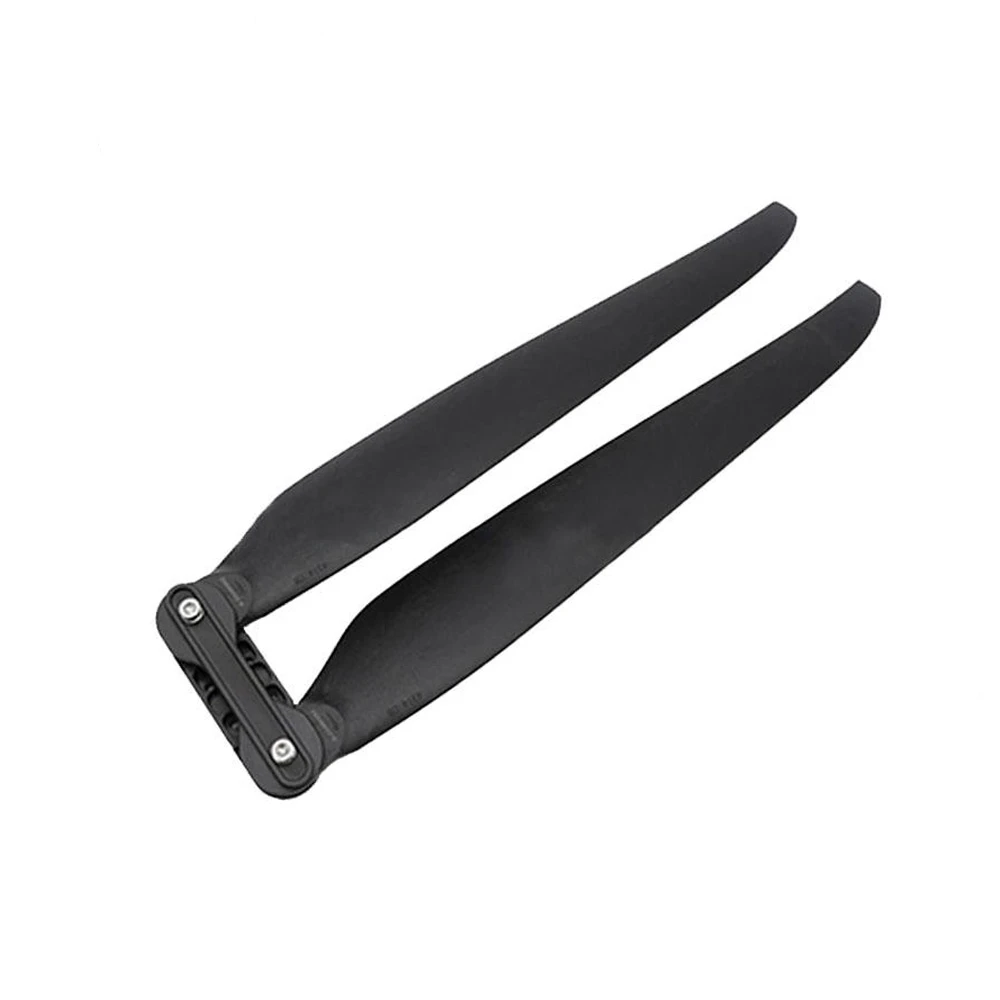

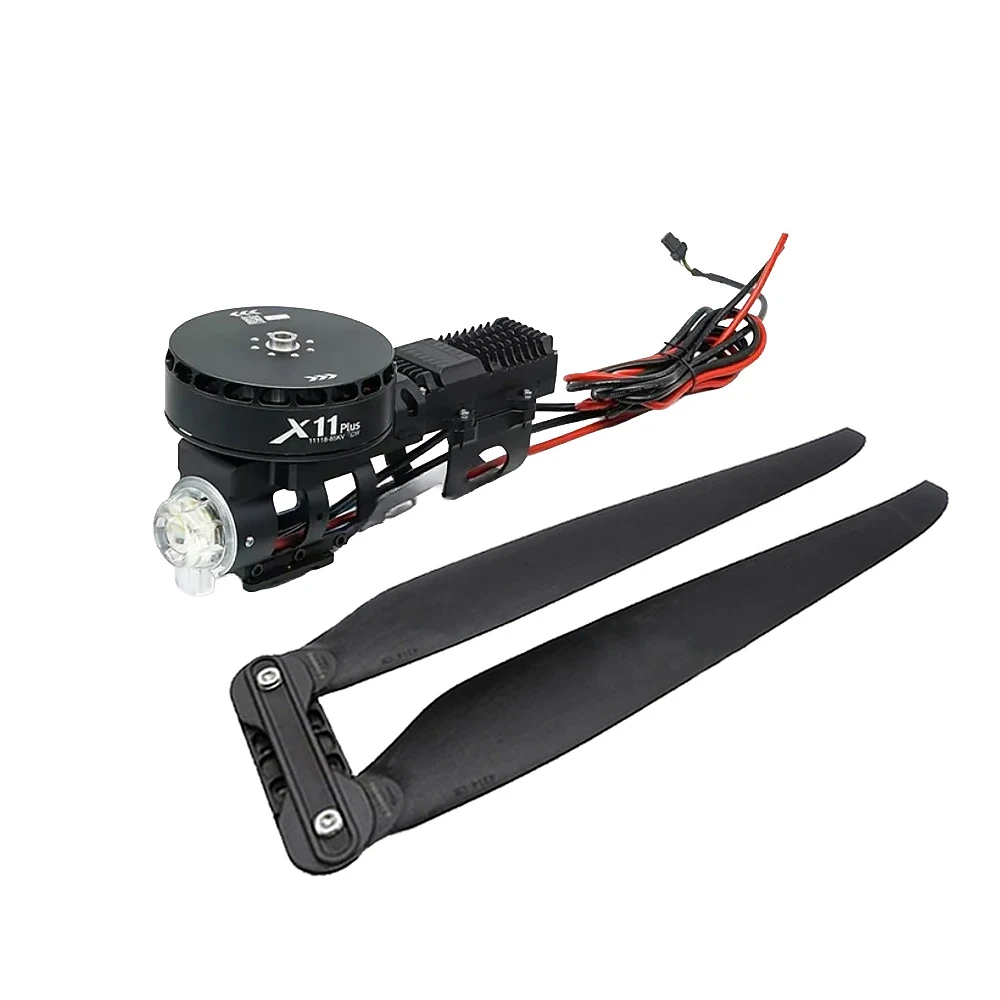

Hobbywing X11 Plus Motor with 4314 Propeller CW
The Hobbywing X11 Plus Motor with 4314 Propeller CW is a high-thrust power system engineered for heavy-lift UAVs, operating on 12–14S LiPo batteries and delivering up to 37.5kg of thrust per rotor with integrated CAN and PWM communication for precise control.
Features
- Delivers maximum thrust of 37.5kg per rotor at 46V for demanding payloads.
- Operates on 12–14S LiPo battery systems with a peak input current of 150A.
- Features dual CAN and PWM communication for flexible and precise throttle control.
- IPX6-rated construction provides robust protection against dust and water ingress.
- Integrated fault storage system aids in rapid diagnostics and maintenance.
Out of stock
The Hobbywing X11 Plus Motor is engineered for industrial-grade UAV applications requiring exceptional power and reliability. Its 85 KV rating is optimized for 12–14S high-voltage LiPo systems, enabling efficient operation with large 43×14-inch propellers. The motor’s advanced thermal management and structural design ensure sustained performance under continuous high-load conditions typical in agricultural spraying, surveying, and heavy cargo transport.
This system incorporates a comprehensive suite of intelligent protections, including over-current, stall, and voltage safeguards, to enhance operational security. The dual CAN and PWM signal support allows for seamless integration with a wide range of flight controllers and autopilot systems, providing stable flight performance even in environments with limited GPS coverage. The built-in diagnostic logging facilitates proactive maintenance and reduces downtime.
Additional Information
| Weight | 2.91 kg |
|---|---|
| Dimensions | 65 × 18 × 13 cm |
