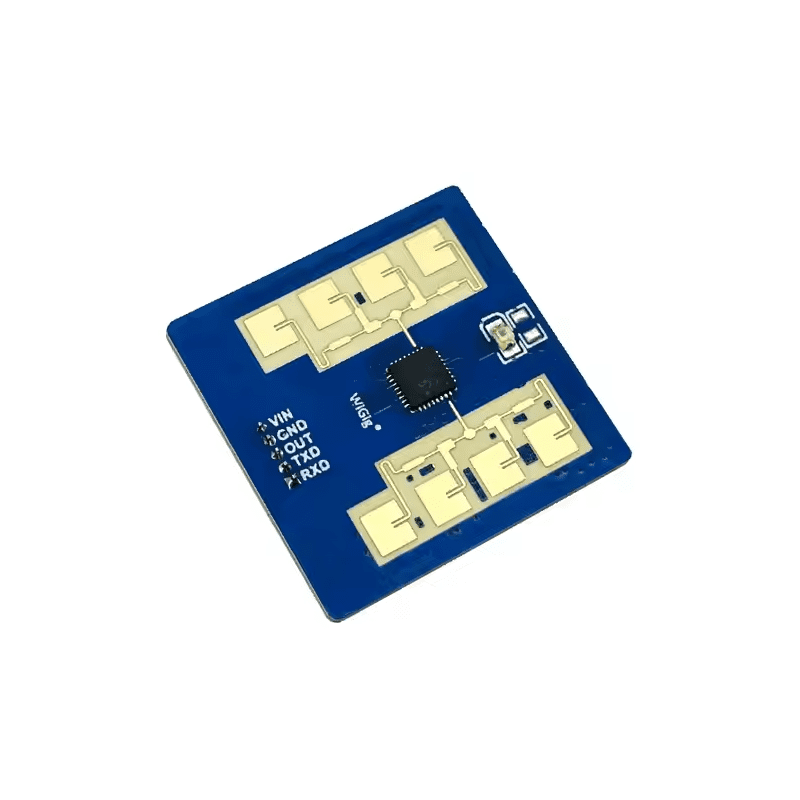

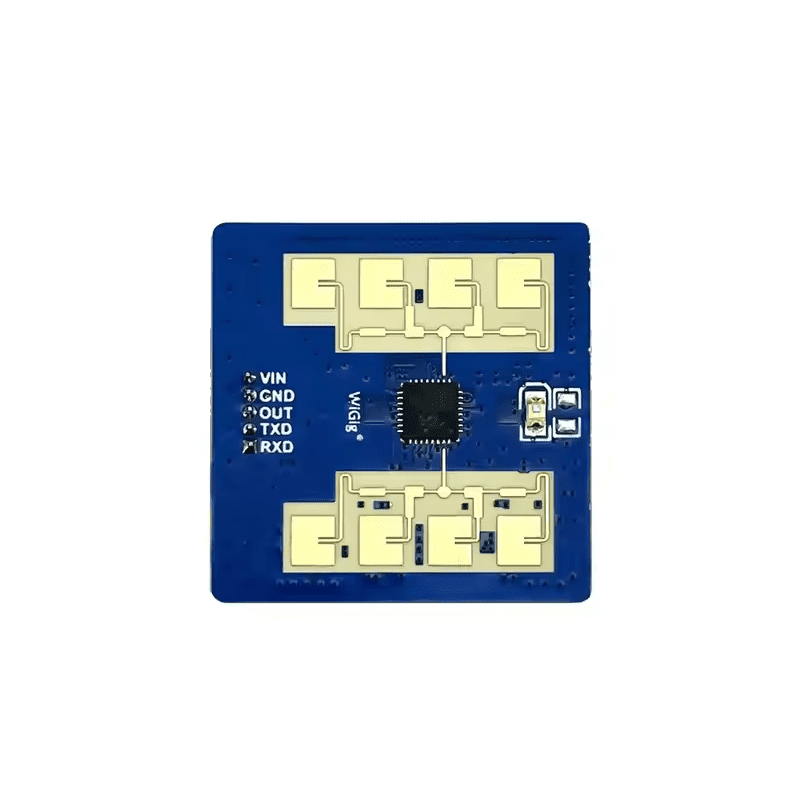

Hi-Link HLK-LD2411S 24GHz Ranging Radar Sensor Module - Flat Beam Motion/Micro-Motion Detection
The Hi-Link HLK-LD2411S is a 24GHz FMCW radar sensor module designed for accurate human motion, micro-motion, and distance detection. Operating on a single 5V supply, it integrates a radar chip, antenna, and MCU with intelligent firmware, making it suitable for integration with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
Features
- 24GHz FMCW radar with intelligent algorithm firmware for precise human motion and distance sensing.
- Flat beam pattern with 20° azimuth and 45° pitch for flexible placement in single-target scenarios.
- Low power consumption with 48mA average current at a 20Hz reporting frequency.
- 5V single power supply compatible with common microcontroller and embedded systems.
- Configurable sensitivity via visualization tools for optimized performance in various applications.
Out of stock
The HLK-LD2411S module utilizes a 24GHz millimeter-wave radar chip combined with a high-performance microstrip antenna and a dedicated MCU. Its FMCW (Frequency Modulated Continuous Wave) waveform and proprietary signal processing enable accurate detection of both human motion and subtle micro-movements, along with precise distance measurement. The sensor’s flat beam design (20° azimuth, 45° pitch) allows for targeted coverage, ideal for scenarios where a single, primary target needs to be monitored.
Engineered for continuous operation, the module features a low average current draw, making it suitable for battery-powered or always-on applications. The integrated RM01 firmware handles complex signal analysis, outputting processed data that can be easily interfaced with host controllers via UART for real-time monitoring and system integration in smart home, security, and automation projects.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
