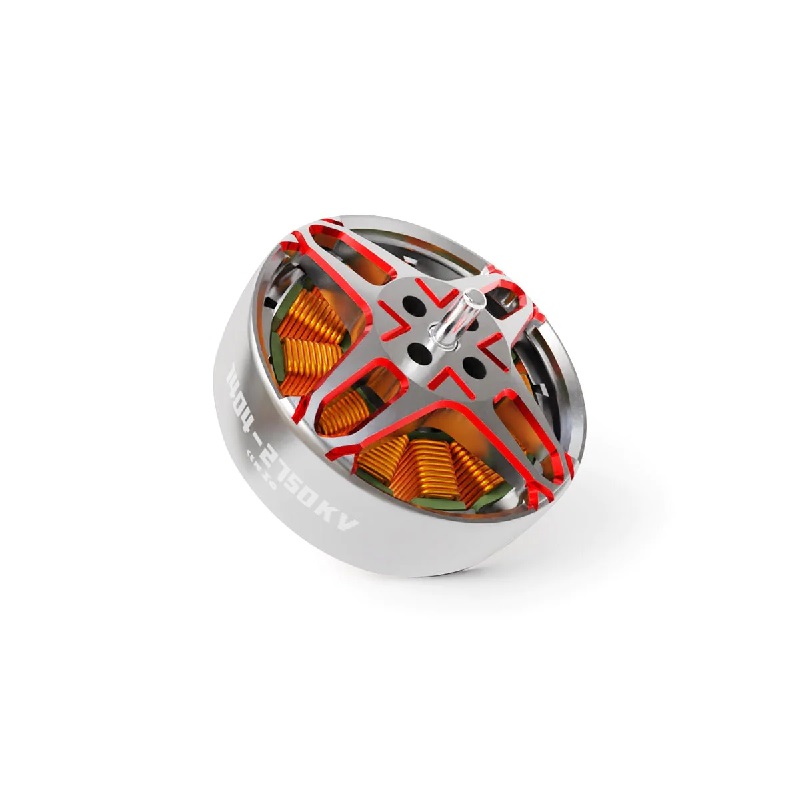

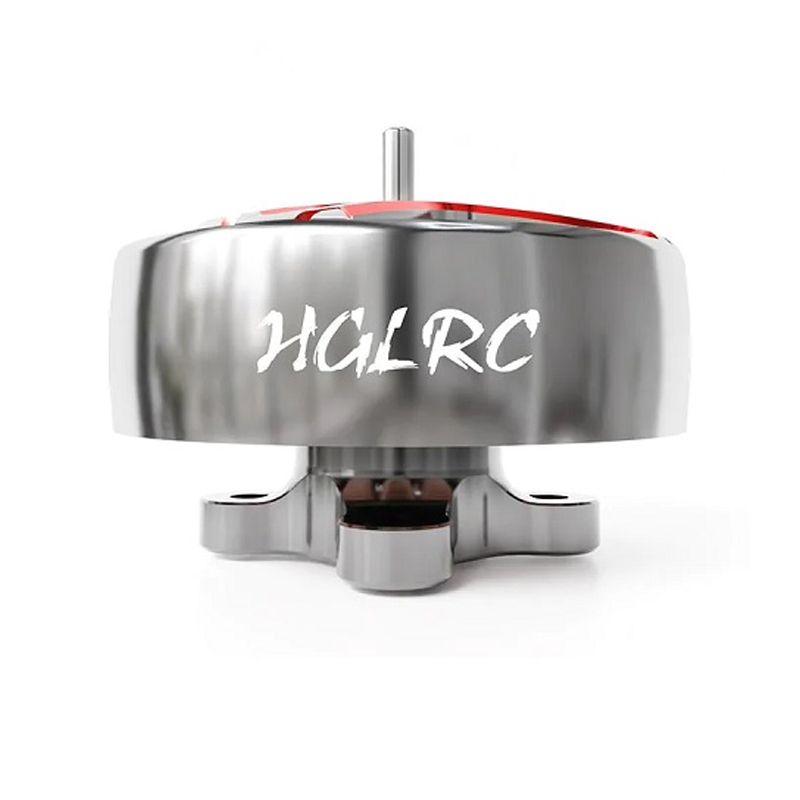

HGLRC SPECTER 1404 2750KV Brushless Motor
The HGLRC SPECTER 1404 2750KV brushless motor is engineered for high-performance micro and toothpick drones, delivering rapid throttle response and strong torque across a 4-6S LiPo voltage range for agile freestyle and racing applications.
Features
- High-torque 1404 stator design optimized for 2-inch to 4-inch lightweight drone builds.
- 2750KV rating provides high RPM for aggressive throttle response on 4-6S LiPo batteries.

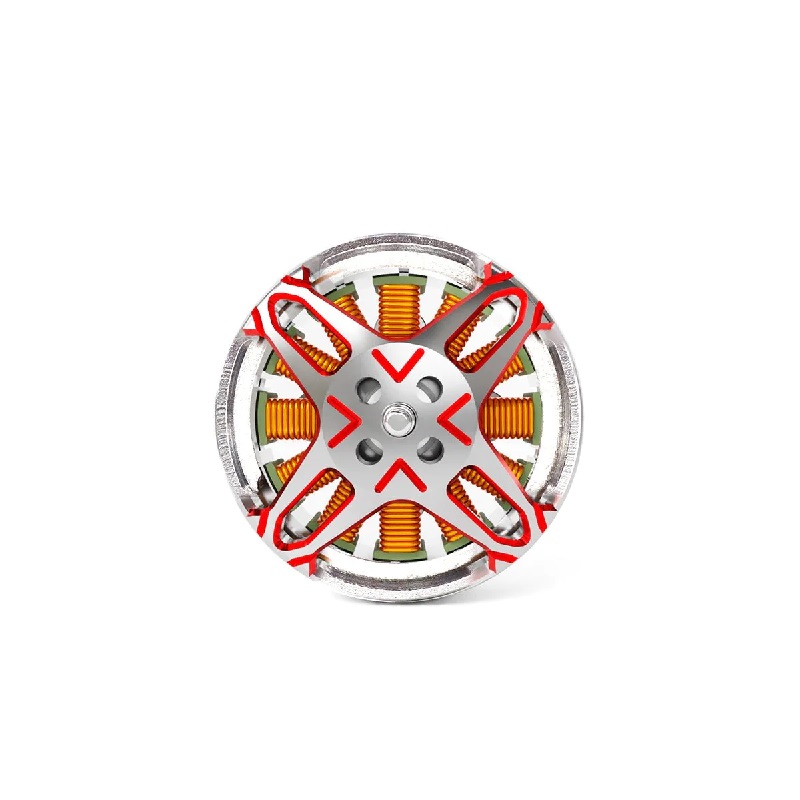

- Constructed with a 7075 aluminum one-piece rotor and N52H curved magnets for durability and power.
- High-temperature 200°C copper windings and low-loss silicon steel stator ensure stable, efficient operation.

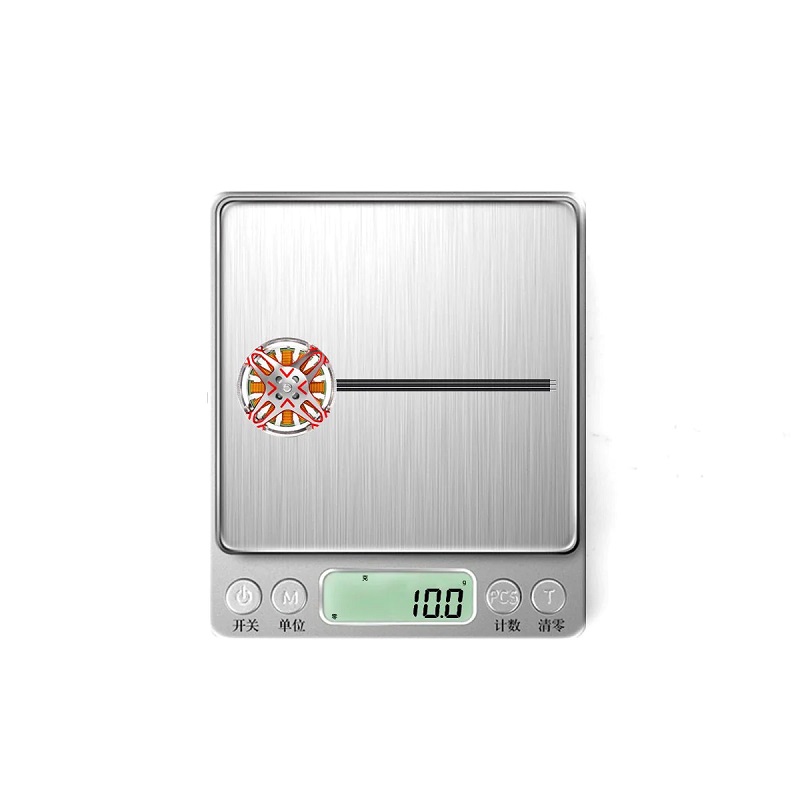

- Includes mounting hardware for M2 bolt patterns (9mm circle) with a total weight of just 10 grams.
Out of stock
The SPECTER 1404 motor from HGLRC utilizes a 9N12P slot-pole configuration and advanced materials to deliver a potent power-to-weight ratio for micro FPV platforms. Its design prioritizes thermal management and mechanical integrity, featuring a high-strength alloy steel output shaft and anodized aluminum rotor to withstand the demands of high-RPM operation.
Engineered for precise control, the motor maintains linear torque output across the throttle curve, enabling crisp maneuvers and stable handling in acrobatic flight. The optimized magnetic circuit and stator lamination reduce eddy current losses, allowing for sustained high-performance flights on 4S to 6S power systems with recommended ESCs rated above 15A.
Additional Information
| Weight | 0.015 kg |
|---|---|

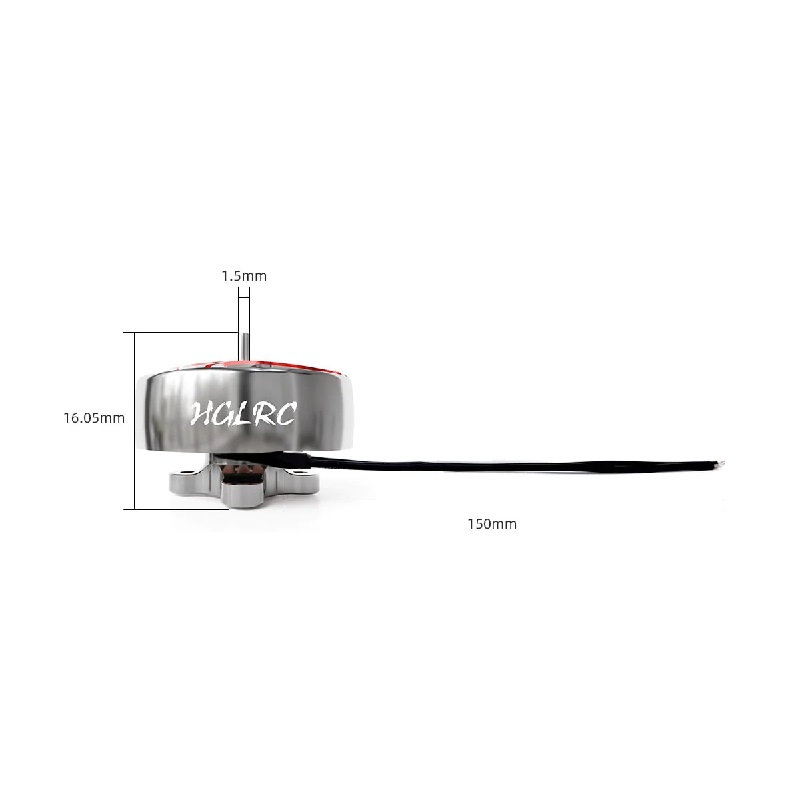

| Dimensions | 3.2 × 3.6 × 2.8 cm |
