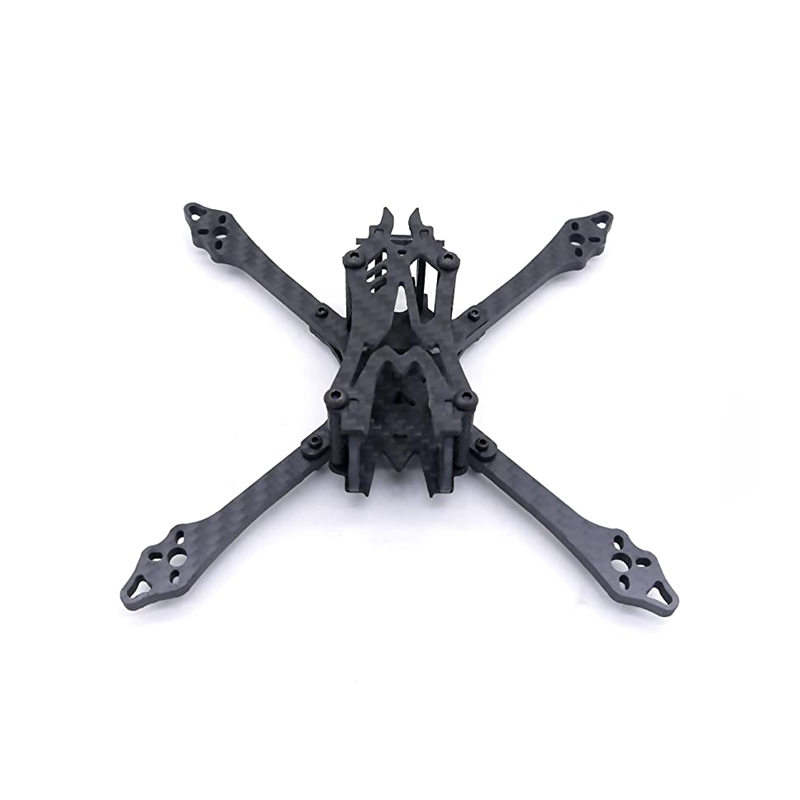

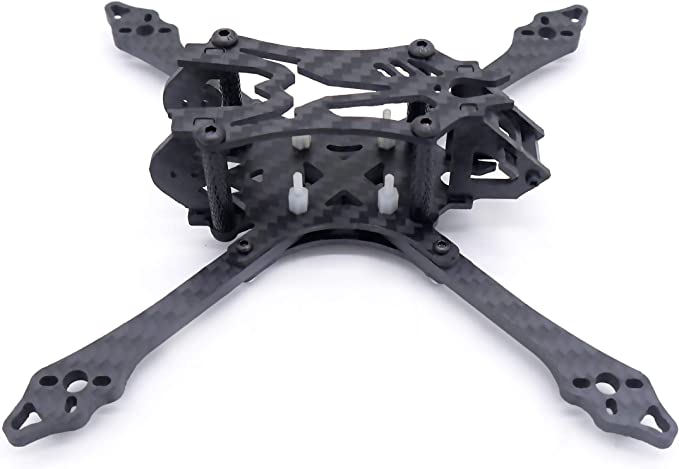

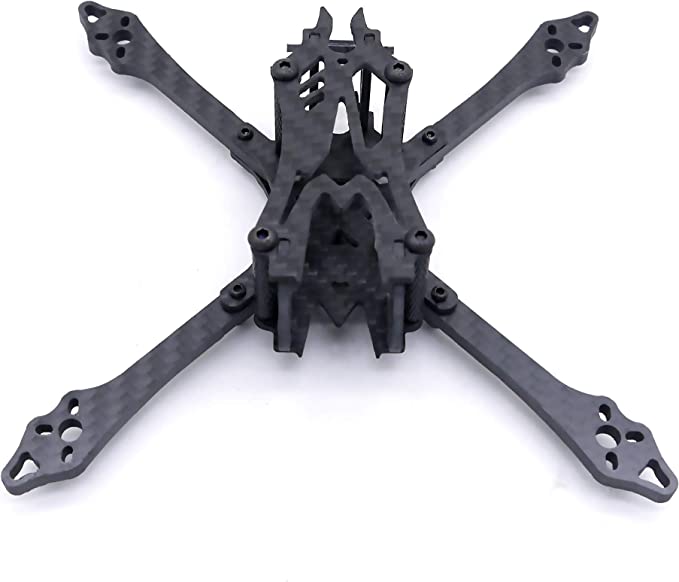

HF150 150mm 3-Inch Carbon Fiber FPV Drone Frame
The HF150 is a lightweight 150mm wheelbase carbon fiber frame designed for 3-inch propellers, offering a perfect balance of performance and durability for FPV freestyle and racing builds. It supports standard 20x20mm flight controller mounting patterns and is optimized for compact drone setups.
Features
- 150mm wheelbase optimized for 3-inch propellers, ideal for compact FPV builds.
- Constructed from full carbon fiber with 4.0mm thick arms for high durability.
- Ultra-lightweight 40g design enhances flight agility and responsiveness.
- Features 20x20mm flight controller mounting for versatile component integration.
- Designed to accommodate 13xx and 14xx series brushless motors (9x12mm mounting).
Out of stock
The HF150 is a meticulously crafted 150mm carbon fiber frame engineered for 3-inch propeller setups, providing an exceptional balance between structural integrity and agile flight performance. Its construction utilizes full carbon fiber, featuring robust 4.0mm thick arms to withstand impacts inherent in FPV flying, while other plates maintain a 2.0mm thickness to keep the overall weight down.
Weighing only 40 grams, this super lightweight frame is ideal for builders aiming for high power-to-weight ratios in their drone projects. It offers a straightforward assembly process, supporting common motor sizes like 1306, 1407, 1105, and other 13xx/14xx series motors with 9x12mm mounting. The body of the frame efficiently houses and protects critical electronic components such as the flight controller, 4-in-1 ESC, FPV camera, and VTX, ensuring a clean and protected build.
Additional Information
| Dimensions | 15 × 12 × 1 cm |
|---|
