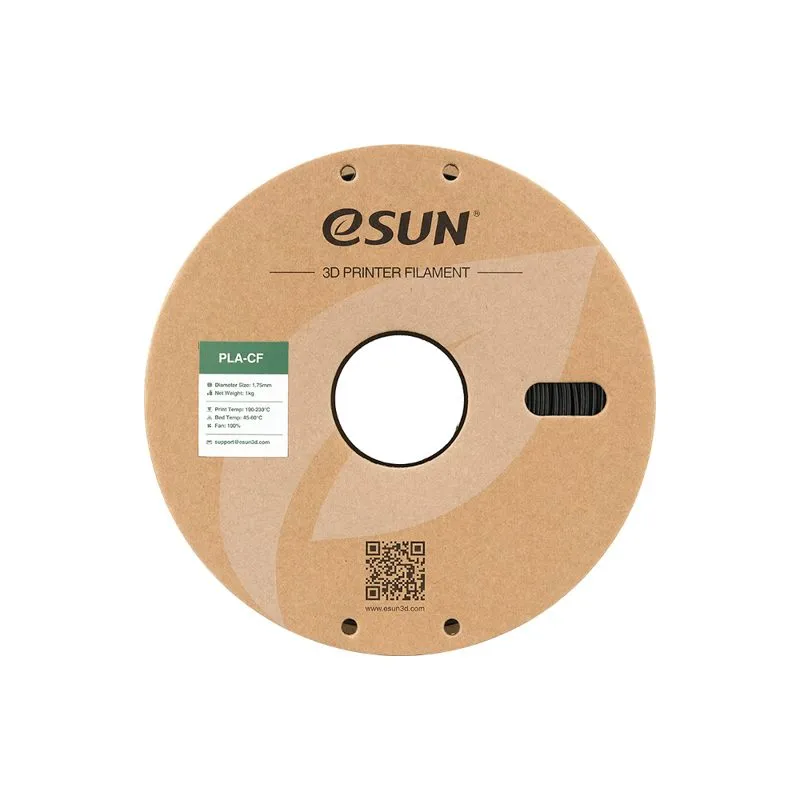

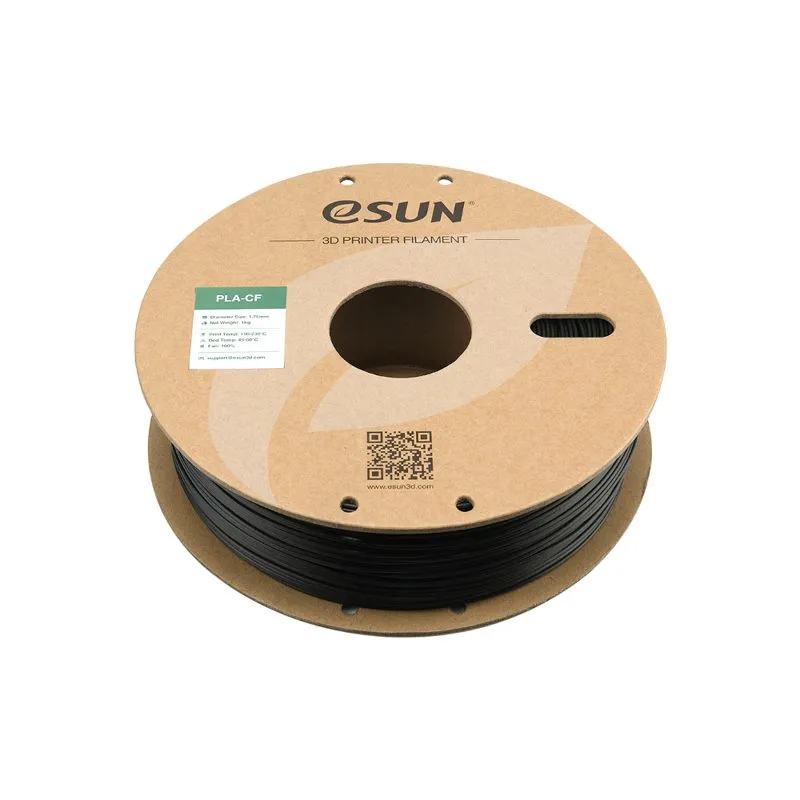

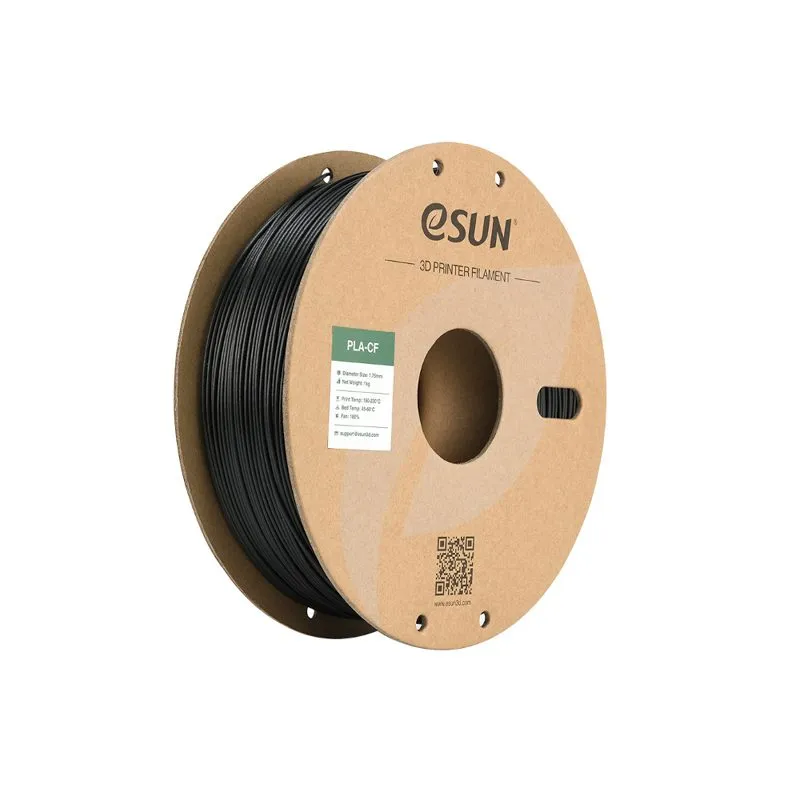

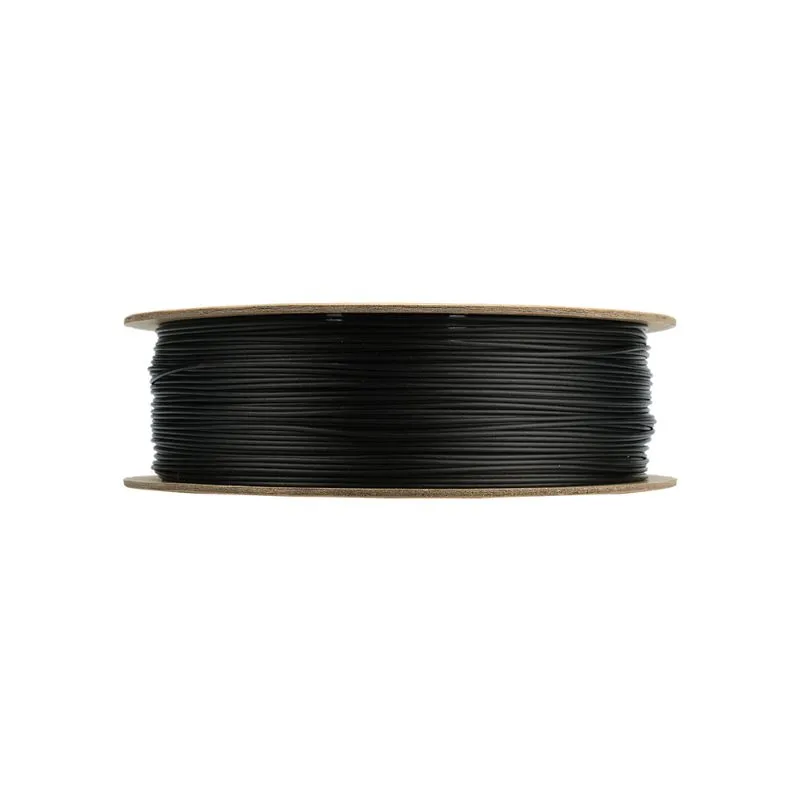

eSUN PLA-CF Black 1.75mm Carbon Fiber PLA Filament 1kg

₹2,199.00 (Inclusive of all taxes)
Out of Stock

eSUN PLA-CF is a high-performance carbon fiber reinforced PLA filament designed for demanding 3D printing applications. This 1.75mm black filament offers enhanced strength, a distinctive matte finish, and excellent printability, making it ideal for structural and aesthetic parts on FDM printers.

Features

  • Enhanced strength and modulus due to carbon fiber reinforcement.
  • Achieves a sophisticated matte finish with a unique carbon fiber sandblasted texture.
  • Offers exceptional printability, supporting high-speed FDM printing.
  • Designed for both structural components and aesthetic applications.

Out of stock

Description

eSUN PLA-CF filament integrates German-imported organic impregnated short-cut carbon fibers, significantly enhancing the material’s strength and modulus compared to standard PLA. This advanced composite delivers superior mechanical properties while maintaining the ease of use associated with PLA.

The carbon fiber inclusion not only reinforces the polymer matrix but also imparts a distinctive matte finish and a unique sandblasted texture to your printed parts. This combination of structural integrity and aesthetic appeal makes PLA-CF a versatile choice for both functional prototypes and visually striking end-use components. Its optimized formulation ensures exceptional printability, even at high speeds, providing consistent extrusion and reliable layer adhesion for demanding projects.

Key Features

  • Significantly enhanced strength and stiffness for robust functional parts.
  • Achieves a sophisticated matte finish, minimizing layer lines and reflections.
  • Unique carbon fiber sandblasted texture provides a premium tactile feel.
  • Optimized for outstanding printability and reliable extrusion.
  • Supports high-speed 3D printing, reducing production times.
  • Excellent layer adhesion for durable and cohesive prints.
  • Low warping tendency, ensuring dimensional accuracy.

Applications

  • Functional prototypes requiring increased stiffness and strength.
  • End-use components with a premium matte, textured finish.
  • Housings, jigs, and fixtures needing improved rigidity.
  • Aesthetic parts where a carbon fiber look is desired.

Technical Specifications

ColorBlack
Filament Diameter1.75 mm
Density1.21 g/cm³
Heat Distortion Temperature53.5 °C
Melt Flow Index5.37 g/10min (190°C/2.16kg)
Extruder Temperature190-230 °C
Bed Temperature45-60 °C
Printing Speed50-300 mm/s
Fan Speed100%
Tensile Strength39.3 MPa
Elongation at Break4.27%
Flexural Strength103.1 MPa
Flexural Modulus5005.9 MPa
Printability Rating9/10
Durability Rating4/10

Frequently Asked Questions

How should eSUN PLA-CF filament be dried before printing?

For optimal print quality and to prevent issues like stringing or poor layer adhesion, it is recommended to dry eSUN PLA-CF filament before use. Dry the spool at 50-55°C for 6-8 hours. Proper drying ensures consistent extrusion and enhances the mechanical properties of your finished parts.

What type of nozzle is recommended for printing with eSUN PLA-CF?

Due to the abrasive nature of carbon fibers, it is highly recommended to use a hardened steel nozzle or other wear-resistant nozzles when printing with eSUN PLA-CF. Brass nozzles will wear down quickly, leading to inconsistent extrusion and reduced print quality over time, affecting dimensional accuracy.

What are the recommended bed adhesion settings for eSUN PLA-CF?

For excellent bed adhesion with eSUN PLA-CF, set your print bed temperature between 45-60°C. Using an adhesive like a glue stick, Kapton tape, or a PEI sheet can further enhance adhesion. Ensure proper bed leveling and a slow first layer speed to prevent warping and ensure successful prints.

What advantages does PLA-CF offer over standard PLA filament?

eSUN PLA-CF significantly surpasses standard PLA in terms of strength and stiffness, making it suitable for more demanding applications. The carbon fiber reinforcement also provides a distinct matte, textured finish, enhancing aesthetic appeal. While slightly more abrasive, it offers superior performance for functional and visually impressive prints.

Package Includes

  • 1x eSUN PLA-CF Black 1.75mm 1kg Filament Spool

Additional Information

Weight 1.3 kg
Dimensions 22 × 20 × 7 cm
