SKU: 3DMR-1467
📋 GST Invoice Available

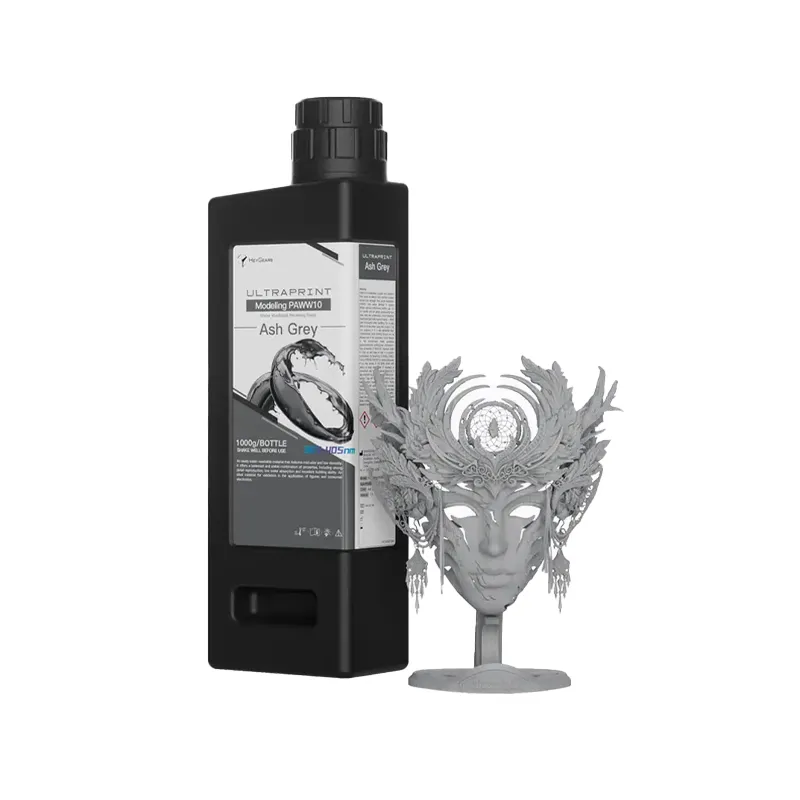

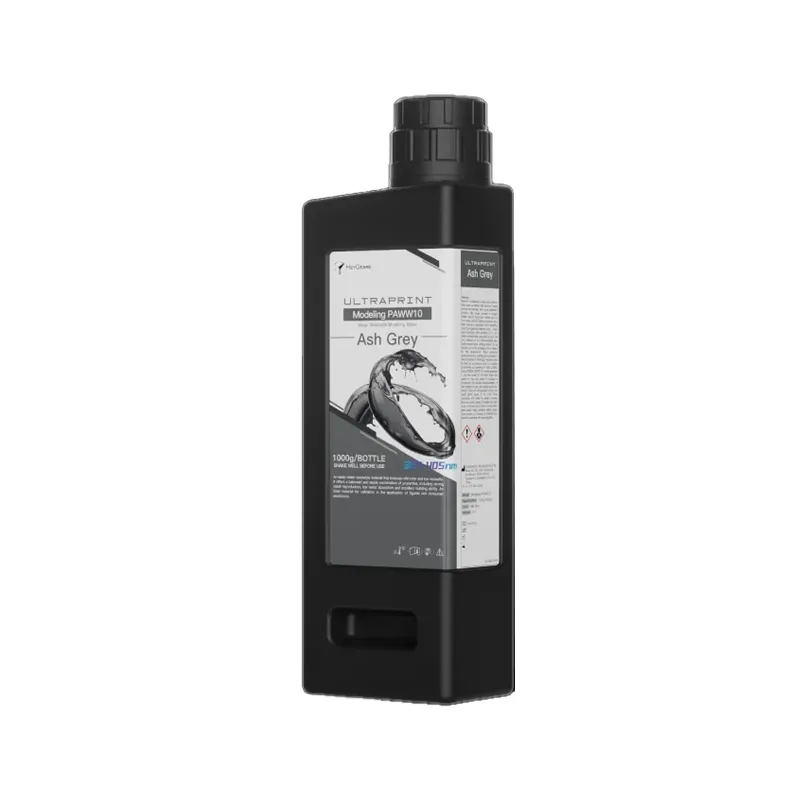

HeyGears UltraCraft PAWW10 Water-Washable Resin 1000g

₹5,329.00 (Inclusive of all taxes)
Out of Stock

HeyGears UltraCraft PAWW10 is a convenient water-washable photopolymer resin designed for high-quality, detailed 3D prints. Its low odor and viscosity streamline cleanup, eliminating the need for harsh solvents while ensuring excellent detail reproduction and strong forming capabilities.

Features

  • Effortless water-washable cleanup, no harsh chemicals required.
  • Achieves exceptional detail and robust forming capabilities for precise models.
  • Low odor and low viscosity for a more pleasant and reliable printing experience.
  • Optimized for UltraCraft Reflex and Reflex RS 3D Printers.
  • Delivers a balanced performance of durability with minimal water absorption.

Out of stock

Description

HeyGears UltraCraft- Modeling PAWW10 1000g Resin offers a highly user-friendly approach to resin 3D printing. This advanced photopolymer formulation simplifies post-processing by allowing prints to be rinsed clean with water, completely eliminating the need for hazardous solvents like IPA or acetone. Its low odor and low viscosity enhance the printing environment and facilitate smoother resin flow for reliable print outcomes.

Designed to deliver a superior balance of precision and durability, PAWW10 resin excels in reproducing fine details essential for intricate models and functional prototypes. It boasts strong forming capabilities, ensuring structural integrity for parts used in figurines, miniatures, and consumer electronics. With minimal water sorption, printed objects maintain excellent dimensional stability over time, guaranteeing consistent performance and reliability in diverse applications. This resin is specifically engineered for optimal compatibility with UltraCraft Reflex and Reflex RS 3D Printers.

Key Features

  • Water-washable formulation eliminates the need for alcohol or acetone post-processing.
  • Low viscosity ensures smooth, consistent printing and reduced printer wear.
  • Highly durable finished prints provide long-lasting structural integrity.
  • High-detail reproduction capability is ideal for intricate and fine models.
  • Strong forming capability guarantees solid and stable structures.
  • Balanced performance makes it suitable for a wide range of prototyping and modeling applications.
  • Low water sorption prevents warping and ensures excellent dimensional stability.
  • Optimized for seamless compatibility with UltraCraft Reflex & Reflex RS 3D printers.

Applications

  • Detailed figurines and miniature models.
  • Functional prototypes for consumer electronics.
  • Rapid prototyping requiring high resolution and durability.
  • General modeling where ease of post-processing is critical.

Technical Specifications

ColorAsh Gray
MaterialPhotopolymer Resin
Net Weight1000g
Density1.1-1.2 g/cm³
Viscosity150-250 mPa·s
Curing Wavelength365-405 nm
Tensile Strength40-60 MPa
Flexural Modulus2000-3000 MPa
Elongation at Break5-10 %
Hardness (Shore D)80-85
Flexural Strength60-90 MPa
IZOD Impact Strength15-25 J/m

Frequently Asked Questions

How do I properly wash prints made with HeyGears UltraCraft PAWW10 resin?

After printing, gently remove supports and rinse the model under running tap water for about 3 minutes to remove excess resin. Use a soft brush for intricate areas if needed. Avoid leaving prints submerged for extended periods to prevent water absorption and potential softening. Ensure prints are fully dry before post-curing.

What are the recommended post-curing settings for UltraCraft PAWW10 resin?

For optimal mechanical properties, post-cure prints using a 405nm UV curing light. Curing times typically range from 2 to 5 minutes, depending on the UV power and part thickness. Ensure all surfaces are exposed evenly. Over-curing can lead to brittleness, so test small parts first.

Is this resin compatible with all 405nm LCD/DLP 3D printers?

While formulated for 405nm curing, UltraCraft PAWW10 is specifically optimized for HeyGears UltraCraft Reflex and Reflex RS printers for best performance. It may work with other 405nm LCD/DLP printers, but exposure settings will require calibration and may vary significantly to achieve optimal results.

How should HeyGears UltraCraft PAWW10 resin be stored?

Store the resin in its original opaque bottle, tightly sealed, in a cool, dry, dark place away from direct sunlight or UV light exposure. Keep it at room temperature, ideally between 15-30°C. Proper storage extends shelf life and prevents premature curing or degradation of the material.

What measures should be taken to dispose of unused or waste resin?

Never pour liquid resin down drains. Uncured resin is an environmental hazard. Curing any residual liquid resin under strong UV light until it solidifies makes it safe for disposal with regular household waste. Clean tools with isopropyl alcohol, and dispose of contaminated IPA properly.

Package Includes

  • 1 x HeyGears UltraCraft PAWW10 Water-Washable Resin (1000g)

Additional Information

Weight 1.451 kg
Dimensions 6.5 × 10.5 cm
