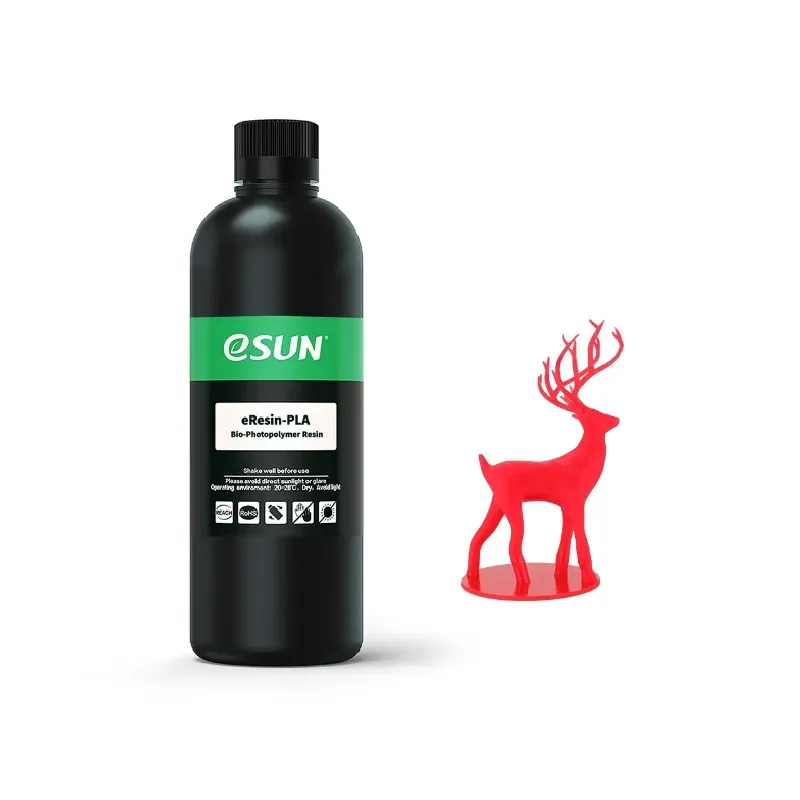

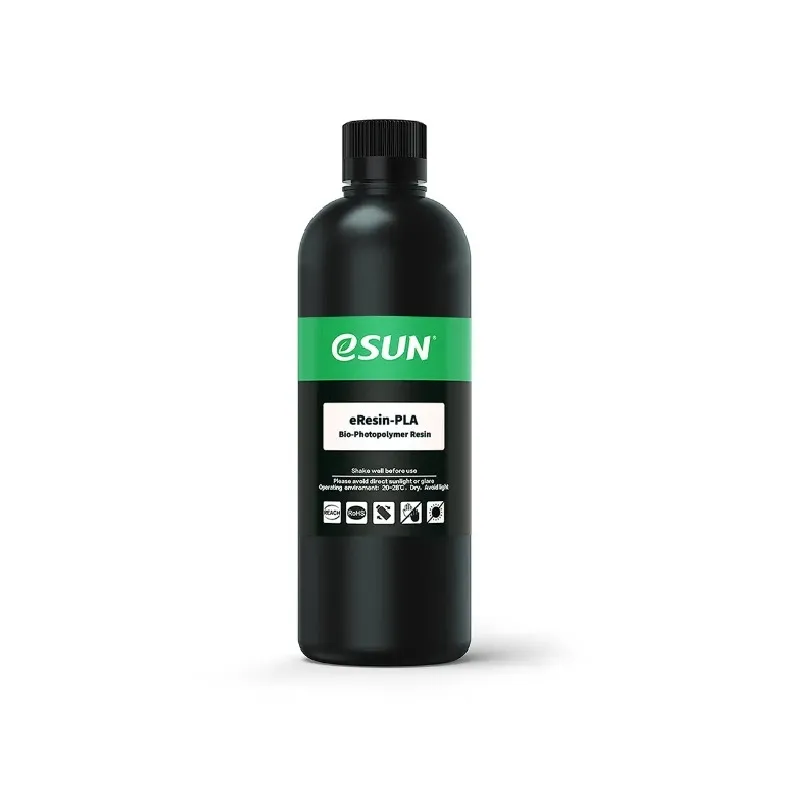

eSUN eResin-PLA Bio-Based Resin - Red, 1kg

₹2,419.00 (Inclusive of all taxes)
Out of Stock

eSUN eResin-PLA is a bio-based photopolymer resin designed for high-precision 3D printing. This environmentally friendly formulation offers excellent hardness, scratch resistance, and moisture resistance, making it suitable for DLP/LCD resin printers.

Features

  • Bio-based, environmentally friendly formulation.
  • Achieves high precision and fine detail in prints.
  • Excellent hardness and scratch resistance (80 Shore D).
  • Good moisture resistance for enhanced part durability.

Out of stock

Description

The eSUN eResin-PLA is a cutting-edge bio-based photopolymer designed for exceptional performance in DLP and LCD 3D printing. This resin stands out for its environmentally friendly composition, making it a responsible choice without compromising on quality. It delivers high-precision prints with fine detail, ideal for applications requiring intricate geometries and smooth surface finishes. Engineered for durability, eResin-PLA exhibits remarkable hardness with a Shore D rating of 75-80, coupled with superior scratch resistance and good moisture resistance, ensuring the longevity and integrity of your printed parts.

Optimized for UV light sources between 395-405 nm, eSUN eResin-PLA boasts a balanced viscosity (100-270 mPa·s) for reliable feeding and easy post-processing. Its robust mechanical profile includes a tensile strength of 35-50 MPa and a flexural modulus of 600-800 MPa, translating into strong, rigid parts suitable for functional prototypes and end-use components. This material ensures consistent printability and reliable performance across various resin 3D printers, providing a versatile solution for makers and engineers seeking a high-quality, sustainable printing material.

Key Features

  • Environmentally friendly, bio-based resin formulation.
  • Enables high-precision printing with exceptional detail resolution.
  • Exhibits high hardness (75-80 Shore D) and superior scratch resistance.
  • Offers good moisture resistance for stable part performance.
  • Compatible with 395-405 nm UV light source resin printers.
  • Provides strong mechanical properties with 35-50 MPa tensile strength.
  • High flexural modulus of 600-800 MPa for rigid parts.
  • Low viscosity (100-270 mPa·s) for easy printing and cleaning.

Technical Specifications

ColorRed
MaterialeResin-PLA
Density1.07-1.10 g/cm³
Viscosity100-270 mPa·s
Wavelength395-405 nm
Tensile Strength35-50 MPa
Flexural Modulus600-800 MPa
Elongation at Break20-50 %
Hardness (Shore D)75-80
Flexural Strength40-60 MPa
IZOD Impact Strength15-32 J/m

Frequently Asked Questions

What are the optimal storage conditions for eSUN eResin-PLA?

Store eSUN eResin-PLA in a cool, dark place away from direct sunlight and heat, preferably in its original sealed bottle. Extreme temperatures can affect its shelf life and performance. Ensure the bottle cap is tightly closed to prevent air and moisture exposure, which can degrade the resin quality over time.

What is the recommended post-curing process for eSUN eResin-PLA prints?

After printing, thoroughly clean the model with isopropyl alcohol (IPA) or ethanol, then air dry completely. Post-cure using a 395-405 nm UV light chamber. Curing times vary based on part thickness and UV intensity, typically 2-5 minutes per side, to achieve optimal mechanical properties and hardness.

How should I dispose of unused eSUN eResin-PLA and cleaning solutions?

Uncured resin and contaminated cleaning solutions should never be poured down the drain. Cure any residual resin in direct sunlight or a UV chamber until solid, then dispose of it as regular plastic waste. Dispose of IPA/ethanol according to local hazardous waste regulations.

Can eSUN eResin-PLA be mixed with other resins?

While technically possible, it is generally not recommended to mix eSUN eResin-PLA with other resin types or brands. This can lead to unpredictable print results, compromised mechanical properties, and potential curing issues due to differences in chemical composition and UV reactivity. Stick to pure eResin-PLA for best performance.

Package Includes

  • 1x eSUN eResin-PLA (Bio-based resin) - Red (1kg Bottle)

Additional Information

Weight 1 kg
Dimensions 11.5 cm
