SKU: 3DMR-1125
📋 GST Invoice Available

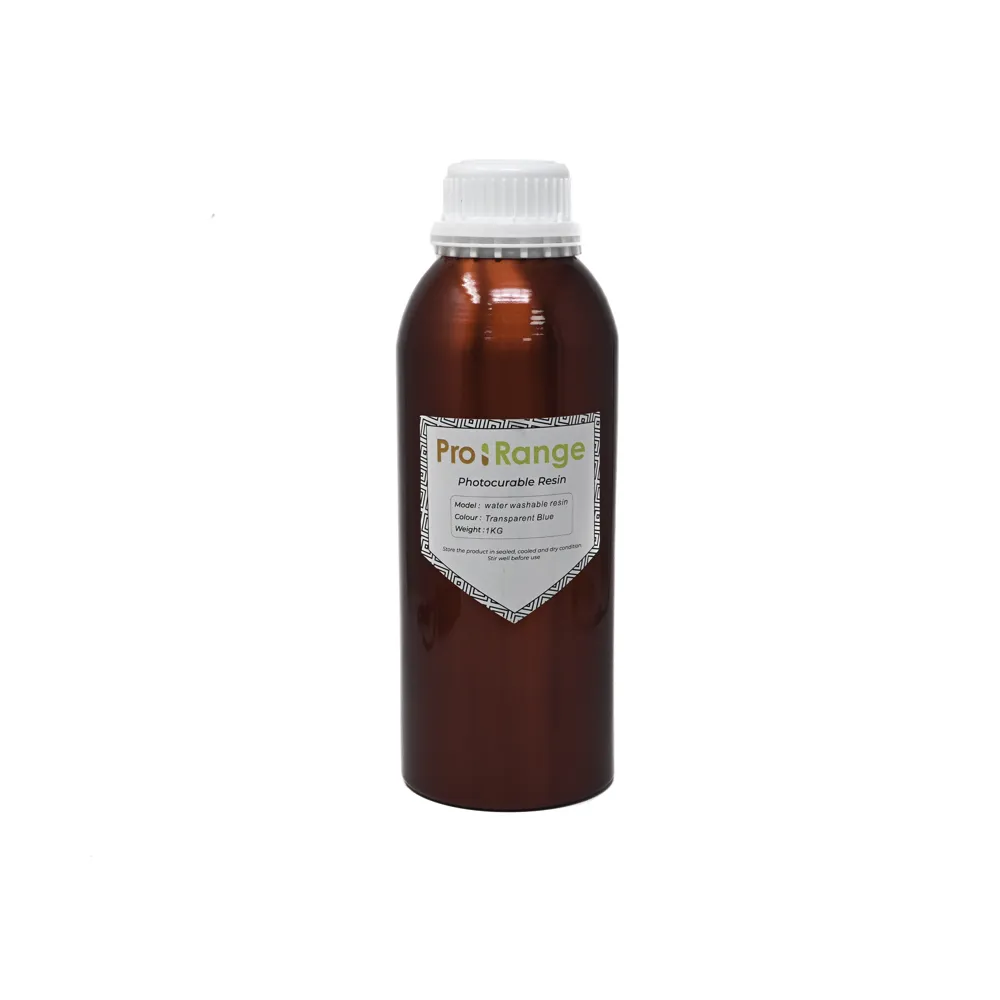

Pro-Range Standard Water Washable Resin 1Kg Transparent Blue

₹2,539.00 (Inclusive of all taxes)
Out of Stock

Pro-Range Standard Water Washable Resin in Transparent Blue offers exceptional ease of post-processing, requiring only water for cleaning. This high-quality LCD light-curing resin delivers performance akin to ABS plastic, enabling the creation of durable, functional prototypes and parts with high mechanical strength and impact resistance.

Features

  • Effortless post-processing with simple water rinsing, no alcohol needed.
  • Achieves ABS-like mechanical strength and superior impact resistance for robust parts.
  • Ideal for producing durable functional prototypes and product appearance verification.
  • Excellent dimensional accuracy ensures reliable fit and assembly for complex designs.
  • Compatible with 395-405nm LCD/DLP 3D printers, ensuring broad usability.

Out of stock

Description

The Pro-Range Standard Water Washable Resin is a premium LCD light-curing photopolymer engineered for straightforward post-processing using plain water, eliminating the need for alcohol-based cleaning. This resin is formulated to deliver mechanical properties comparable to traditional ABS plastic, making it an excellent choice for applications demanding robustness and reliability. It boasts high mechanical strength, impressive impact resistance, and the capability to produce tough, functional parts.

Its superior durability and ease of use make it particularly suitable for various engineering and design tasks. It excels in creating precise prototypes for form and fit verification, producing functional components that require structural integrity, and manufacturing parts intended for assembly, including those utilizing self-tapping screws. The Transparent Blue finish also allows for visual inspection of internal structures or aesthetic applications.

Key Features

  • Water Washable: Eliminates the need for costly and hazardous alcohol; simply rinse prints with water for easy cleaning and post-processing.
  • ABS-Like Performance: Engineered to exhibit mechanical properties similar to ABS plastic, including high mechanical strength, good impact resistance, and resilience.
  • Enhanced Durability: Offers high tensile strength (29MPa), flexural strength (48MPa), and significant impact resistance (15J/m ~ 16J/m), ensuring long-lasting prints.
  • Versatile Post-Processing: Achieves optimal surface finish and mechanical properties through standard UV post-curing or exposure to sunlight.
  • Low Viscosity: Features a low viscosity (109 mPa-s) for easier printing, faster cleaning, and reduced printer wear.
  • High Hardness: With a Shore D hardness of 79D-81D, cured parts are rigid and resistant to scratches and deformation.

Applications

  • Functional prototypes requiring high mechanical strength and impact resistance.
  • Product appearance verification models for design evaluation.
  • Components for assembly, including parts designed for self-tapping screws.
  • Durable general-purpose parts in engineering and hobbyist applications.
  • Transparent models where visual inspection of internal structures is needed.

Technical Specifications

ColorTransparent Blue
MaterialStandard Water Washable Resin
Viscosity109 mPa-s
Wavelength395-405 nm
Tensile Strength29 Mpa
Impact Strength15J/m ~ 16J/m
Hardness79D-81D

Frequently Asked Questions

What is the recommended cleaning procedure for Pro-Range Water Washable Resin prints?

After printing, remove the model from the build plate and rinse thoroughly with clean tap water. Use a soft brush for intricate details if necessary. Ensure all uncured resin is removed, then dry the part completely before proceeding to post-curing, which is essential for final mechanical properties.

What are the optimal UV wavelength and curing times for this resin?

This resin is optimized for 395-405nm UV light sources, common in LCD/DLP 3D printers. Post-curing times can vary based on part geometry and UV light intensity, but typically range from 2-5 minutes per side in a dedicated UV curing station for full hardness and to maximize its ABS-like mechanical properties.

Can this resin be used for high-detail miniatures or intricate models?

Yes, Pro-Range Standard Water Washable Resin offers excellent detail resolution, making it highly suitable for intricate miniatures and detailed models. Its good mechanical properties also ensure delicate features are less prone to breakage after curing. Adjust exposure settings on your printer for optimal precision.

How should unused resin be stored to maintain its quality and shelf life?

Store the resin in its original opaque bottle, tightly sealed, in a cool, dry place away from direct sunlight or any UV light exposure. Keep it safely away from children and pets. Always shake the bottle well before each use to ensure proper pigment and component dispersion.

What printer settings should I consider for optimal results with this resin?

Typical exposure times for a 395-405nm LCD printer range from 1.5-3.0 seconds per layer, depending on your specific printer and layer height. Ensure a stable printing environment between 20-25°C. Dial in your bottom layer exposure for strong bed adhesion to prevent print failures.

Package Includes

  • 1x Pro-Range Standard Water Washable Resin - 1Kg Transparent Blue Bottle

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
