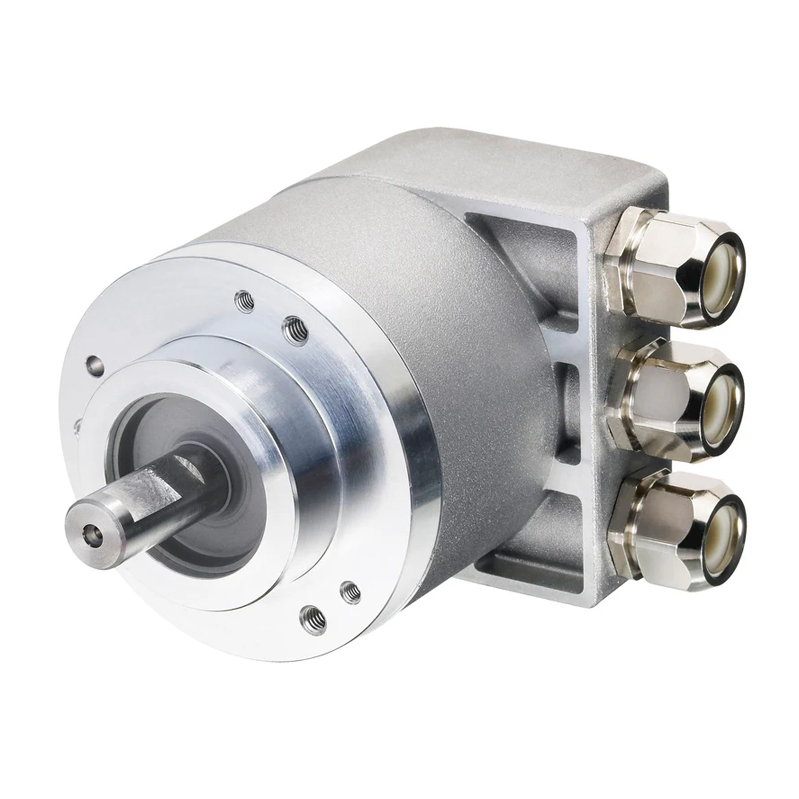

Hengstler AC58 Series 0566077 Absolute Rotary Encoder - Optical, Binary Output, IP67, Flange Mount
The Hengstler AC58 Series 0566077 is an industrial-grade absolute optical rotary encoder delivering precise binary position feedback for PLCs, CNC machinery, and motion control systems. Operating from a 10-30 VDC supply, it features a robust IP67-rated housing and a wide -40°C to +85°C temperature range for reliable performance in demanding automation environments.
Features
- Absolute optical encoder provides unique position data without homing after power loss.
- High-speed operation capable of up to 10,000 RPM for dynamic motion control applications.
- Industrial IP67 protection rating ensures reliable operation in dusty or washdown conditions.
- Wide 10-30 VDC supply voltage range compatible with standard industrial control power rails.
- Robust flange mounting design and -40°C to +85°C operating temperature for harsh environments.
Out of stock
The Hengstler AC58 Series encoder utilizes high-resolution optical sensing technology to generate a unique binary code for each shaft position. This absolute output eliminates the need for a reference run after power cycles, providing immediate and unambiguous position data critical for system safety and operational efficiency in automated machinery.
Engineered for industrial durability, the encoder’s housing is sealed to IP67 standards, protecting the internal optical disc and electronics from dust ingress and temporary immersion. The unit’s wide operating voltage and temperature tolerance make it suitable for integration into factory automation, robotics, material handling, and CNC equipment where consistent, reliable feedback is paramount.
Additional Information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 6.65 × 6.35 cm |
