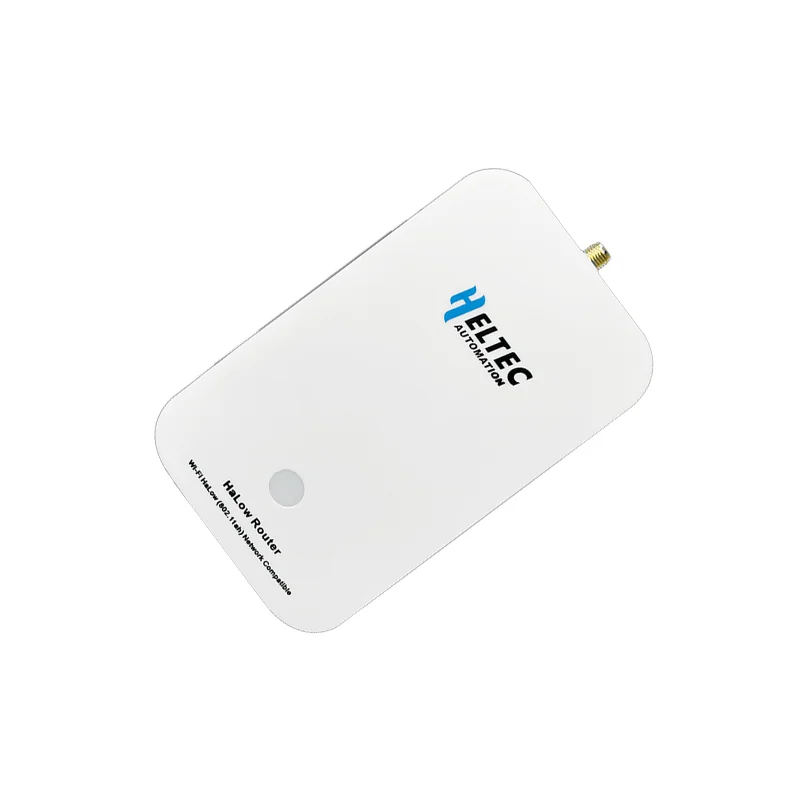

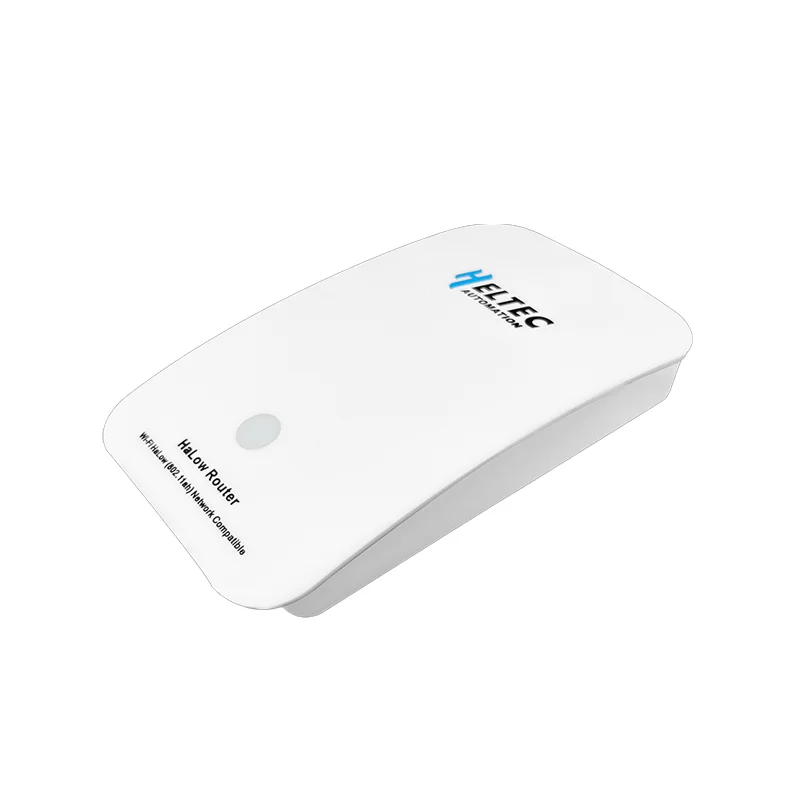

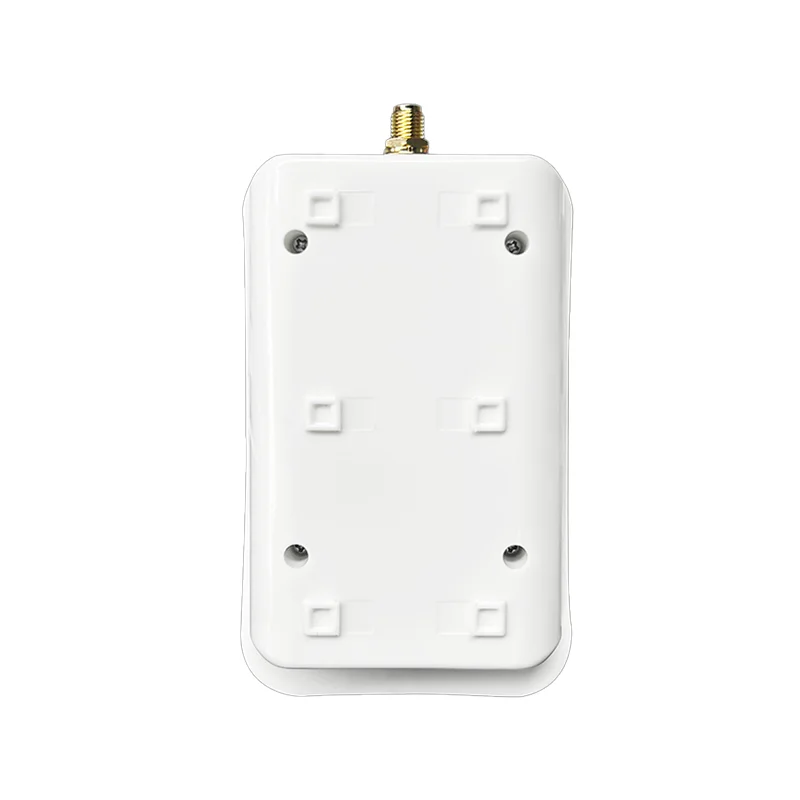

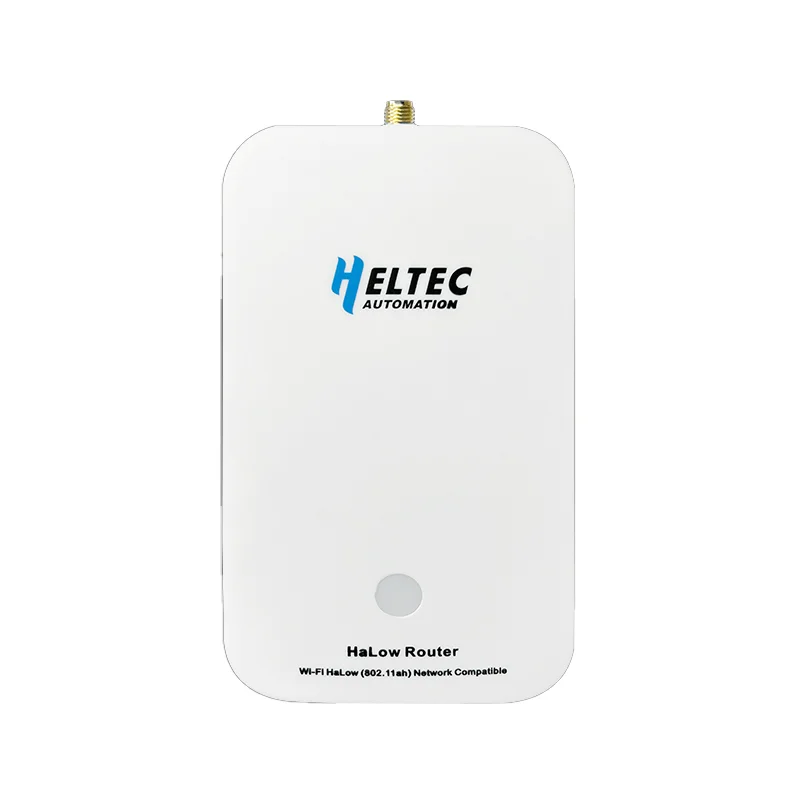

Heltec Automation Automation HT-H7608 Wi-Fi HaLow 802.11ah Router/Gateway

The HT-H7608 is configured via its built-in Web UI. Connect to its default Wi-Fi network, open a browser, and navigate to the provided IP address. From there, you can set the operating mode (AP, STA, or Mesh), configure SSIDs and passwords for both HaLow and 2.4GHz bands, manage network security, and set up port forwarding or DHCP settings as required for your IoT application.

Operating in the 902-928 MHz band, the HT-H7608 can achieve a line-of-sight range of up to 1 kilometer, with significantly better wall and obstacle penetration than standard Wi-Fi. Data rates are optimized for IoT traffic, supporting efficient transmission of sensor data and commands. The exact throughput depends on range and environmental factors, but it is designed for reliable, low-power communication with a large number of endpoints, not for high-bandwidth streaming.

Yes, the HT-H7608 supports Over-the-Air (OTA) firmware updates through its Web UI. This allows you to deploy security patches, feature enhancements, and bug fixes to deployed units without physical access. Ensure the router has a stable internet connection in STA or client mode, navigate to the firmware update section in the admin panel, and upload the new firmware file provided by Heltec Automation Automation.

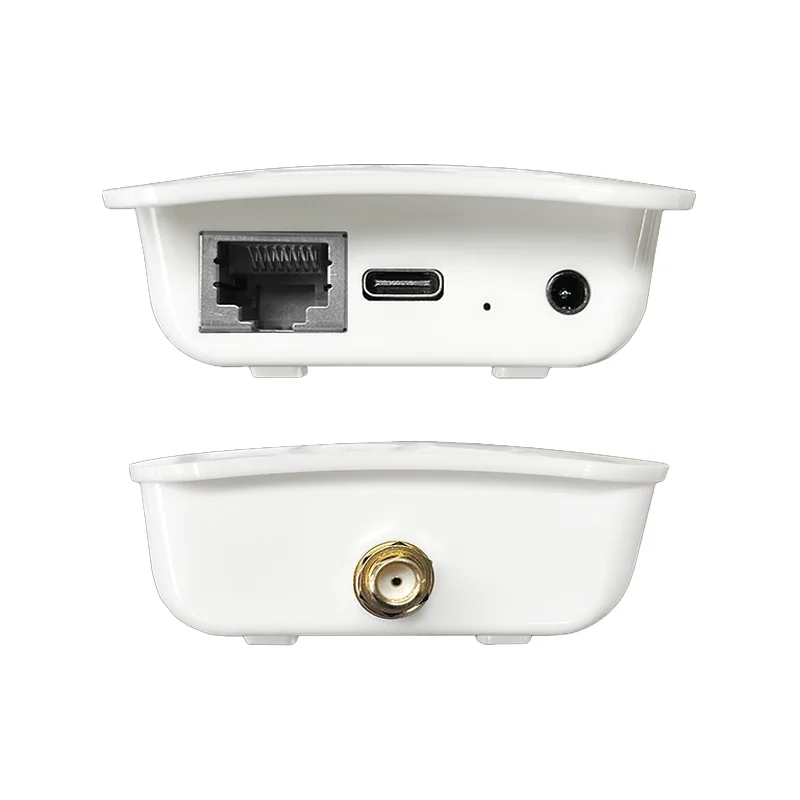

The router requires a stable 5V DC power supply with a capability of up to 2A maximum current draw, which is included in the package. It uses a standard barrel jack connector. For permanent installations, ensure the power adapter is placed in a well-ventilated area. The device operates within an industrial temperature range of -20°C to 70°C, making it suitable for both indoor and sheltered outdoor environments.
