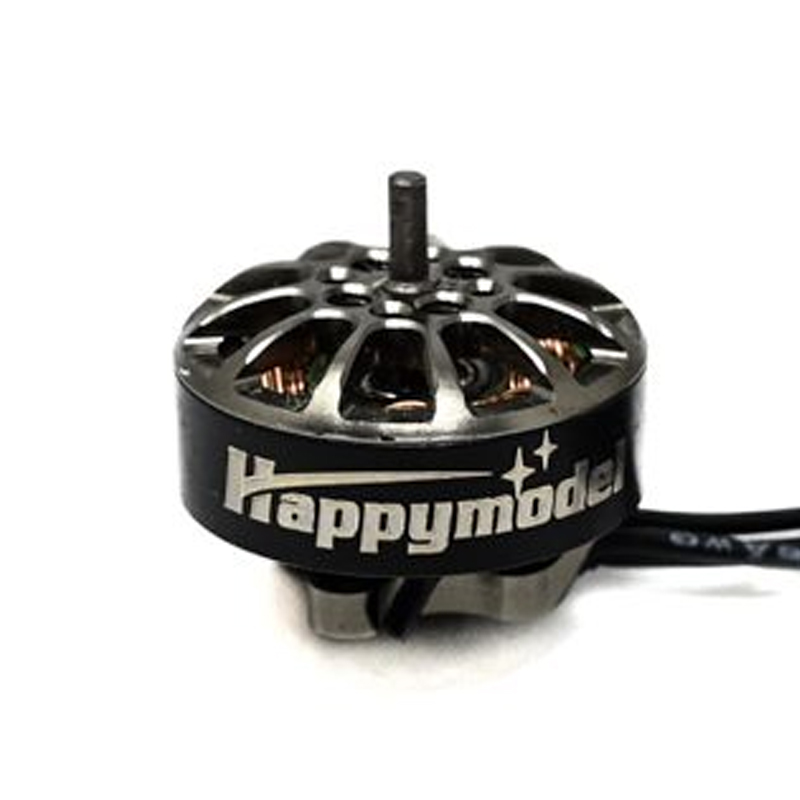

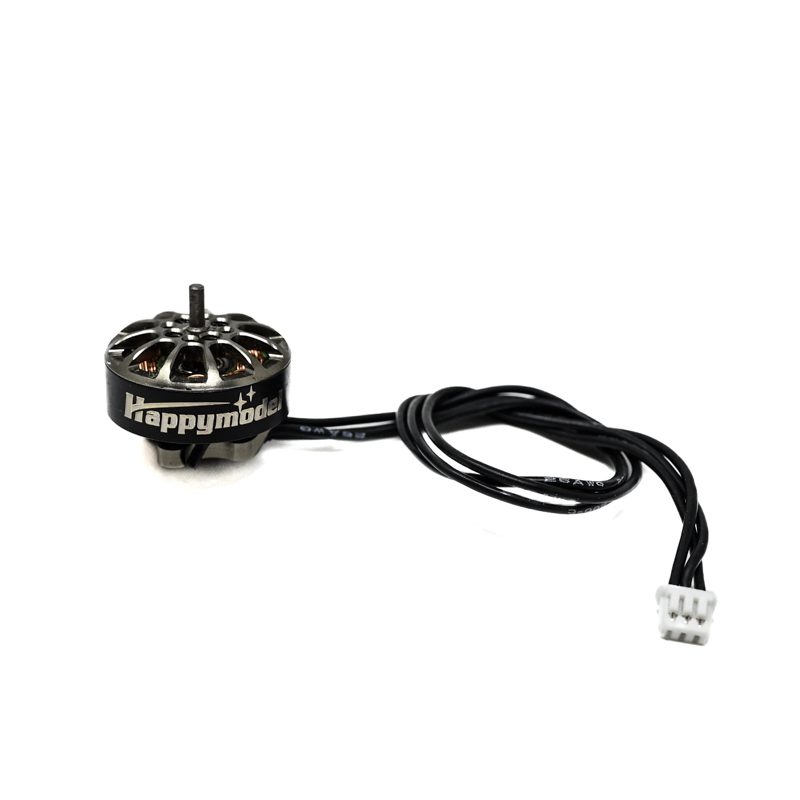

HappyModel EX1404 KV2750 Brushless Motor (CCW)
The HappyModel EX1404 KV2750 brushless motor is engineered for lightweight, long-endurance SUB250 and micro FPV drones, delivering optimized efficiency and smooth throttle response on 4S LiPo power systems.
Features
- High-efficiency 2750KV brushless motor designed for 4S LiPo operation.
- Compact 14x4mm stator size with a total weight of only 8.7 grams.
- Features a 1.5mm shaft diameter for secure propeller mounting.
- 9N12P magnetic configuration ensures stable, cogging-free performance.
- Equipped with high-quality NMB bearings for durability and smooth rotation.
Out of stock
The HappyModel EX1404 is a precision-engineered brushless motor built for the demanding requirements of modern micro and SUB250-class FPV drones. Its 14x4mm stator and 2750KV rating are optimized to provide an exceptional thrust-to-weight ratio while maintaining high efficiency on 4S LiPo batteries, enabling extended flight times for long-range and endurance missions.
Constructed with high-grade materials, including imported NMB bearings, the motor ensures reliable, low-vibration operation. The 9N12P (9 stator teeth, 12 magnet poles) configuration minimizes cogging for ultra-smooth throttle transitions, making it ideal for both cinematic cruising and precise acro maneuvers in compact builds.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
