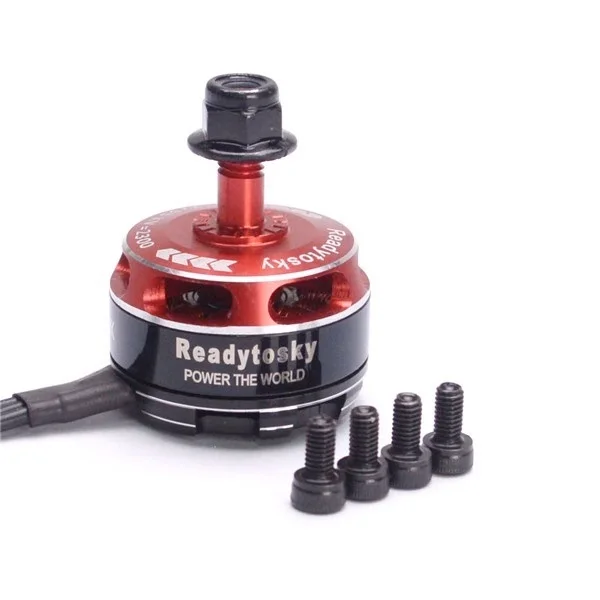

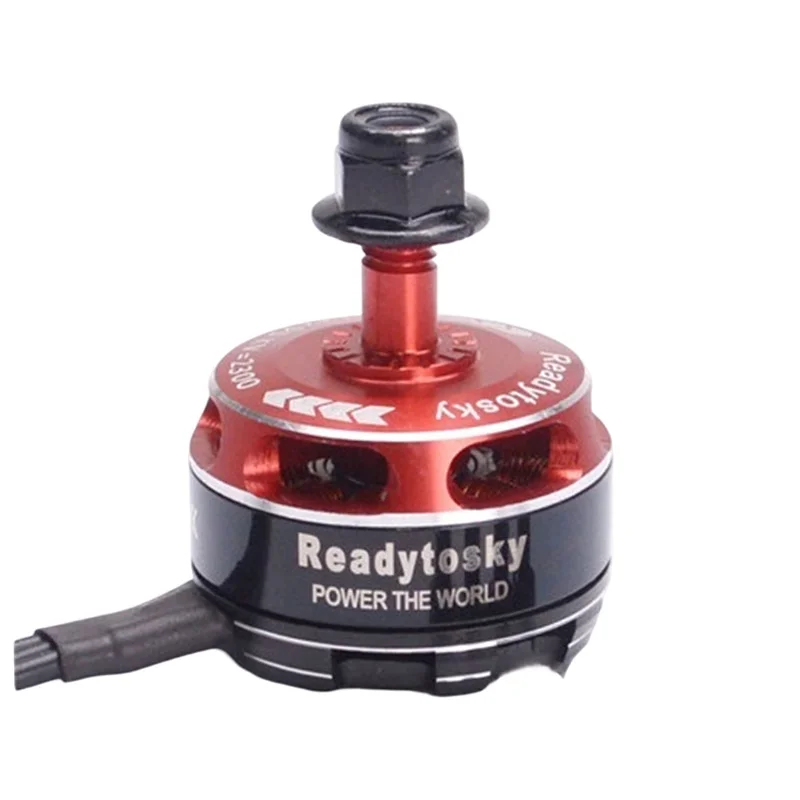

GT2205 2300KV Brushless DC Motor - Black Cap (CW Motor Rotation)
The GT2205 2300KV Brushless DC Motor is a lightweight, high-performance motor designed for 5-inch FPV racing and freestyle drones. It operates on 3S to 4S LiPo batteries and is compatible with 40-60A ESCs, delivering up to 495W of peak power for responsive flight characteristics.
Features
- 2300KV rating optimized for 5-inch propellers on 3S-4S LiPo systems.
- High-torque N52SH curved magnets for improved efficiency and power delivery.
- Precision-balanced rotor and quality bearings ensure smooth, vibration-free operation.
- Compact 2205 stator size (27.5mm length) provides a high power-to-weight ratio.
- Includes mounting hardware (4x M3 socket head cap screws) for secure frame installation.
Out of stock
The GT2205 2300KV motor is engineered for FPV drone pilots seeking a balance of thrust, efficiency, and durability. Its 2205 stator size and 2300KV winding are tuned for aggressive acrobatics and rapid throttle response on 5-inch quadcopter builds. The motor features a robust internal construction with high-grade bearings and a secure C-clip retention system for the shaft.
While offering high power output, the motor’s design prioritizes a compact form factor. Pilots should ensure adequate airflow in their frame design for optimal thermal management during sustained high-load maneuvers. The motor’s electrical characteristics, including a low internal resistance, contribute to its efficiency across the typical 3S and 4S voltage range used in racing and freestyle applications.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 2.75 × 2.7 cm |
