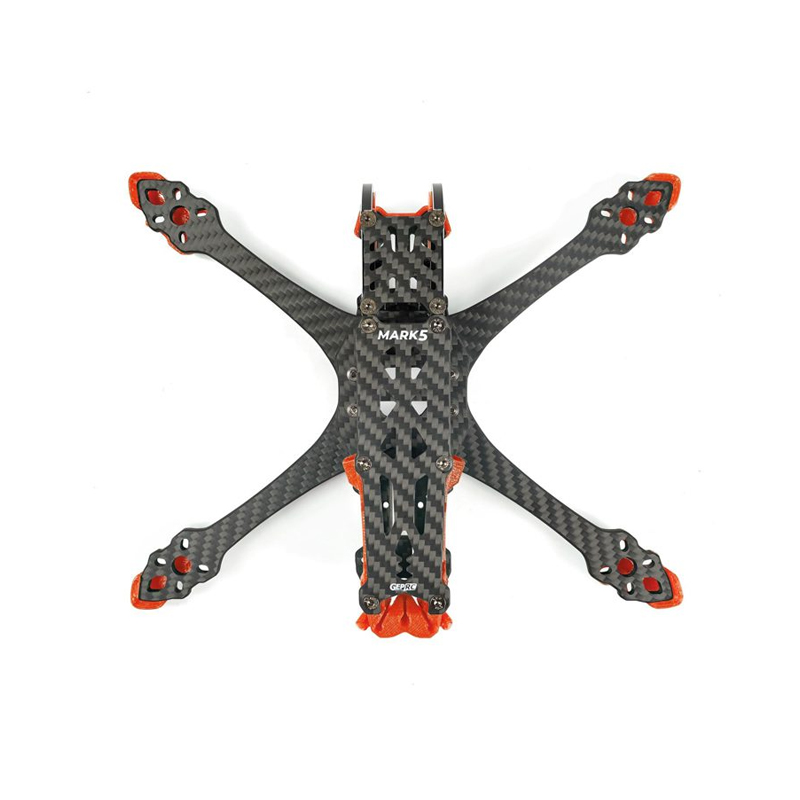

GEPRC MK5X-O3-PRO 5-Inch Freestyle Frame (OrangeRX)

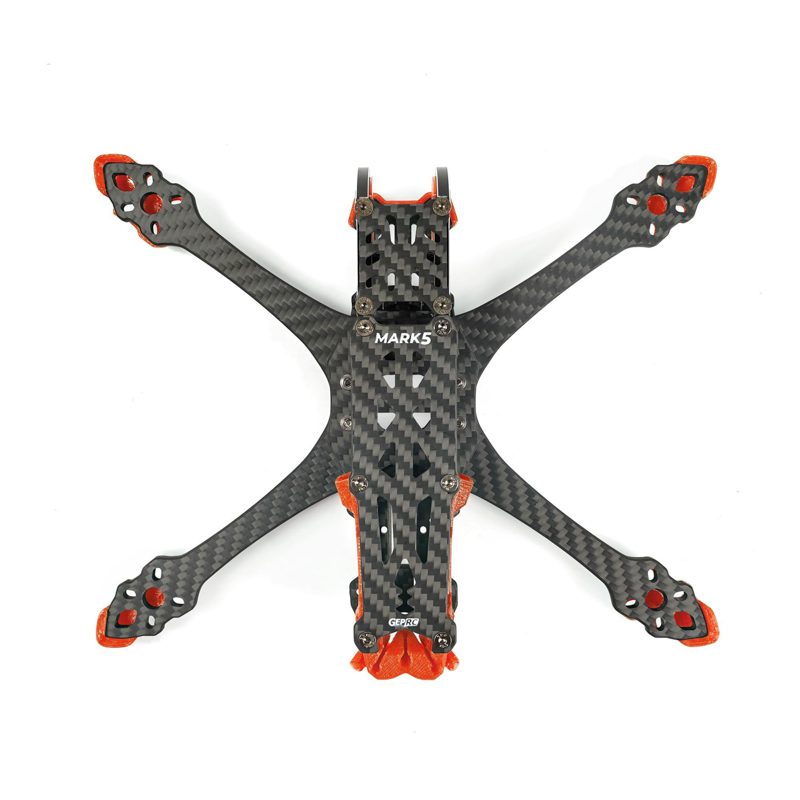

GEPRC MK5X-O3-PRO 5-Inch Freestyle Frame (OrangeRX) - Image 2

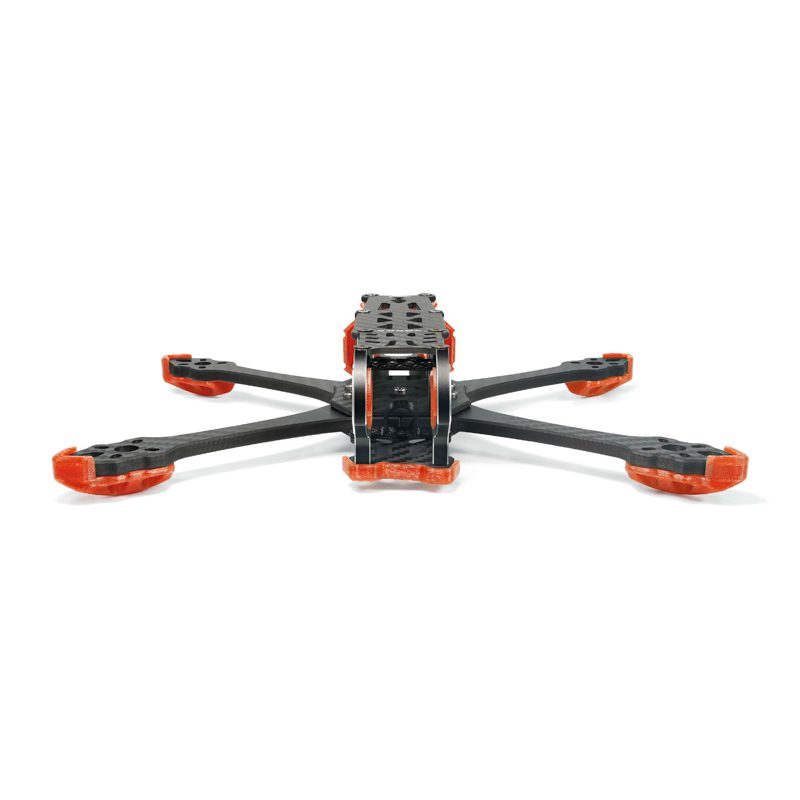

GEPRC MK5X-O3-PRO 5-Inch Freestyle Frame (OrangeRX) - Image 3
SKU: DRFC-0604
📋 GST Invoice Available

GEPRC MK5X-O3-PRO 5-Inch Freestyle Frame (OrangeRX)

₹6,829.00 (Inclusive of all taxes)
Out of Stock

The GEPRC MK5X-O3-PRO is a high-performance 5-inch freestyle drone frame meticulously engineered for full compatibility with the DJI O3 Air Unit. Featuring robust 7075-T6 aluminum camera plates and advanced carbon fiber construction, this frame delivers superior durability and optimized airflow for intense FPV flying.

Features

  • Optimized for DJI O3 Air Unit with dedicated mounting and efficient cooling features.
  • Features robust 7075-T6 aluminum camera plates and strong 5.0mm carbon fiber arms for extreme durability.
  • Integrated mounts for popular action cameras like GoPro, Insta360 GO2, and CaddxFPV Peanut.
  • Includes an EVA vibration damping system to ensure stable, jello-free cinematic footage.
  • Advanced TPU printed parts incorporate cooling vents to maintain optimal VTX operating temperatures.

Out of stock

Description

The GEPRC MK5X-O3-PRO Frame in OrangeRX is a meticulously engineered platform designed to elevate your HD digital FPV experience, specifically optimized for seamless integration with the DJI O3 Air Unit. This Pro edition frame combines advanced material science with thoughtful design, featuring robust 7075-T6 aluminum camera plates and a high-strength carbon fiber chassis. The construction ensures exceptional durability against impacts while minimizing vibrations, critical for maintaining stable flight characteristics and clear video feeds.

Its intelligent design incorporates specialized TPU printed parts with integrated cooling vents, facilitating superior airflow to the O3 Air Unit and other sensitive electronics. This thermal management system is crucial for sustained high-performance operation, especially during demanding freestyle maneuvers or extended cinematic flights. The MK5X-O3-PRO is not only built for resilience but also for versatility, offering native support for the 4K 60FPS O3 camera and various action cameras such as GoPro systems, making it an ideal choice for pilots seeking reliability and quality in their freestyle, cinematic, or high-speed FPV applications.

Key Features

  • Fully optimized for DJI O3 Air Unit with dedicated mounting points.
  • Aluminum camera plates crafted from robust 7075-T6 alloy for impact resistance.
  • Advanced TPU cooling parts designed to improve airflow to the video transmitter.
  • Includes versatile mounts for GoPro, Naked GP8/10, Insta360 GO2, and CaddxFPV Peanut cameras.
  • Strong carbon fiber construction with 5.0mm thick arms for superior durability and rigidity.
  • Integrated EVA vibration damping system for enhanced camera stability and jello reduction.
  • Comprehensive accessory and tool set included for convenient assembly and maintenance.
  • Specifically engineered for advanced freestyle and cinematic FPV flight applications.

Applications

  • High-performance FPV freestyle flying.
  • Cinematic FPV videography with HD action cameras.
  • High-speed racing and acrobatic drone maneuvers.
  • Long-range FPV exploration requiring robust airframes.

Technical Specifications

Item TypeDrone Frame
Model No. / NameMK5X-O3-PRO
MaterialCarbon Fiber + 7075-T6 Aluminum
CompatibilityDJI O3, GoPro, CaddxFPV Peanut, Insta360
Top Plate Thickness2.5mm
Bottom Plate Thickness2.5mm
Compatible Propeller5-Inch
Arm Thickness5.0mm
Wheelbase225 mm
ColorOrangeRX

Frequently Asked Questions

What makes the GEPRC MK5X-O3-PRO frame ideal for the DJI O3 Air Unit?

The MK5X-O3-PRO is specifically designed with dedicated mounting and advanced TPU cooling vents that optimize airflow directly to the DJI O3 Air Unit. This ensures the digital VTX maintains stable operating temperatures during demanding flights, preventing overheating and maintaining consistent video quality for a superior HD FPV experience.

What action cameras are compatible with the MK5X-O3-PRO frame, and how is camera stability ensured?

This frame offers broad compatibility for action cameras, including various GoPro models (standard and Naked GP8/10), Insta360 GO2, and CaddxFPV Peanut. Stability is ensured through robust 7075-T6 aluminum camera plates and an integrated EVA vibration damping system, which effectively reduces jello effect for smooth, cinematic footage even in aggressive flight.

What are the key materials used in the GEPRC MK5X-O3-PRO frame, and how do they contribute to its durability?

The frame is constructed from high-strength carbon fiber, particularly the 5.0mm thick arms, providing excellent rigidity and impact resistance. Complementing this, 7075-T6 aluminum is used for the camera plates, a premium alloy known for its exceptional strength-to-weight ratio. These materials collectively ensure the frame's robust durability against crashes.

Can the GEPRC MK5X-O3-PRO frame be used for both freestyle and cinematic FPV?

Yes, the GEPRC MK5X-O3-PRO frame is explicitly engineered for both advanced freestyle and cinematic FPV applications. Its durable carbon fiber and aluminum construction, coupled with effective vibration damping and wide action camera compatibility, make it versatile. This design allows pilots to capture smooth, high-quality cinematic shots or perform aggressive freestyle maneuvers with confidence.

Package Includes

  • 1 x 2.0mm small top plate
  • 1 x 2.5mm large top plate
  • 1 x 2.5mm front bottom plate
  • 1 x 2.5mm rear bottom plate
  • 2 x 5.0mm front arms
  • 2 x 5.0mm rear arms
  • 1 x 5.0mm arm limit plate
  • 1 x 2.0mm front protection plate
  • 1 x Camera aluminum part
  • 1 x Set of screws
  • 1 x Front protector (3D printed)
  • 4 x Motor shock pads (3D printed)
  • 1 x Buzzer Holder (3D printed)
  • 1 x VTX antenna mount (3D printed)
  • 1 x TBS antenna mount (3D printed)
  • 1 x GP camera mount (3D printed)
  • 1 x Naked camera GP8 Base (3D printed)
  • 1 x Camera vibration reduction mount (3D printed)
  • 1 x O3 VTX mount (3D printed)
  • 8 x M3x8 flight controller shock absorbing ball
  • 4 x 10x50mm Motor hubs
  • 1 x M15x250 Battery strap
  • 2 x M20x250 Battery straps
  • 2 x Battery non-slip mat
  • 1 x EVA camera base
  • 1 x EVA camera base (with backrest)
  • 1 x 3M double-sided tape
  • 1 x 1.5mm L-type screwdriver
  • 1 x 2.0mm L-type screwdriver
  • 1 x 3.0mm L-type screwdriver
  • 1 x M8 Wrench
  • 1 x Antenna fixed tube

Additional Information

Dimensions 21 × 11 × 6 cm
