GEPRC MK5D-O3 PRO 5-Inch Freestyle Frame OrangeRX

₹7,349.00 (Inclusive of all taxes)
Out of Stock

The GEPRC MK5D-O3 PRO frame is engineered for cinematic and freestyle FPV, seamlessly integrating the DJI O3 Air Unit with dedicated cooling. Constructed from durable 7075-T6 aluminum and carbon fiber, it ensures robust performance and minimal vibrations for capturing pristine footage.

Features

  • Optimized for direct integration of the DJI O3 Air Unit with enhanced cooling.
  • Features a robust structure of 7075-T6 aluminum camera plates and high-grade 3K carbon fiber arms.
  • Supports a wide range of HD action cameras including GoPro, Insta360, and CaddxFPV Peanut.
  • Offers a versatile DC layout for clean footage and X layout for aggressive freestyle maneuvering.

Out of stock

Description

The GEPRC MK5D-O3 PRO Frame in striking OrangeRX delivers a premium foundation for high-performance freestyle and cinematic FPV drones. Designed specifically around the DJI O3 Air Unit, this frame incorporates intelligent thermal management with dedicated TPU parts and cooling vents to ensure the O3 VTX operates at optimal temperatures, preventing thermal throttling during demanding flights.

Its construction blends high-strength 7075-T6 aluminum for rugged camera side plates with resilient 3K carbon fiber for the main frame components and 5mm thick arms. This combination provides exceptional durability and stiffness while minimizing unwanted vibrations, critical for stable video capture. The frame supports both a DC layout for prop-free views essential for cinematic work and an X layout for dynamic freestyle flying. With versatile mounting options for various HD action cameras and flight stacks (16x16mm, 19x19mm), the MK5D-O3 PRO empowers pilots to build a versatile and high-performing FPV platform.

Key Features

  • Rugged camera side plates crafted from high-strength 7075-T6 aluminum alloy for superior camera protection.
  • Freestyle-friendly squashed X frame design paired with a DC layout option for versatile flight characteristics.
  • Shock absorption frame design ensures stable electronic system performance by isolating vibrations.
  • Dual 3D printed camera mounts accommodate GoPro, Naked GP8/10, Insta360 GO2, and CaddxFPV Peanut.
  • TPU mounts feature cooling vents specifically for optimal DJI O3 VTX heat management.
  • Motor mounting supports both 16x16mm and 19x19mm hole patterns for broad motor compatibility.
  • Separate housing provided for capacitor and buzzer, enhancing electronics safety and ease of assembly.
  • Thick 5mm carbon fiber arms offer exceptional durability for demanding freestyle and crash resilience.

Applications

  • High-performance FPV freestyle flying.
  • Cinematic FPV drone videography with clean footage.
  • Long-range FPV exploration and cruising.
  • Action camera platform for capturing dynamic aerial content.

Technical Specifications

Item TypeDrone Frame
Model No. / NameMK5D-O3-PRO
Material3K Carbon Fiber + 7075-T6 Aluminum Alloy
CompatibilityDJI O3 Air Unit
Top Plate Thickness2.5mm
Bottom Plate Thickness2.5mm
Compatible Prop5-Inch
Arm Thickness5mm
Wheelbase230mm
ColorOrangeRX

Frequently Asked Questions

What makes the GEPRC MK5D-O3 PRO frame ideal for DJI O3 Air Unit integration?

This frame is specifically designed with dedicated mounting points and TPU parts that include cooling vents. This ensures optimal heat dissipation for the DJI O3 VTX, preventing thermal throttling during intense flights and preserving video quality. The integrated design simplifies assembly and wiring, providing a clean setup.

What materials are used in the MK5D-O3 PRO frame, and what are their benefits?

The frame combines high-strength 7075-T6 aluminum alloy for camera side plates and 3K carbon fiber for the main structure and arms. This blend offers superior rigidity, exceptional durability against crashes, and effective vibration damping. The robust construction ensures a stable platform for your electronics and camera, enhancing flight performance.

Can the GEPRC MK5D-O3 PRO accommodate different flight controllers and HD cameras?

Yes, the MK5D-O3 PRO supports standard flight controller mounting patterns, including 16x16mm and 19x19mm, offering broad compatibility. It also features dual 3D printed camera mounts designed to fit various HD action cameras like GoPro, Insta360 GO2, CaddxFPV Peanut, and Naked GoPro versions. This versatility allows pilots to customize their setup.

What prop size and flight style is this 230mm wheelbase frame best suited for?

With a 230mm wheelbase and 5mm thick arms, the MK5D-O3 PRO is optimized for 5-inch propellers. Its versatile DC and squashed X layouts make it excellent for both cinematic FPV, where prop-free views are crucial, and aggressive freestyle flying. The frame's robust design handles high-throttle maneuvers and demanding aerial dynamics effectively.

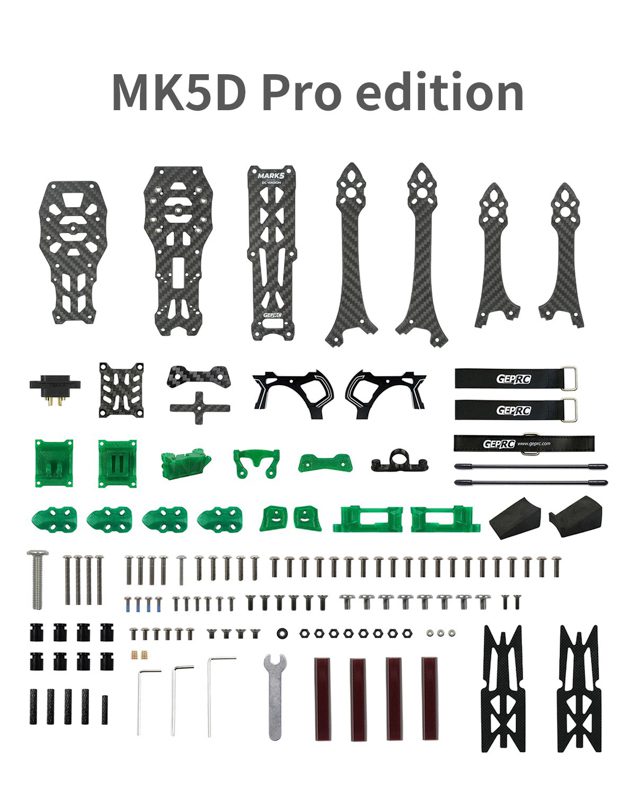

Package Includes

  • 1 x 2.0mm Small Top Plate
  • 1 x 2.5mm Large Top Plate
  • 1 x 2.5mm Front Bottom Plate
  • 1 x 2.5mm Rear Bottom Plate
  • 2 x 5.0mm Front Arms
  • 2 x 5.0mm Rear Arms
  • 1 x 5.0mm Arm Limit Plate
  • 1 x 2.0mm Front Protection Plate
  • 1 x Camera Aluminum Part
  • 1 x Screw Set
  • 1 x Front Protector (3D Printed)
  • 4 x Motor Shock Pads (3D Printed)
  • 1 x Buzzer Holder (3D Printed)
  • 1 x VTX Antenna Mount (3D Printed)
  • 1 x TBS Antenna Mount (3D Printed)
  • 1 x GP Camera Mount (3D Printed)
  • 1 x Naked GP8 Camera Base (3D Printed)
  • 1 x Camera Vibration Reduction Mount (3D Printed)
  • 1 x O3 VTX Mount (3D Printed)
  • 8 x M3x8 Flight Controller Shock Absorbing Balls
  • 4 x 10x50mm Motor Hubs
  • 1 x M15x250 Battery Strap
  • 2 x M20x250 Battery Straps
  • 2 x Battery Non-slip Mats
  • 1 x EVA Camera Base
  • 1 x EVA Camera Base (with Backrest)
  • 1 x 3M Double-sided Tape
  • 1 x 1.5mm L-Type Screwdriver
  • 1 x 2.0mm L-Type Screwdriver
  • 1 x 3.0mm L-Type Screwdriver
  • 1 x M8 Wrench
  • 1 x Antenna Fixed Tube

Additional Information

Dimensions 21 × 11 × 6 cm
