GEPRC GR2004 1750KV Brushless Motor
GEPRC GR2004 1750KV Brushless Motor - Image 2
SKU: DRFC-2611
📋 GST Invoice Available

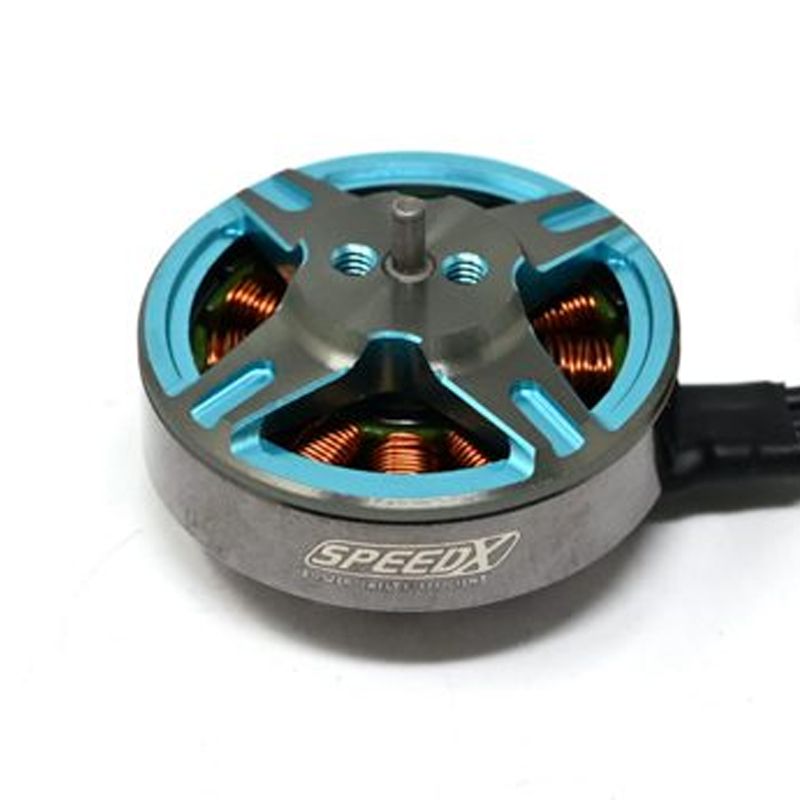

GEPRC GR2004 1750KV Brushless Motor

₹1,879.00 (Inclusive of all taxes)
Out of Stock

The GEPRC GR2004 1750KV brushless motor is engineered for lightweight Toothpick and Long Range FPV drone builds, offering a high KV rating for responsive performance across a 2S to 6S LiPo voltage range.

Features

  • High-performance 1750KV motor optimized for 5-inch propellers on Toothpick and Long Range FPV drones.
  • Wide 2S to 6S LiPo battery compatibility for versatile power and flight time configurations.
  • Lightweight 16.8g construction with a 20mm stator diameter and 4mm stator height.
  • Features high-grade N52H magnets and a dual-bearing structure for durability and smooth operation.
  • Includes a 1.5mm shaft diameter and mounting hardware for secure installation.

Out of stock

Description

The GEPRC GR2004 1750KV motor is a compact brushless motor designed to deliver high thrust-to-weight ratios for agile FPV platforms. Its 20x4mm stator size provides a balanced torque profile suitable for 5-inch propellers, enabling efficient long-range cruising and dynamic freestyle maneuvers.

Engineered with robust N52H magnets and a precision dynamic balancing process, the motor ensures minimal vibration for stable video footage and extended bearing life. The dual-bearing support on the shaft enhances durability under high-RPM loads typical of 4S to 6S operation.

Key Features

  • High KV Design: 1750KV rating provides excellent throttle response and high RPM for aggressive flight profiles on lightweight frames.
  • Wide Voltage Range: Compatible with 2S to 6S LiPo batteries, allowing pilots to tune power and efficiency for specific build goals.
  • Optimized Stator Geometry: 20mm diameter and 4mm height stator offers an optimized performance-to-weight ratio for 5-inch propeller setups.
  • Premium Magnetic Circuit: N52H-grade magnets deliver strong magnetic flux for consistent torque and efficiency.
  • Dual Bearing Support: Incorporates two high-quality bearings for smooth shaft rotation and reduced mechanical wear.
  • Lightweight Construction: Weighing only 16.8g, it minimizes overall drone weight to enhance flight time and agility.
  • Thermal Management: Motor bell and stator design promote effective heat dissipation during sustained high-load operation.

Applications

  • Lightweight 5-inch Toothpick FPV drones requiring high KV motors for freestyle and racing.
  • Long Range (LR) FPV builds where efficient 4S or 6S operation is needed for extended flight times.
  • Micro and sub-250g FPV drones utilizing 5-inch props on a 2S or 3S power system for agile performance.

Technical Specifications

Model NumberGR2004
Motor KV1750 KV
Stator Size20mm (Dia) x 4mm (H)
Shaft Diameter1.5 mm
Compatible Battery2S to 6S LiPo
Weight (Approx.)16.8 g
Propeller Compatibility5-inch (recommended)
Magnet GradeN52H
Bearing CountDual Bearing

Frequently Asked Questions

What is the recommended propeller size for the GEPRC GR2004 1750KV motor?

The GR2004 1750KV motor is optimized for 5-inch propellers. This stator size and KV combination provides the ideal torque and RPM for efficient thrust on lightweight Toothpick and Long Range frames. Always ensure your propeller pitch and blade count are within the motor's current rating for your chosen battery voltage.

Can I run this motor on a 6S LiPo battery?

Yes, the GEPRC GR2004 motor is rated for 2S to 6S LiPo batteries. When using 6S, ensure your Electronic Speed Controller (ESC) is also rated for 6S operation and can handle the increased current draw. Monitor motor temperatures initially, as the high KV will result in very high RPMs on 6S.

What is the shaft diameter and what mounting hardware is included?

The motor features a 1.5mm diameter shaft. The package includes four M2 mounting screws: two M2x5mm and two M2x6mm button head screws. These are suitable for mounting to motor plates with standard M2 threaded holes, commonly found on 20x20mm and 25.5x25.5mm mounting patterns.

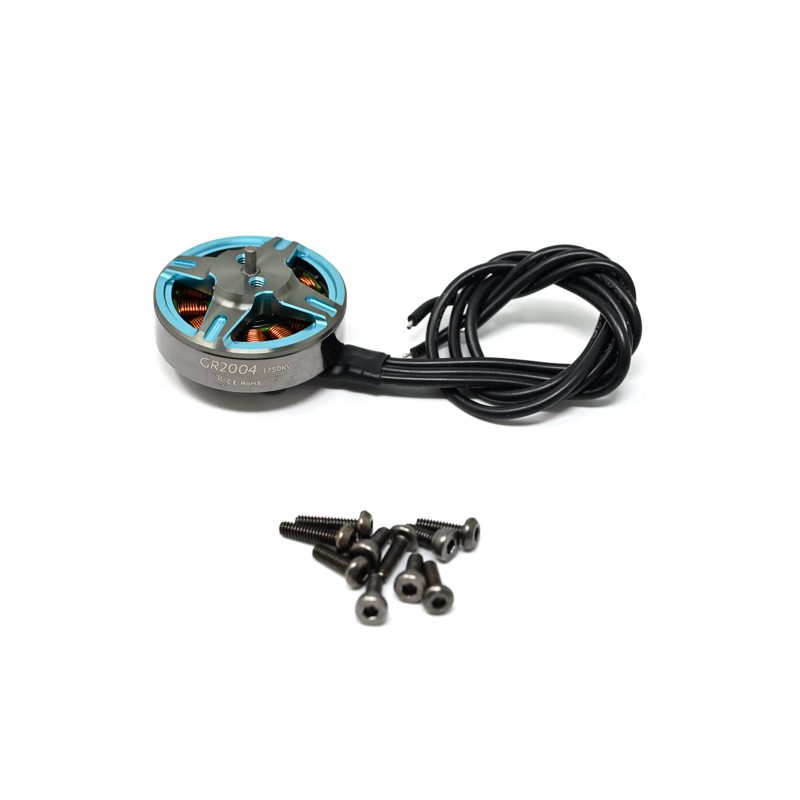

Package Includes

  • 1 x GEPRC GR2004 1750KV Motor
  • 2 x M2x5 Button Head Screws
  • 2 x M2x6 Button Head Screws
