SKU: DRFC-2211
📋 GST Invoice Available

Generic TBS Triumph Antenna Clone - SMA Male Connector

₹479.00 (Inclusive of all taxes)
Out of Stock

This high-quality clone of the TBS Triumph antenna is a 5.8GHz RHCP FPV antenna with an SMA male connector, designed for robust signal reception and transmission on 5.8GHz analog video systems.

Features

  • 5.8GHz RHCP antenna with SMA male connector for direct VTX or VRX mounting.
  • Features a 1.26 dBic gain and a low 0.74 axial ratio for clean, consistent signal.
  • Constructed with a double-jacket semi-rigid cable for superior impact and crash resistance.
  • Ultrasonic-welded, foam-infused cover provides ultimate protection for the internal elements.
  • Compact 82mm length and low weight minimize drag and balance issues on FPV drones.

Out of stock

Description

The Generic TBS Triumph Antenna Clone is engineered to deliver the performance characteristics of the original in a durable, cost-effective package. Its right-hand circular polarization (RHCP) is optimized for 5.8GHz FPV video links, reducing multipath interference and providing a stable video feed in diverse flight environments.

Built for the rigors of FPV flying, the antenna utilizes a heavy-duty, double-jacket semi-rigid coaxial cable that resists kinking and maintains signal integrity during crashes. The external shell is ultrasonically welded and infused with foam, creating a lightweight yet exceptionally protective housing that shields the delicate radiating element from physical damage.

Key Features

  • High-Performance RHCP Design: Optimized for 5.8GHz FPV bands (5500-6000 MHz) to minimize video signal nulls and dropouts.
  • Enhanced Durability: Double-jacket semi-rigid cable construction withstands repeated impacts and bending stress.
  • Crash-Protective Housing: Ultrasonic-welded, foam-infused cover offers superior protection for the internal antenna element.
  • Precision SMA Male Connector: Tin-plated connector ensures reliable electrical contact and corrosion resistance.
  • Optimized Electrical Specs: 1.26 dBic gain and 0.74 axial ratio provide a balanced blend of signal strength and consistency.
  • Lightweight & Compact: Minimal aerodynamic profile and weight reduce the impact on drone flight characteristics.

Applications

  • Replacement or upgrade antenna for 5.8GHz analog FPV video transmitters (VTX) on racing and freestyle drones.
  • Receiver antenna for 5.8GHz FPV goggles or ground station video receivers (VRX).
  • Ideal for pilots seeking a durable, performance-oriented antenna clone for aggressive flying.
  • Suitable for mini-quads and micro-drones where a compact, lightweight antenna is required.

Technical Specifications

Item TypeAntenna
Connector TypeSMA
Connector GenderMale
Frequency Range5500 – 6000 MHz (5.5 – 6 GHz)
PolarizationRHCP (Right-Hand Circular Polarization)
Gain1.26 dBic
Axial Ratio0.74
Antenna Length82 mm

Frequently Asked Questions

Is this an original TBS (TBS) Triumph antenna?

No, this is a high-quality clone of the TBS Triumph antenna. It is manufactured to replicate the performance and durable construction of the original design, including the RHCP polarization, 5.8GHz frequency range, and robust double-jacket cable.

What is the connector type and gender on this antenna?

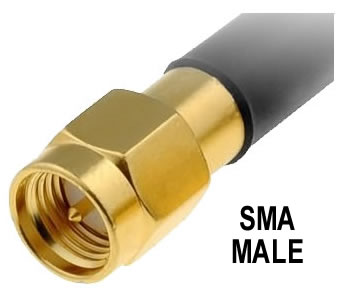

This antenna features an SMA male connector. The male connector has a center pin and external threads, designed to screw directly into a female SMA port on a video transmitter (VTX), video receiver (VRX), or FPV goggles.

What does RHCP polarization mean for FPV flying?

RHCP stands for Right-Hand Circular Polarization. It means the radio wave rotates in a specific direction as it travels. Using RHCP on both the transmitter and receiver antennas significantly reduces multi-path interference and signal degradation caused by reflections, leading to a cleaner and more stable video feed.

How durable is this antenna for crashing?

The antenna is built for crash resistance. It uses a double-jacket semi-rigid coaxial cable that is highly resistant to kinking and breakage. Furthermore, the external plastic cover is ultrasonically welded and foam-infused, providing excellent impact protection for the internal antenna element during hard landings or collisions.

Package Includes

  • 1 x TBS Triumph Antenna Clone (SMA Male Connector)

Additional Information

Weight 0.04 kg
Dimensions 10 × 3 × 3 cm
