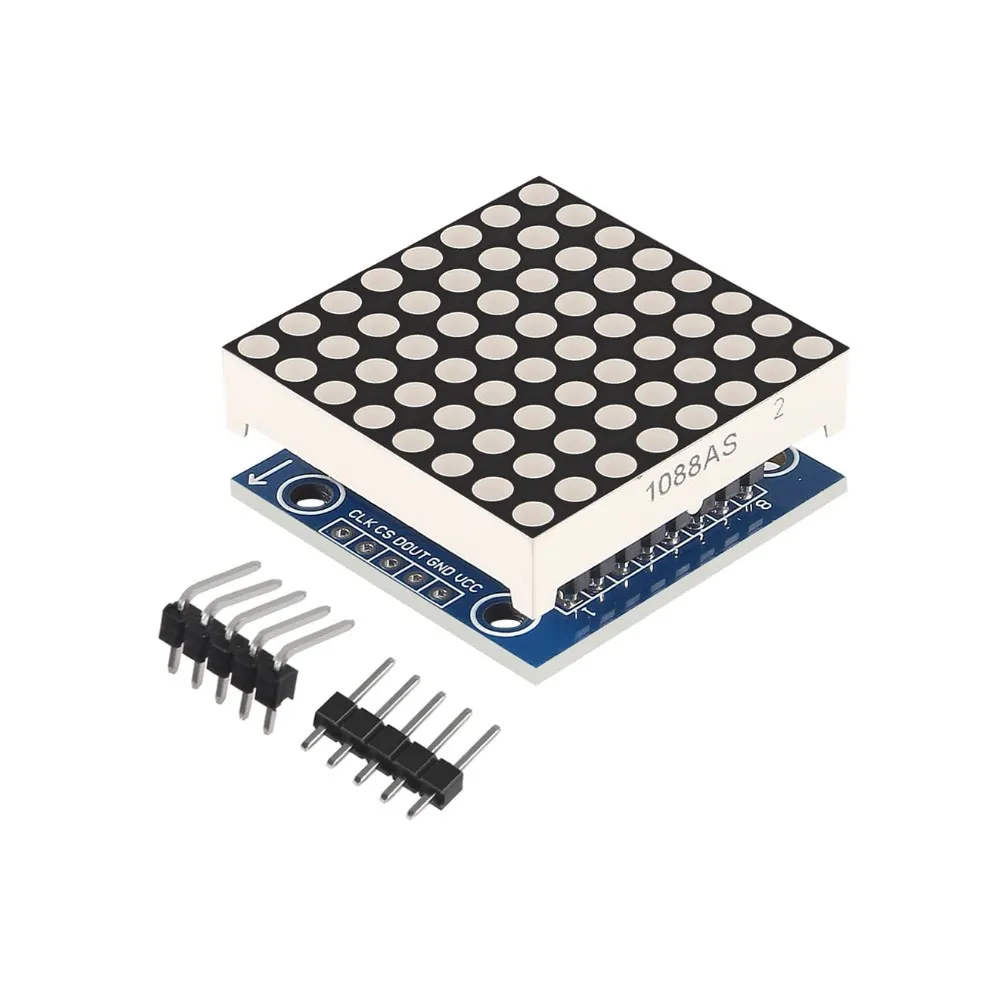

Generic MAX7219 8×8 Mini Dot Matrix LED Display | SPI Interface | Cascading Capability
₹2.00₹5.00 (price_including_tax) (-60%)
Unlock dynamic visual feedback for your projects. Seamlessly integrate this display into microcontrollers for custom interfaces and status indicators. Engineered for reliable, clear, and energy-efficient performance in diverse applications.
Compact 8×8 LED matrix display for dynamic visual feedback in embedded systems and DIY projects.
Simplifies complex LED driving with a single chip, making setup straightforward and efficient.
Daisy-chain multiple units to effortlessly expand your visual output for larger projects.
Display text, numbers, or custom graphics, bringing projects to life with dynamic feedback.
The Engineering Behind MAX7219 8×8 Mini Dot Matrix LED Display
The 8×8 Mini Dot Matrix LED Display, commonly driven by the MAX7219 serial display driver, provides a compact and versatile solution for visual output in embedded systems. It consists of 64 individual LEDs arranged in an 8×8 grid, allowing for the display of characters, symbols, and basic graphics. The MAX7219 chip handles multiplexing, reducing the number of I/O pins required from a microcontroller and simplifying programming via its serial peripheral interface (SPI).
Constructed with robust, individually addressable LEDs, this module ensures consistent brightness and a long operational lifespan. Its design emphasizes ease of integration, making it a staple for educational electronics, prototyping, and small-scale industrial control panels where clear, compact visual feedback is essential for user interaction and system status indication.
SPI Serial Interface
The module’s utilization of the SPI serial communication protocol allows for efficient data transfer with minimal wiring, typically requiring only three data lines (DATA, CLK, LOAD/CS) plus power and ground. This significantly reduces microcontroller I/O overhead, freeing up valuable pins for other sensors or actuators, and enables rapid refresh rates for smooth display animations without complex parallel bus management.
Cascading Capability for Larger Displays
A key architectural advantage of the MAX7219 driver is its daisy-chaining capability. Multiple 8×8 matrix modules can be connected in series using the same SPI bus, allowing engineers and hobbyists to create larger, expanded display arrays (e.g., 8×16, 8×24, 8×32) with a minimal increase in microcontroller I/O. This feature provides scalable visual solutions for projects requiring more extensive information display.
Optimized for Performance & Integration
- LED Configuration: 8×8 Dot Matrix Array
- Driver Chip: MAX7219 (integrated)
- Operating Voltage: 5V DC
- Communication Protocol: SPI (Serial Peripheral Interface)
- LED Color: Red
- Module Dimensions: Approx. 32mm x 32mm x 14mm
- Pinout: VCC, GND, DIN, CS, CLK
- Cascading Support: Yes, multiple modules can be daisy-chained
Features & Benefits
- 8×8 LED Grid: Provides 64 individually controllable LEDs for versatile character and graphic display.
- Integrated MAX7219 Driver: Simplifies wiring and code by handling LED multiplexing and serial communication.
- SPI Interface: Uses a common 3-wire serial protocol for easy integration with most microcontrollers.
- Daisy-Chainable Design: Connect multiple modules to create larger displays using the same data lines.
- Low Power Consumption: Efficient LED driving ensures minimal current draw, suitable for battery-powered projects.
- Compact Form Factor: Ideal for projects with limited space, offering clear visuals in a small package.
Pro-Grade Advantages
- Minimal microcontroller I/O pins required due to MAX7219 serial interface.
- High flexibility for displaying custom characters, animations, and numerical data.
- Daisy-chain capability allows for scalable display sizes without complex wiring.
- Robust multiplexing control provides consistent brightness across all LEDs.
Technical Considerations
- Limited resolution (8×8) may not be suitable for detailed graphical interfaces.
- Requires external programming and library integration for display content management.
What is the primary function of an 8×8 dot matrix LED display?
Its primary function is to visually represent characters, symbols, and simple graphics, providing dynamic feedback in embedded systems.
How does the MAX7219 driver simplify operation?
The MAX7219 driver handles LED multiplexing internally, reducing the number of microcontroller I/O pins needed and simplifying software control via SPI.
Can multiple 8×8 LED matrix modules be connected together?
Yes, these modules are designed for daisy-chaining, allowing multiple units to be connected serially using the same SPI bus for larger displays.
What communication protocol does this display module use?
This module typically uses the Serial Peripheral Interface (SPI) protocol, which is a synchronous serial data communication interface.
What voltage is required to power this display?
The standard operating voltage for most 8×8 MAX7219 LED matrix modules is 5V DC, compatible with common microcontrollers.
| Specification | Value |
|---|---|
| LED Array | 8×8 (64 Pixels) |
| Driver IC | MAX7219 |
| Operating Voltage | 5V DC |
| Max Current Consumption | Approx. 150mA (all LEDs ON) |
| Communication Interface | SPI (3-wire) |
| LED Color | Red |
| Module Dimensions | 32mm x 32mm x 14mm (approx.) |
| Mounting Holes | 4 x M3 (typical) |
| Daisy-Chain Support | Yes |
| Operating Temperature | 0°C to 70°C |
Additional information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 3.2 × 3.2 × 1.4 cm |
| Brand | Generic |
| Technology | LED Dot Matrix Display |
| Operating Voltage | 5V DC |
| Control Interface | SPI |
| Main Controller | MAX7219 |
| Channels | 64 (8×8 Pixels) |
| Difficulty Level | Intermediate |
