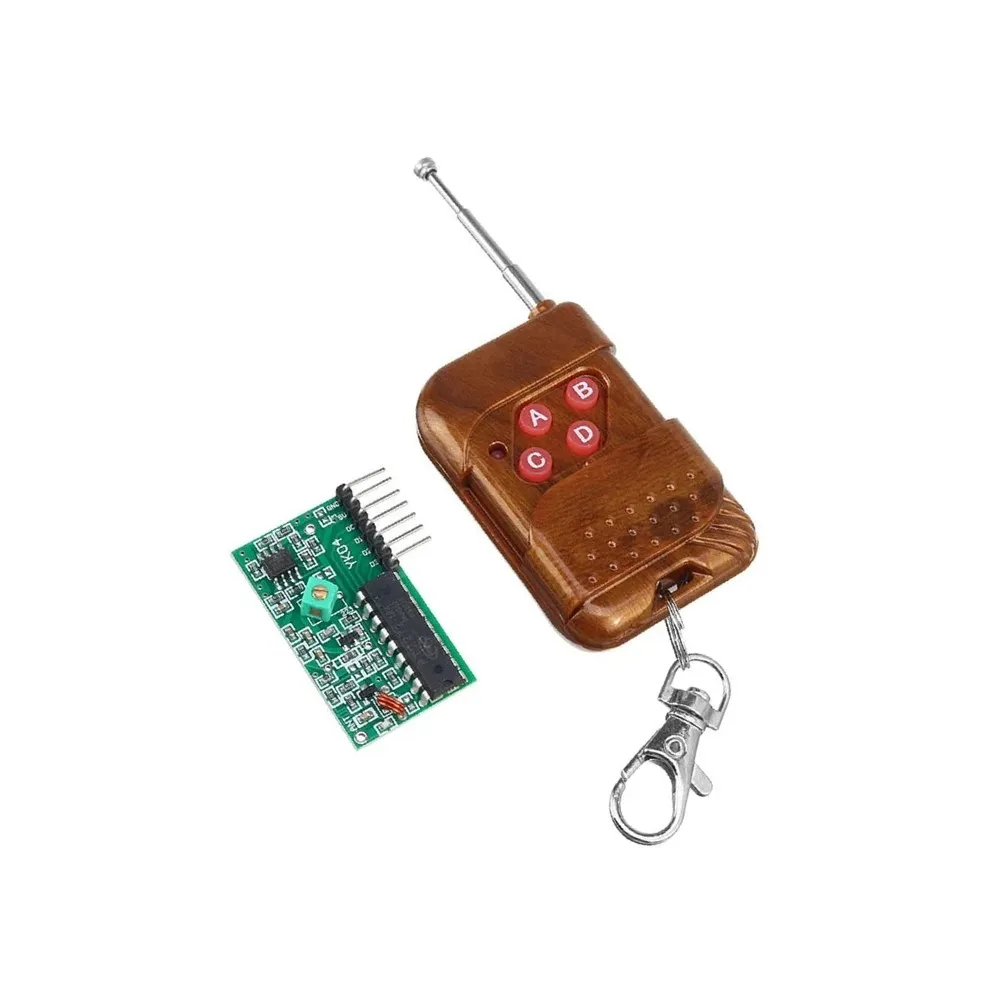

Generic 4 Channel RF Transceiver Module | Wireless Non-Locking Control | Four Button Operation

The Engineering Behind Generic 4 Channel RF Transceiver Module

The Generic 4 Channel Wireless RF Transceiver Module serves as a fundamental building block for remote control applications, leveraging radio frequency (RF) communication for robust wireless data transmission. This module typically operates within a common ISM band (e.g., 315MHz or 433MHz), employing an integrated encoder/decoder chipset (like PT2262/PT2272 or EV1527/EV1527 compatible variants) to manage multi-channel data. Its non-locking (momentary) mode ensures outputs are active only while the corresponding button signal is received, making it ideal for transient control commands such as motor activation or light toggles. The architecture prioritizes simplicity and direct control, allowing for straightforward integration with microcontrollers or standalone use.

Constructed with standard PCB fabrication techniques and readily available components, this module offers a cost-effective yet reliable solution for basic wireless control. Its design emphasizes ease of use for hobbyists, educators, and industrial prototyping, featuring clearly marked pinouts for power, ground, and channel outputs. The module’s robust design can withstand typical prototyping environments, providing a dependable wireless link for a variety of applications.

Non-Locking (Momentary) Operation

The non-locking mode is crucial for applications requiring transient activation, where an action should only persist as long as the remote button is pressed. This prevents unintended continuous operation, enhancing safety and control precision in systems like robotic arms, door openers, or simple relay control, ensuring resources are only engaged when explicitly commanded.

Integrated Transceiver Functionality

Unlike separate transmitter and receiver modules, this integrated transceiver design offers a complete two-way communication solution within a single compact unit. This simplifies wiring, reduces board space, and streamlines the development process for projects requiring both sending and receiving control signals or status feedback wirelessly, offering greater flexibility in system design.

Optimized for Performance & Integration

• Operating Voltage: Typically 3.5V to 12V DC
• Operating Frequency: Common ISM band (e.g., 315MHz / 433MHz)
• Channels: 4 Independent Control Channels
• Output Mode: Non-Locking (Momentary)
• Modulation Type: ASK (Amplitude Shift Keying)
• Receiver Sensitivity: -105dBm (Typical)
• Communication Range: Up to 50-100 meters (open field)
• Interface: Standard Pin Headers (VCC, GND, D0, D1, D2, D3)

Features & Benefits

• 4 Independent Channels: Provides versatile control over multiple functions or devices simultaneously from a single remote.
• Non-Locking Mode: Ensures precise momentary control, ideal for push-button actions like motor jogging or light toggling.
• Integrated Transceiver: Combines send and receive capabilities into one module, simplifying bidirectional wireless communication setups.
• Wide Operating Voltage: Compatible with common power sources (3.5V-12V), facilitating easy integration into diverse circuits.
• ISM Band Operation: Utilizes standard frequencies (e.g., 315/433MHz) for broad compatibility and regulatory ease.
• Easy Microcontroller Interface: Direct pin outputs allow seamless connection with Arduino, Raspberry Pi, and other development boards.
