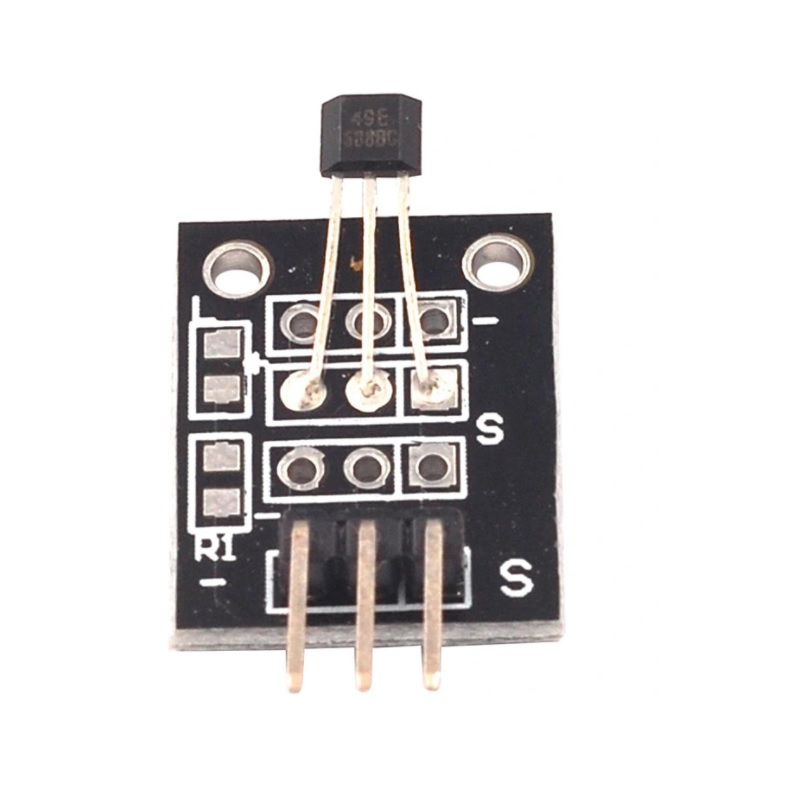

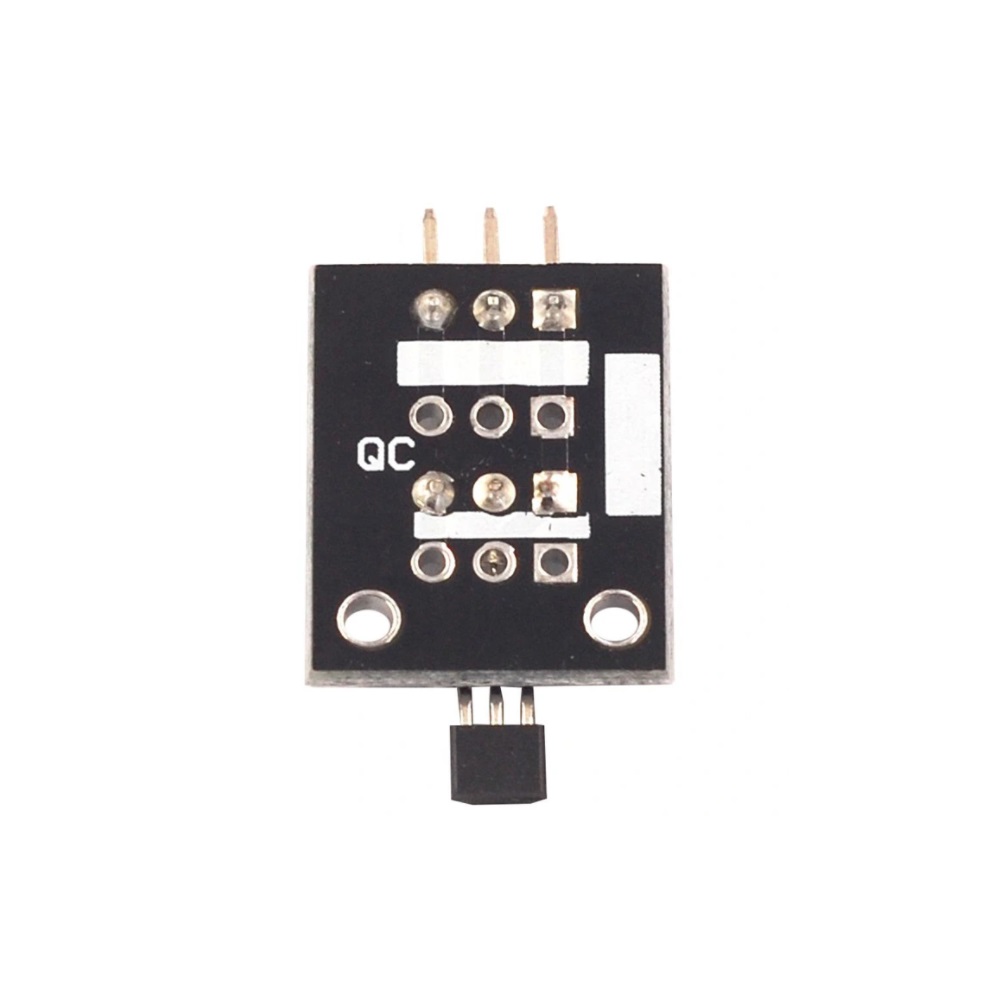

Generic SS49E Linear Hall Effect Sensor Module - Analog Output
The SS49E Linear Hall Effect Sensor Module is a compact analog-output magnetic field sensor compatible with 5V Arduino boards and other microcontrollers. It provides a continuous voltage output proportional to the strength and polarity of an applied magnetic field, making it ideal for precise position sensing, current measurement, and magnetic field mapping projects.
Features
- Analog output voltage proportional to magnetic flux density
- Wide operating voltage range (typically 2.7V to 6.5V)
- High sensitivity and linear output characteristic
- Compact module format with easy-to-use 3-pin interface (VCC, GND, OUT)
- RoHS compliant and temperature compensated for stable performance
Out of stock
The SS49E module integrates a SS49E series Hall-effect sensor IC, which utilizes a Hall voltage generator, differential amplifier, and temperature compensation circuit to produce a stable analog output voltage. This output varies linearly with the strength and polarity of an external magnetic field applied perpendicular to the sensor face, enabling precise analog measurements of magnetic flux density.
Designed for easy integration, the module includes onboard signal conditioning and a three-pin header (VCC, GND, OUT) for direct connection to microcontroller analog input pins. Its robust performance across a wide temperature range makes it suitable for both educational prototyping and embedded system designs requiring reliable magnetic sensing.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 2.5 × 1.5 × 0.7 cm |
