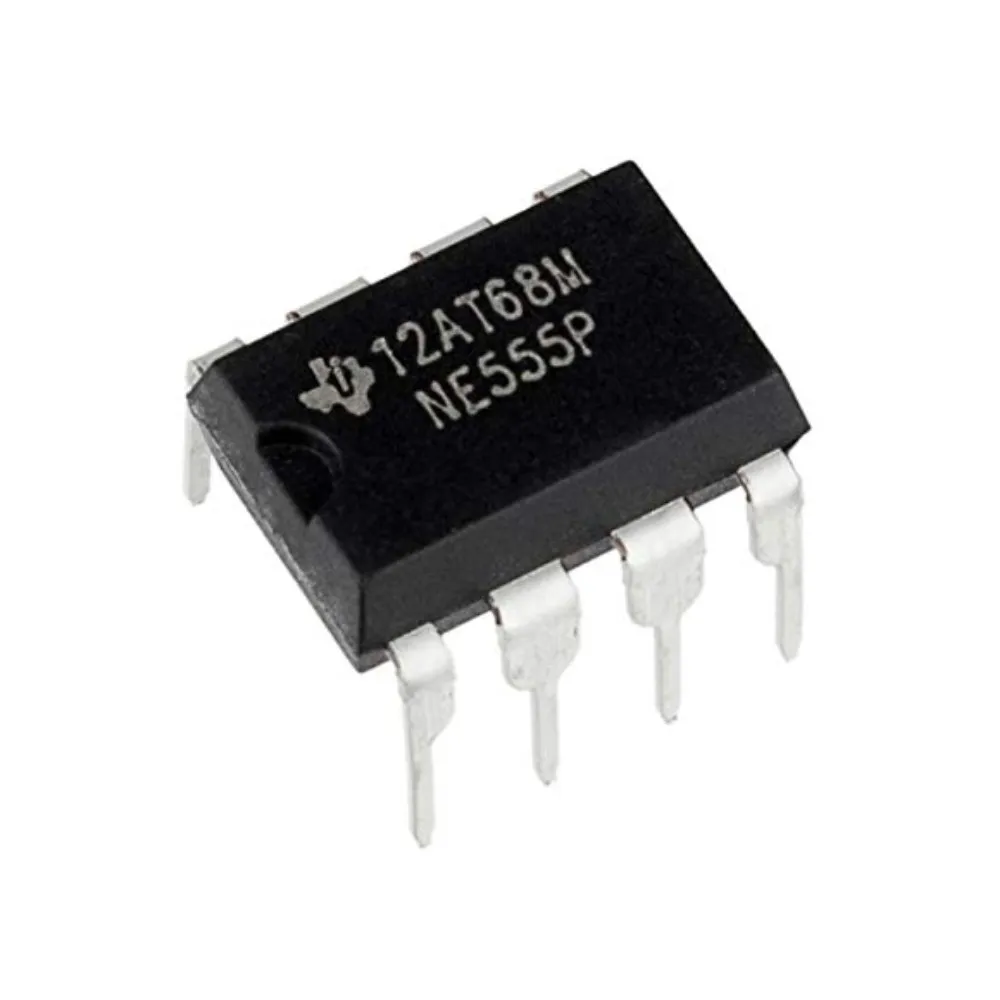

Generic NE555 Timer Integrated Circuit | Precision Pulse Generation | Versatile Waveform Control

The Engineering Behind NE555 Timer IC

The NE555 Timer Integrated Circuit is a robust, precision timing device capable of producing accurate time delays or oscillations. Its core architecture comprises a voltage comparator, a flip-flop, and an output stage, allowing it to operate reliably in monostable (one-shot) or astable (free-running) modes. This versatility makes it a cornerstone component in a vast array of electronic projects, from simple LED flashers to complex pulse width modulation circuits.

Engineered for stability and ease of use, the 555 timer maintains consistent timing characteristics across a wide range of power supply voltages and operating temperatures. Its durable construction ensures longevity in both rapid prototyping environments and long-term embedded applications, making it an ideal choice for educational STEM kits and professional development boards alike.

Precision Timing & Control

At its heart, the NE555 offers exceptional control over pulse width and frequency through the precise manipulation of external resistor and capacitor values. This enables engineers to design highly accurate timing sequences, square wave generators, and clock sources with predictable outputs, crucial for synchronous digital systems and sensor interfacing.

Dual Operational Modes

The NE555’s ability to seamlessly switch between monostable and astable modes provides unparalleled functional flexibility. Monostable operation creates a single, timed output pulse, ideal for debouncing switches or creating time-delay relays, while astable mode generates continuous square wave oscillations, perfect for buzzers, motor control, and LED flashing circuits, resolving common pain points of needing separate ICs for each function.

Optimized for Performance & Integration

• Operating Modes: Monostable, Astable, Bistable
• Supply Voltage: 4.5V to 16V DC (typically 5V, 9V, 12V)
• Output Current: Up to 200mA (source/sink)
• Timing Range: Microseconds to hours (externally adjustable)
• Package Type: DIP-8 (Dual In-line Package) or SOIC-8
• Internal Components: Two Comparators, Flip-Flop, Discharge Transistor
• Frequency Stability: Highly stable over temperature

Features & Benefits

• Wide Operating Voltage Range: Compatible with common power supplies from 4.5V to 16V, simplifying power management.
• High Output Current Capability: Directly drives LEDs, small relays, and logic gates up to 200mA.
• Adjustable Timing Parameters: External resistors and capacitors allow precise control over pulse width and frequency.
• Monostable & Astable Operation: Versatile for creating one-shot timers, square wave oscillators, and pulse generators.
• Temperature Stability: Maintains consistent timing performance across varying environmental conditions.
• Compact DIP-8 Package: Easy integration into breadboards, perfboards, and PCBs for rapid prototyping.
