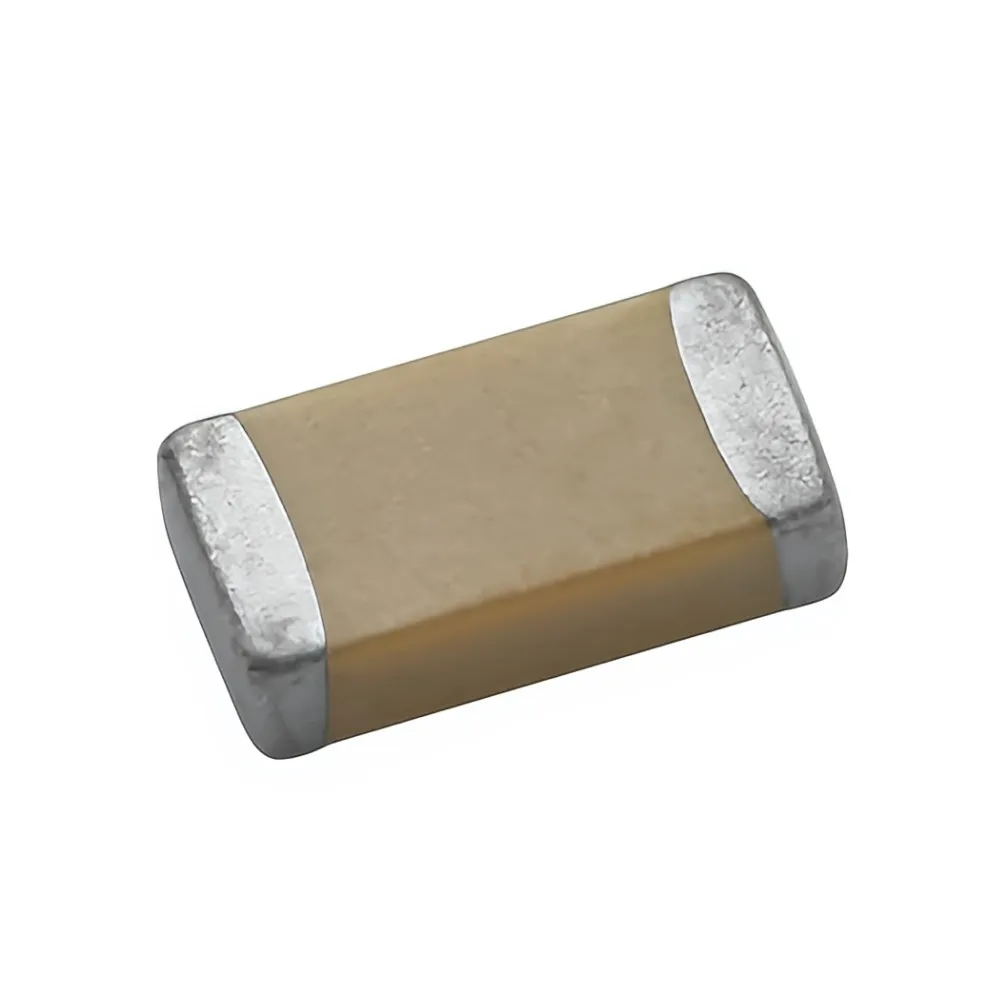

Generic 220pF 1206 Surface Mount Multilayer Ceramic Capacitor – High Frequency Performance (Single)
₹4.00₹10.00 (price_including_tax) (-60%)
Achieve precise circuit tuning and noise reduction with this high-performance 220pF MLCC. Essential for signal conditioning and power supply filtering in demanding SMT designs. Engineered for exceptional stability and long-term operational integrity.
Reliable 220pF 1206 MLCC offers stable capacitance for high-frequency decoupling and filtering in compact circuits.
Delivers clean signals and stable power, essential for sensitive analog and digital circuits.
Small 1206 footprint allows high-density layouts, optimizing space in miniaturized electronic devices.
Robust ceramic dielectric ensures consistent operation and long-term durability in harsh environments.
The Engineering Behind 220pF 1206 Multilayer Ceramic Capacitors
The 220pF 1206 Surface Mount Multilayer Ceramic Capacitor (MLCC) is a fundamental passive component critical for signal integrity and power delivery networks in modern electronics. Utilizing a robust ceramic dielectric material, typically X7R or C0G (NP0) for this value, it stores and releases electrical charge, effectively blocking DC current while allowing AC signals to pass or shunting unwanted high-frequency noise to ground. Its compact 1206 package makes it ideal for dense PCB layouts requiring efficient board space utilization and automated assembly processes.
Constructed from alternating layers of ceramic dielectric and metal electrodes, these capacitors are fired at high temperatures to form a monolithic structure, offering high reliability and excellent mechanical strength. The multilayer design provides high volumetric efficiency, allowing a significant capacitance value in a small form factor, crucial for miniaturization trends in consumer electronics, industrial controls, and communication modules.
High Frequency Performance & Decoupling
The low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL) inherent in MLCCs, especially in the 1206 form factor, enable superior performance in high-frequency applications. This makes the 220pF MLCC an excellent choice for decoupling digital ICs, filtering noise in RF circuits, and timing applications where stable capacitance across a broad frequency range is paramount for system stability and signal fidelity.
Robust SMT Integration & Reliability
Designed for surface-mount technology (SMT), the 1206 package ensures compatibility with standard automated pick-and-place manufacturing lines, reducing assembly costs and increasing production efficiency. Its robust construction minimizes issues like micro-cracking during soldering and thermal cycling, which often plague lesser-quality components, thereby ensuring long-term reliability and reducing field failures in mission-critical applications.
Optimized for Performance & Integration
- Capacitance: 220 pF
- Package Size: 1206 (3.2mm x 1.6mm)
- Mounting Type: Surface Mount Device (SMD)
- Dielectric Type: Ceramic (typically X7R for general purpose or C0G for high stability)
- Tolerance: ±10%
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 50V DC
Features & Benefits
- 220pF Capacitance: Ideal for high-frequency filtering, decoupling, and resonant circuit tuning.
- 1206 SMD Package: Ensures compact board designs and automated manufacturing compatibility.
- Multilayer Ceramic Construction: Provides exceptional stability, reliability, and extended operational lifespan.
- Low ESR/ESL Characteristics: Delivers superior performance in high-frequency and critical timing applications.
- Wide Operating Temperature Range: Guarantees consistent performance across diverse environmental conditions.
Pro-Grade Advantages
- Excellent high-frequency response for critical decoupling.
- Compact 1206 package optimizes PCB real estate.
- Robust ceramic construction ensures high reliability and durability.
- Suitable for automated pick-and-place assembly processes.
Technical Considerations
- Susceptible to micro-cracking with improper soldering profiles.
- Capacitance can vary slightly with applied DC bias voltage (depending on dielectric).
What is the primary application of a 220pF 1206 MLCC?
A 220pF 1206 MLCC is primarily used for high-frequency decoupling, signal filtering, and resonant circuit applications in compact surface-mount designs, providing noise reduction.
What does ‘1206’ refer to in the capacitor’s name?
‘1206’ denotes the capacitor’s standard package size in imperial units, meaning it is 0.12 inches long and 0.06 inches wide.
Can this capacitor be used for AC coupling?
Yes, a 220pF MLCC can be effectively used for AC coupling applications, allowing AC signals to pass while blocking DC, depending on the frequency range.
What are the typical voltage ratings for a 220pF 1206 MLCC?
Common voltage ratings for a 220pF 1206 MLCC range from 25V to 100V, with 50V being a very frequently encountered standard for general purpose use.
What dielectric materials are commonly used for 220pF MLCCs?
For 220pF values, common dielectric materials include X7R for general-purpose stable capacitance or C0G (NP0) for highly stable, temperature-compensated applications.
| Specification | Value |
|---|---|
| Capacitance Value | 220 pF |
| Package Type | 1206 (Surface Mount) |
| Dielectric Material | X7R (General Purpose) |
| Voltage Rating (Max) | 50V DC |
| Capacitance Tolerance | ±10% |
| Operating Temperature Range | -55°C to +125°C |
| ESR (Equivalent Series Resistance) | Low |
| ESL (Equivalent Series Inductance) | Low |
| Termination Finish | Tin Plated |
| Mounting | Reflow Solderable |
Additional information
| Weight | 0.00001 kg |
|---|---|
| Dimensions | 0.32 × 0.16 × 0.09 cm |
| Brand | Generic |
| Technology | Multilayer Ceramic |
| Capacity | 220 pF |
| Package | 1206 (SMD) |
| Tolerance | ±10% |
