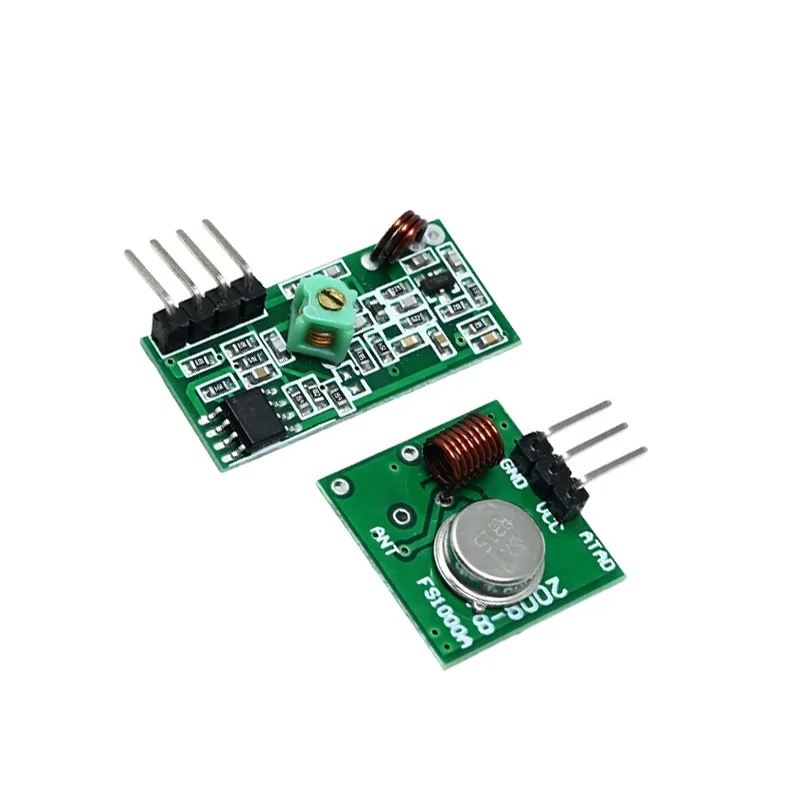

Generic MX-05V & MX-FS-03V RF Transmitter Receiver Module 315MHz Kit
This 315MHz AM RF transmitter and receiver module pair provides a low-cost, simple wireless link for Arduino and DIY electronics projects, offering a line-of-sight range of up to 200 meters with a high-sensitivity (-105dB) receiver.
Features
- Operates on the license-free 315MHz ISM band for reliable, short-range wireless data transmission.
- Receiver features high sensitivity of -105dB for robust signal reception over distances up to 200 meters in open space.
- Transmitter supports a wide 3.5V to 12V input range, while the receiver operates on a stable 5V supply.
- Simple three-pin interface (DATA, VCC, GND) for easy integration with microcontrollers like Arduino.
- Supports Amplitude Modulation (AM) with a data rate of 4KB/s, suitable for remote control and telemetry commands.
Out of stock

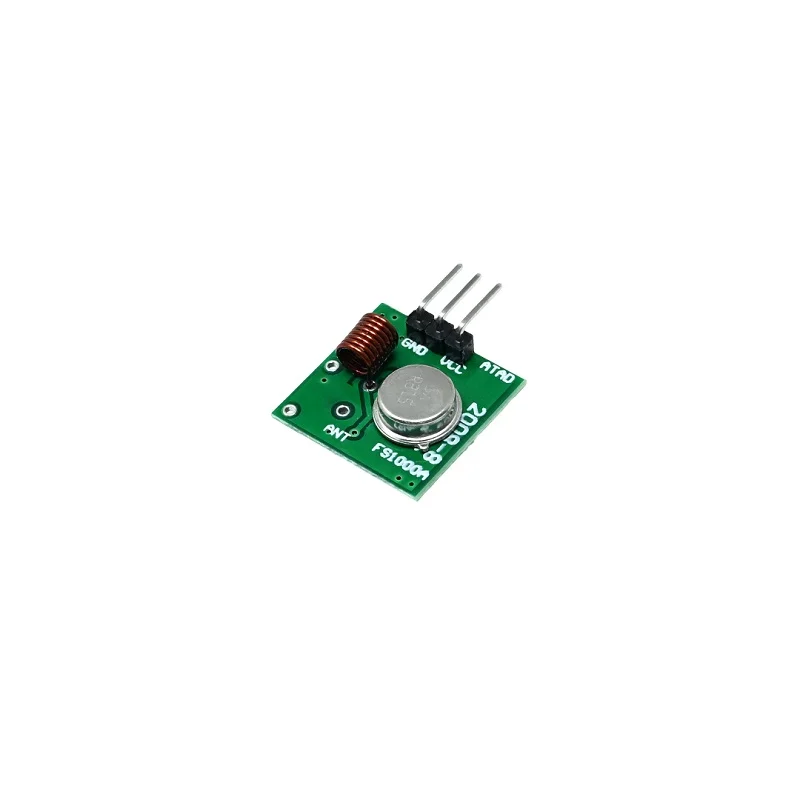

The Generic MX-05V & MX-FS-03V RF Transmitter Receiver Module Kit implements a straightforward Amplitude Modulation (AM) wireless communication link on the 315MHz frequency band. This pair is engineered for cost-effective, low-data-rate remote control applications, where bi-directional communication is not required. The transmitter module’s wide operating voltage allows for flexibility in power sourcing, from a 3.3V logic-level supply up to 12V for increased range.

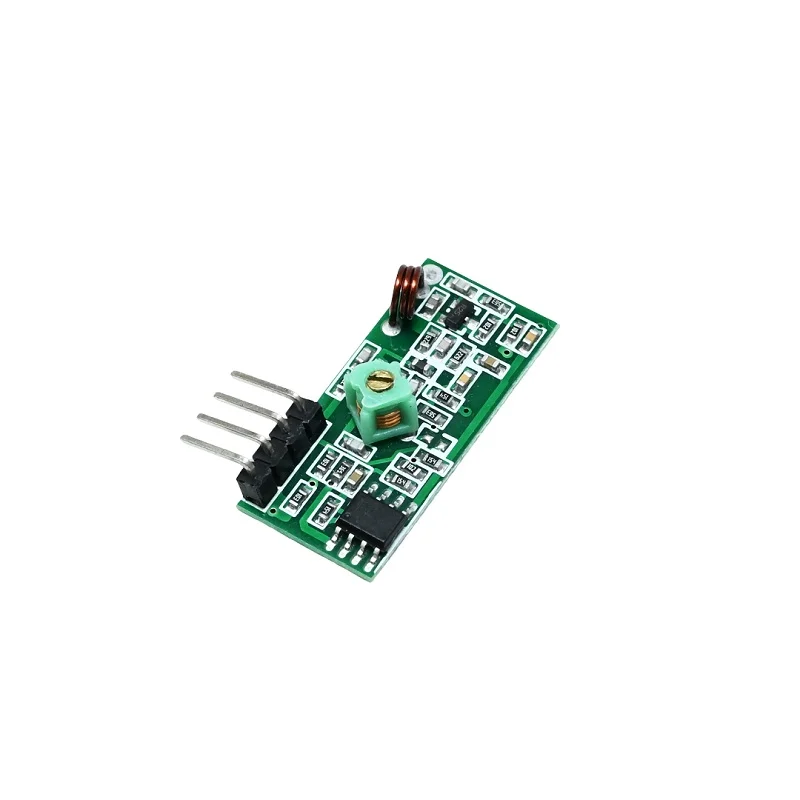

The receiver module’s high sensitivity of -105dB ensures reliable decoding of the transmitted signal, maximizing the effective range in open environments. Both modules feature a minimal three-pin interface, making them plug-and-play compatible with common development platforms like Arduino for controlling relays, sensors, or motors wirelessly. The included 25cm wire antenna provides a basic radiating element, with performance scaling based on antenna length and orientation.
Additional Information
| Weight | 0.02 kg |
|---|
