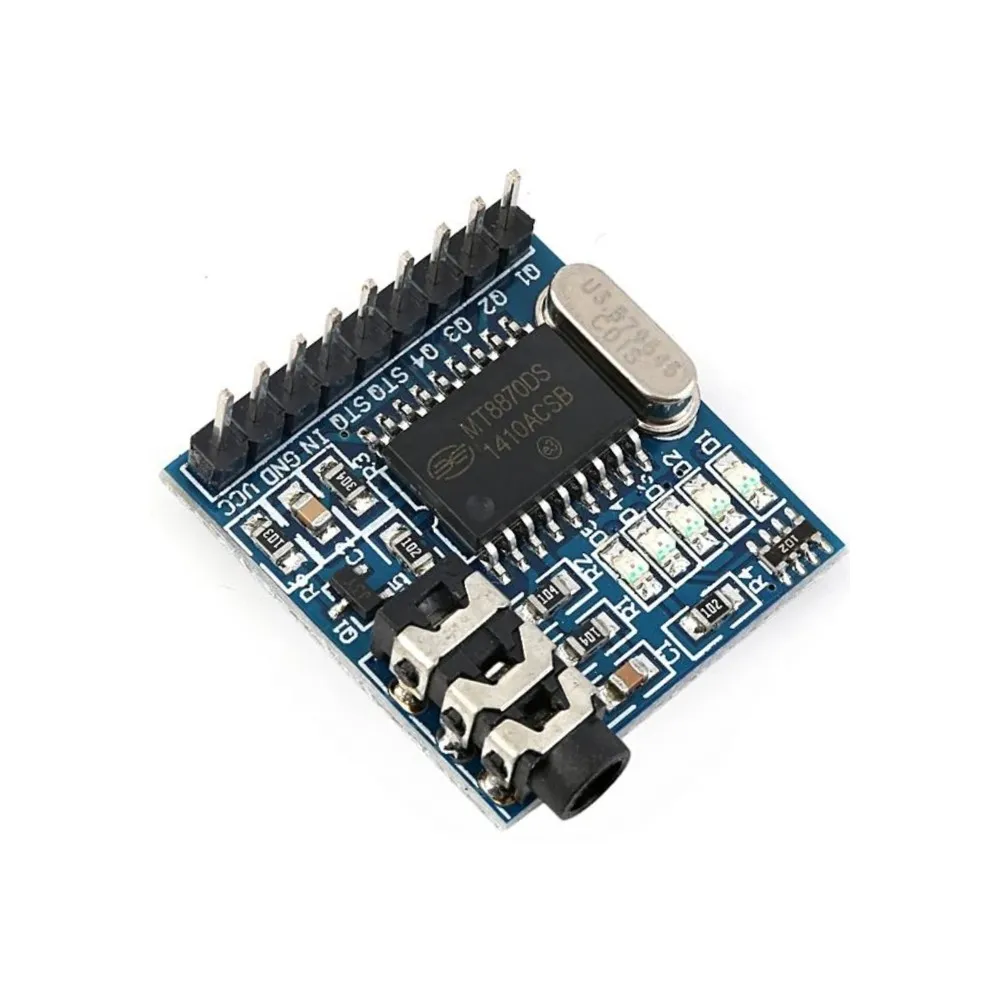

Generic MT8870 DTMF Decoder Module | Precision Audio Signal Processing | Robust Telephony Integration

The Engineering Behind MT8870 DTMF Decoding Module

The MT8870 DTMF Decoding Module serves as a critical interface for translating standard Dual-Tone Multi-Frequency (DTMF) signals into usable digital outputs. At its core lies the powerful MT8870 integrated circuit, designed for reliable detection and decoding of the 16 DTMF tone pairs. This module meticulously processes incoming audio, separating the high and low-frequency groups, and then uses a digital counting technique to determine the frequency components, ultimately converting them into a 4-bit binary output representing the dialed digit or command.

Crafted with a compact PCB layout, this module ensures efficient signal integrity and minimizes external component requirements. Its robust design is optimized for continuous operation in various environments, from hobbyist projects requiring simple remote control to industrial applications demanding precise telephony-based data entry and system automation. The clear pinout facilitates straightforward integration, making it an excellent educational tool for understanding telecommunications protocols.

Precision DTMF Signal Recognition

The primary advantage of the MT8870 is its highly accurate and quick recognition of DTMF tones, including the standard 0-9, A-D, *, and # characters. This precision ensures that even in noisy audio environments or with slight frequency variations, the module reliably decodes the correct signal, preventing misinterpretation in critical control applications like interactive voice response systems, remote appliance control, or security access systems.

Seamless Digital Output Integration

The module provides a stable 4-bit parallel data output (Q1-Q4) along with a Strobe (ST) signal, simplifying its interface with microcontrollers like Arduino, Raspberry Pi, or other embedded platforms. This direct digital interface eliminates the need for complex analog-to-digital conversion, significantly reducing development time and potential errors. The Strobe signal acts as a data valid indicator, ensuring synchronous data capture and improving system responsiveness.

Optimized for Performance & Integration

• Core Chip: MT8870 DTMF Decoder IC
• Operating Voltage: 5V DC (typical)
• Output Format: 4-bit Parallel Digital (Q1, Q2, Q3, Q4)
• Control Signals: Strobe (ST), Error (E), Power Down (PD)
• Decoding Capability: 16 DTMF Tones (0-9, A-D, *, #)
• Input Impedance: High-impedance audio input
• Applications: Remote control, IVR systems, robotics

Features & Benefits

• Integrated MT8870 IC: Ensures industry-standard, high-reliability DTMF tone decoding.
• Wide Tone Recognition: Decodes all 16 standard DTMF characters including 0-9, A-D, *, and #.
• 5V Operating Voltage: Compatible with most common microcontroller platforms and power supplies.
• 4-Bit Digital Output: Provides direct parallel data for easy interfacing with microcontrollers.
• Strobe Signal Indicator: Confirms data validity for synchronous and error-free signal capture.
• Compact Module Design: Facilitates effortless integration into existing project enclosures and PCBs.
