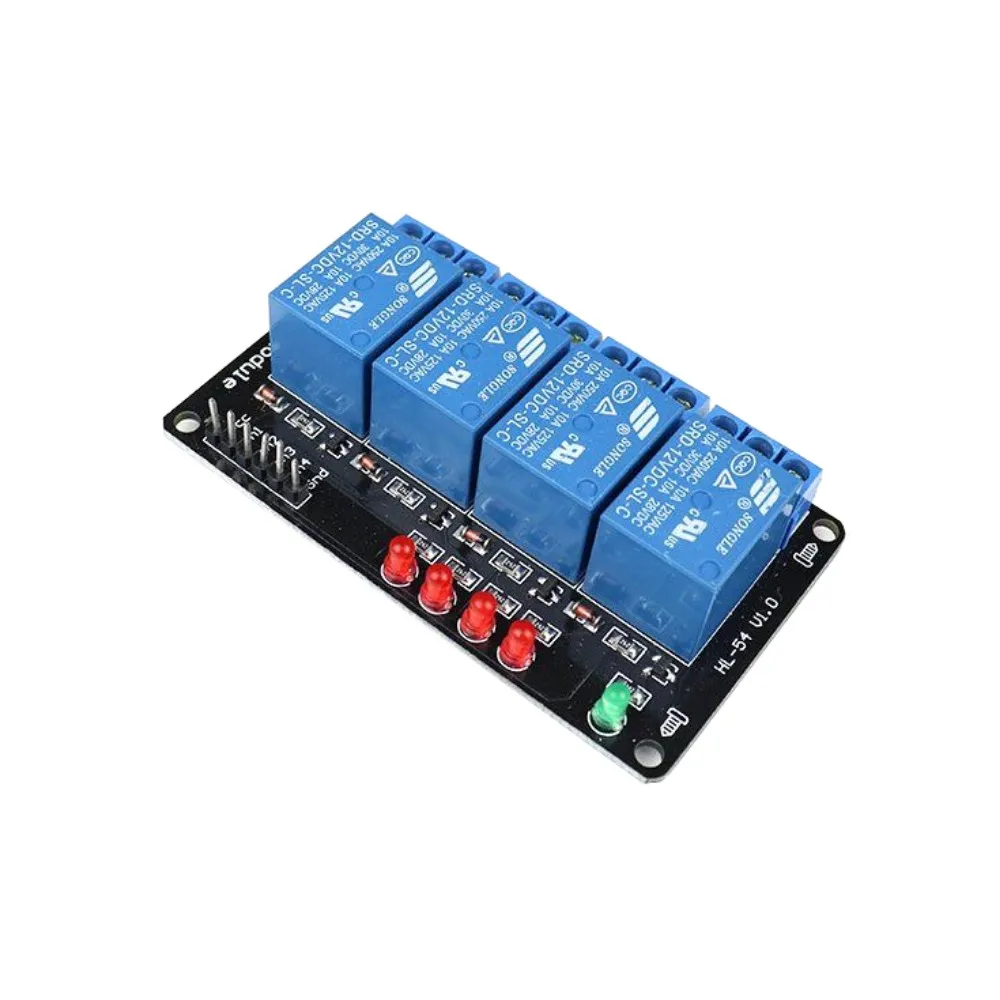

Generic 4 Channel 12V Relay Module | Opto-Isolated | High Current Switching | Microcontroller Compatible

The Engineering Behind 4 Channel 12V Relay Module

The 4 Channel 12V Relay Module is a robust electro-mechanical switching solution designed to interface low-voltage microcontroller logic (e.g., 3.3V/5V Arduino, Raspberry Pi) with higher voltage/current loads. Each channel incorporates a Songle SRD-12VDC-SL-C SPDT (Single-Pole Double-Throw) relay, enabling the switching of AC or DC loads up to 10A at 250VAC or 30VDC. The module operates by energizing a 12V coil, which magnetically actuates the relay contacts to switch the load circuit.

Constructed with high-quality PCB materials and featuring screw terminal blocks, this module ensures secure and reliable connections for both control signals and high-power lines. The inclusion of optocouplers on each channel provides crucial galvanic isolation, preventing damage to sensitive microcontroller circuitry from high-voltage spikes or ground loop issues, a critical aspect for industrial and long-term embedded applications.

Opto-Isolated Control Logic

A key architectural advantage of this relay module is its integrated optocoupler isolation for each control channel. This mechanism uses light to transmit signals between the microcontroller’s low-voltage control side and the relay’s higher-voltage coil side, effectively breaking the electrical connection. This prevents noise, voltage transients, and potential damage from inductive kickback or load short circuits from propagating back to the delicate digital logic, thus enhancing system stability and safety in demanding environments.

Versatile 4-Channel Configuration

The module’s quad-channel design allows for simultaneous or independent control of up to four distinct high-power loads. Each relay features both Normally Open (NO) and Normally Closed (NC) contacts, providing flexibility for various switching requirements, such as controlling lights, motors, solenoid valves, or other AC/DC appliances in home automation, robotics, or industrial control systems. This versatility makes it an indispensable component for complex automation projects requiring multiple load controls.

Optimized for Performance & Integration

• Channels: 4 independent relay channels
• Coil Voltage: 12V DC
• Trigger Voltage: 3.3V / 5V DC (configurable via jumper in some models, default often 5V)
• Max Load Current (per channel): 10A @ 250VAC / 30VDC
• Relay Type: SPDT (Single-Pole Double-Throw) with NO/NC contacts
• Isolation: Optocoupler isolated for microcontroller protection
• Interface: Standard pin headers for control, screw terminals for load

Features & Benefits

• 4 Independent Channels: Control multiple high-power devices simultaneously or individually from a single module.
• 12V Relay Coils: Standard operating voltage for broad compatibility with power supplies in automation setups.
• Optocoupler Isolation: Protects sensitive microcontroller circuits from high-voltage spikes and inductive loads, ensuring system longevity.
• High Current Capacity (10A): Safely switch a wide range of AC and DC loads including lights, motors, and appliances.
• Screw Terminal Connectors: Provides robust and secure wire connections for both control and power lines, enhancing reliability.
• LED Status Indicators: Visual confirmation of relay activation for easy troubleshooting and operational monitoring.
