Generic DS1302 Real Time Clock Module RTC | Battery Backup | 3-Wire Interface for Microcontrollers

The Engineering Behind DS1302 Real Time Clock Module

The DS1302 Real Time Clock (RTC) module is a core component designed for precise timekeeping within embedded systems. Leveraging the robust DS1302 chip, it provides accurate calendar and time functions, including seconds, minutes, hours, day of the week, day of the month, month, and year, with automatic leap-year compensation. Its operational mechanics are centered around a low-power oscillator and a 3-wire serial interface, enabling efficient communication with a wide array of microcontrollers.

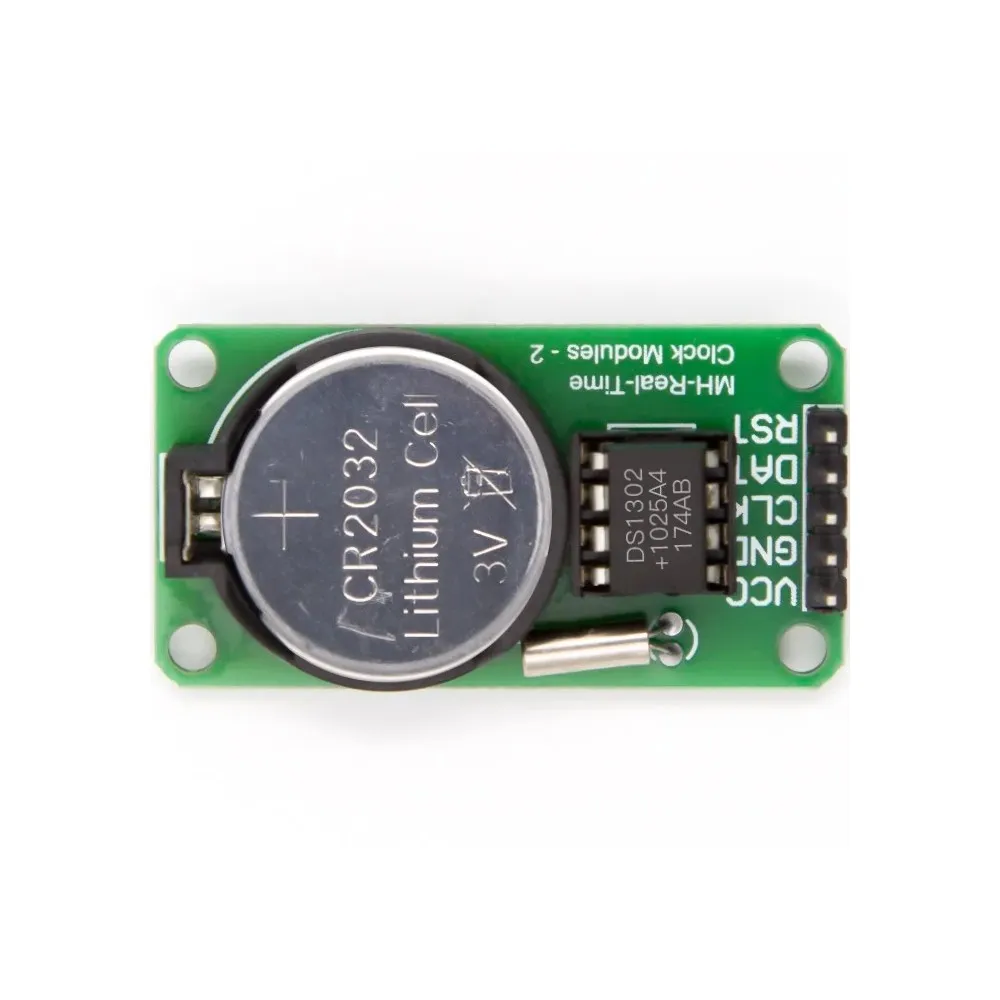

This module features a meticulously designed PCB, integrating the DS1302 chip with necessary support components, including a crystal oscillator for stable timing and a battery holder for a CR2032 coin cell. The component grades selected ensure sustained accuracy and operational longevity, making it suitable for industrial logging, data acquisition, and educational STEM projects demanding consistent temporal data integrity.

High-Accuracy Timekeeping with Battery Backup

The primary technical feature of the DS1302 RTC module is its ability to maintain highly accurate time and date information even when the main system power is removed. This critical capability is achieved through an integrated 3V lithium coin cell battery backup, which powers the internal timing circuitry independently. This engineering choice guarantees that critical timestamps and scheduled events remain synchronized and uncorrupted, preventing data loss or system anomalies due to power interruptions.

Simplified 3-Wire Serial Interface

The DS1302 module simplifies integration into complex embedded architectures through its efficient 3-wire serial interface (RST, I/O, SCLK). This protocol, often compatible with standard SPI libraries, allows for straightforward data exchange with microcontrollers using minimal I/O pins. This structural choice significantly reduces wiring complexity and frees up valuable microcontroller pins for other peripheral connections, addressing traditional pain points of resource-constrained development.

Optimized for Performance & Integration

• Chipset: Maxim DS1302
• Operating Voltage: 2.0V to 5.5V (typical module operation at 3.3V or 5V)
• Current Consumption: Less than 300nA in battery backup mode (TYP)
• Timekeeping Accuracy: ±2 seconds/day at 25°C
• Interface Protocol: 3-wire serial (RST, I/O, SCLK)
• On-board Storage: 31-byte static RAM
• Battery Type: CR2032 Coin Cell (not always included, but supported)
• Oscillator: External 32.768kHz Crystal

Features & Benefits

• Real-Time Clock/Calendar: Provides precise seconds, minutes, hours, day, date, month, and year data with leap-year compensation for critical timestamping.
• Battery Backup (CR2032): Ensures continuous timekeeping and data retention for the 31-byte RAM even during main power outages.
• 3-Wire Serial Interface: Simplifies connectivity to microcontrollers, reducing I/O pin usage and streamlining project integration.
• Low Power Consumption: Operates efficiently, extending battery life in backup mode for long-term autonomous applications.
• 31-Byte Static RAM: Offers non-volatile memory for storing critical configuration parameters or small datasets without requiring external EEPROM.
• Wide Operating Voltage: Compatible with both 3.3V and 5V logic levels, allowing flexible use across various microcontroller platforms.
