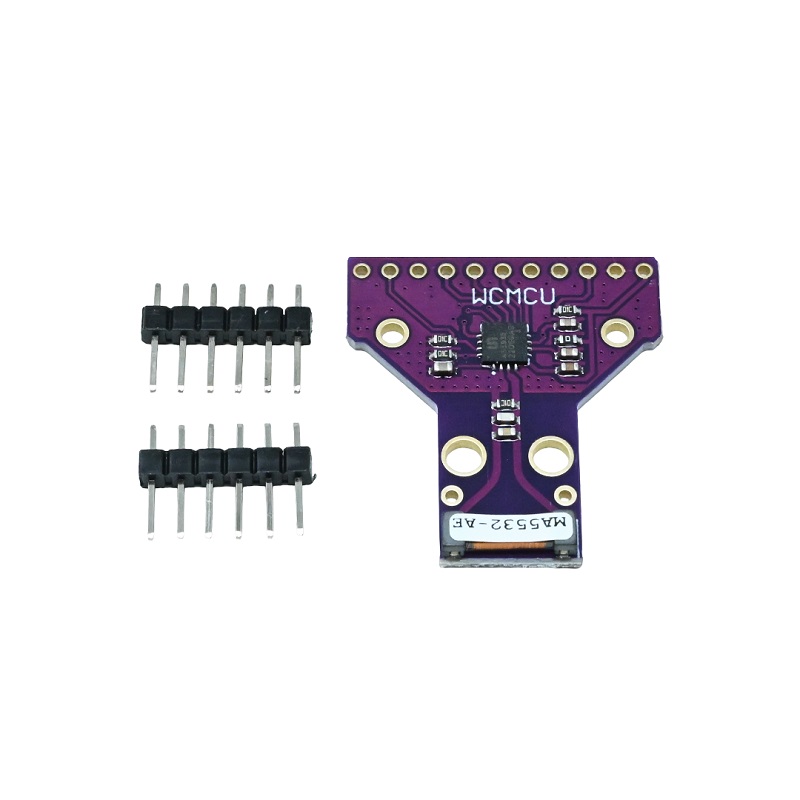

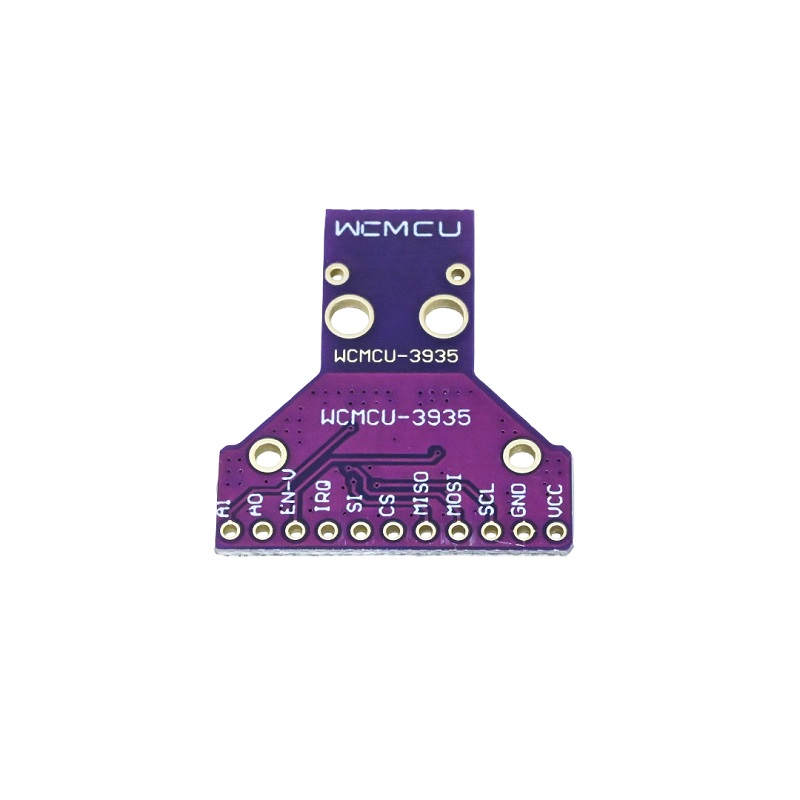

Generic MCU-3935 AS3935 Lightning Sensor Module - I2C/SPI Interface
The MCU-3935 AS3935 Lightning Sensor Module is a digital IC-based detector offering 1-40km strike detection range with ±1km accuracy. It features I2C and SPI interfaces for seamless integration with Arduino, ESP32, Raspberry Pi, and other 3.3V/5V microcontrollers, making it ideal for weather monitoring and atmospheric research.
Features
- AS3935 Franklin Lightning Sensor IC with configurable detection algorithms
- 1 to 40km detection range with ±1km distance estimation accuracy
- Dual I2C and SPI digital communication interface for flexible system integration
- Wide 2.4 to 5.5V DC operating voltage compatible with 3.3V and 5V logic
- Integrated IRQ interrupt pin for real-time, low-latency event notification
Out of stock
The MCU-3935 module integrates the AS3935 Franklin IC, a fully integrated lightning sensor that detects cloud-to-ground and intra-cloud discharges. It employs advanced signal processing to differentiate between actual lightning events and man-made electromagnetic noise, ensuring reliable storm detection. The module outputs strike distance estimation and event energy data via its configurable I2C or SPI bus.
Designed for robust operation, the sensor functions across an industrial temperature range of -40°C to +85°C, making it suitable for harsh outdoor environments. Its ultra-low power consumption (typically 50mW) and compact PCB footprint enable deployment in portable weather stations, remote monitoring systems, and educational atmospheric science projects.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3 × 2.7 × 0.2 cm |
