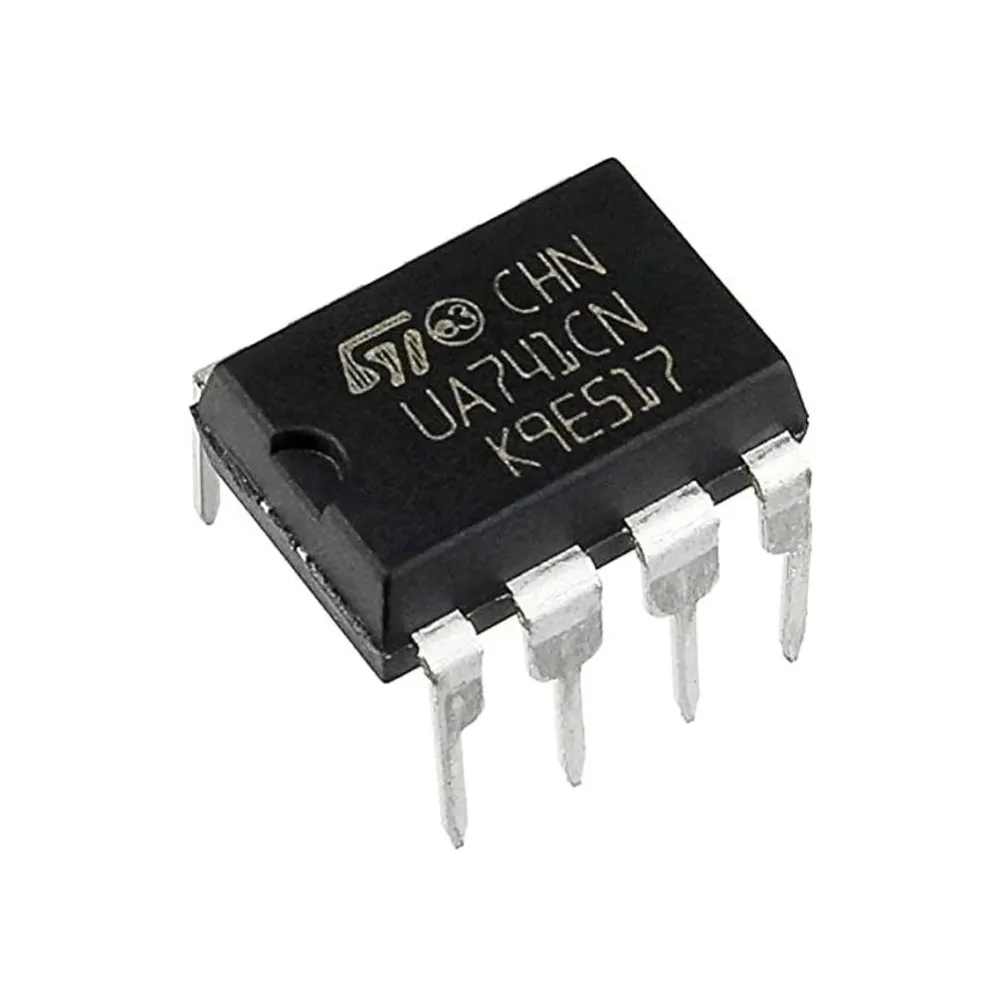

Name: Generic LM741N Operational Amplifier | Versatile Signal Processing | Stable &amp; Reliable Performance
Brand: Generic
SKU: OL-GEN-LM741N
Price: 45.00 INR
Availability: InStock

Industry Standard Reliability

Trusted for decades, the LM741N offers consistent performance in countless analog circuit designs.

Educational Circuit Foundation

Perfect for learning op-amp fundamentals, enabling diverse experiments in electronics education and projects.

Integrated Protection Features

Built-in short-circuit protection enhances durability and simplifies design, preventing common operational issues.

The Engineering Behind LM741N Operational Amplifier

The LM741N is a monolithic general-purpose operational amplifier featuring high gain, high input impedance, and short-circuit protection. It integrates several transistors and passive components onto a single silicon chip to perform differential amplification. Its operational mechanics involve amplifying the voltage difference between its two input pins, producing an output voltage proportional to this difference, thereby serving as a fundamental building block for a myriad of analog functions.

Packaged in an 8-pin PDIP (Plastic Dual In-line Package), the LM741N is designed for through-hole mounting, making it highly suitable for breadboarding and educational prototyping. Its robust construction ensures moderate durability in typical hobbyist and industrial environments, with internal compensation for frequency stability. This venerable IC offers immense pedagogical value, providing a hands-on learning tool for students to grasp core concepts of feedback, filters, and active rectifiers.

Versatile Signal Amplification Core

At its heart, the LM741N excels in differential signal amplification, offering high gain and a wide input voltage range. This capability allows engineers and students to design precision voltage followers, inverting and non-inverting amplifiers, summing amplifiers, and active filters. Its versatility makes it indispensable for applications ranging from audio processing and sensor interfacing to control systems, providing clean, amplified signals crucial for downstream processing.

Robust Short-Circuit Protection & Stability

A key design feature of the LM741N is its integrated short-circuit protection on the output stage, safeguarding the device from damage during accidental overloads. Furthermore, the op-amp is internally compensated for unity-gain frequency stability, eliminating the need for external compensation capacitors in most common configurations. These features significantly enhance reliability and simplify circuit design, reducing common pitfalls associated with external component management and potential device failure.

Optimized for Performance & Integration

Operating Voltage: ±5V to ±15V (Dual Supply)
Input Offset Voltage: 2mV (typical)
Large Signal Voltage Gain: 200,000 V/V
Slew Rate: 0.5 V/µs
Supply Current: 1.7mA (typical)
Package Type: PDIP-8 (Through-Hole)
Operating Temperature: 0°C to +70°C
Internal Compensation: Yes, for unity-gain stability

Features & Benefits

High Voltage Gain: Achieves significant signal amplification for various analog applications.
Wide Operating Voltage Range: Compatible with common dual power supplies (±5V to ±15V) for flexible integration.
Internal Frequency Compensation: Ensures stable operation without external capacitors, simplifying circuit design.
Output Short-Circuit Protection: Guards against damage from accidental overloads, enhancing device longevity.
High Input Impedance: Minimizes loading effects on input sources, preserving signal integrity.
PDIP-8 Package: Easy to use with breadboards and through-hole PCBs for prototyping and educational purposes.

Pro-Grade Advantages

Versatile for a multitude of analog signal processing and conditioning applications.
Internal frequency compensation simplifies circuit design, ensuring stability without external components.
Robust output short-circuit protection enhances reliability and device longevity in diverse environments.
Widely available and cost-effective, making it ideal for educational and hobbyist projects.

Technical Considerations

Limited slew rate restricts performance in high-frequency signal amplification scenarios.
Higher quiescent current consumption compared to modern low-power operational amplifiers.

What is the primary function of an LM741N Operational Amplifier?

The LM741N is a versatile integrated circuit designed primarily for differential voltage amplification, serving as a fundamental building block in various analog circuits.

What does ‘PDIP-8’ signify for the LM741N?

PDIP-8 refers to the Plastic Dual In-line Package with 8 pins, indicating it’s a through-hole component suitable for breadboards and standard PCB mounting.

Can the LM741N operate with a single power supply?

While primarily designed for dual (split) power supplies (e.g., ±15V), it can be configured for single-supply operation with appropriate biasing, although performance may be impacted.

What are typical applications for the LM741N?

Common applications include inverting and non-inverting amplifiers, voltage followers, active filters, integrators, differentiators, and audio pre-amplifiers.

Does the LM741N require external compensation for stability?

No, the LM741N features internal frequency compensation, meaning it is designed for unity-gain stability without the need for external compensation capacitors.

Specification	Value
Input Offset Voltage (typ)	2 mV
Input Bias Current (typ)	80 nA
Input Offset Current (typ)	20 nA
Large Signal Voltage Gain (min)	50,000 V/V
Slew Rate (typ)	0.5 V/µs
Supply Current (typ)	1.7 mA
CMRR (Common Mode Rejection Ratio)	90 dB
Output Short Circuit Current	25 mA (typ)
Operating Temperature Range	0°C to +70°C
Power Dissipation	500 mW
