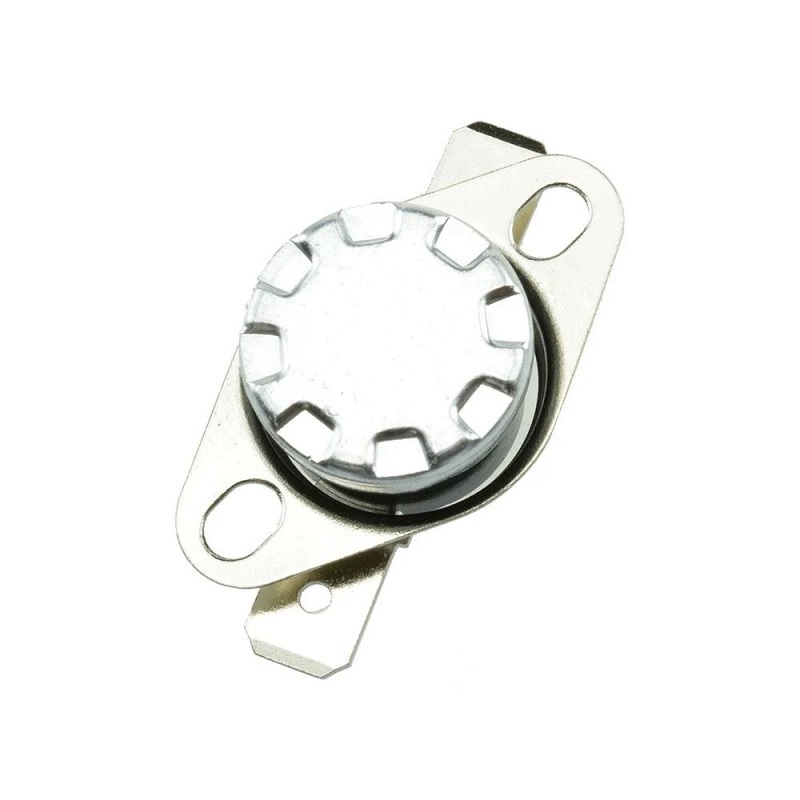

Generic KSD301 50°C Normally Closed NC Temperature Control Switch Thermostat - Bakelite, 250V 10A
The Generic KSD301 is a normally closed (NC) snap-action thermostat designed for precise temperature control at 50°C (± tolerance). This Bakelite-housed switch is rated for 250V AC and 10A, making it suitable for direct integration into heating elements, appliances, and protection circuits.
Features
- Fixed 50°C (± tolerance) normally closed (NC) snap-action bimetallic thermostat.
- Rated for 250V AC / 10A, suitable for direct control of heating loads.
- Durable Bakelite housing providing electrical insulation and thermal stability.
- Compact and robust design for easy panel or surface mounting.
- Commonly used for over-temperature protection and basic thermal regulation.
Out of stock
The KSD301 is a bimetallic snap-action thermostat that opens or closes an electrical circuit based on a preset temperature threshold. The bimetallic disc deforms with temperature change, triggering a mechanical snap-action switch for reliable, repeatable operation at the calibrated setpoint of 50°C.
Housed in a Bakelite case, the device offers good electrical insulation and resistance to moderate heat. The normally closed (NC) configuration means the circuit is complete at temperatures below the setpoint and opens upon reaching 50°C, making it ideal for cut-off applications in heaters, coffee makers, or as a safety device.
Additional Information
| Weight | 0.003 kg |
|---|
