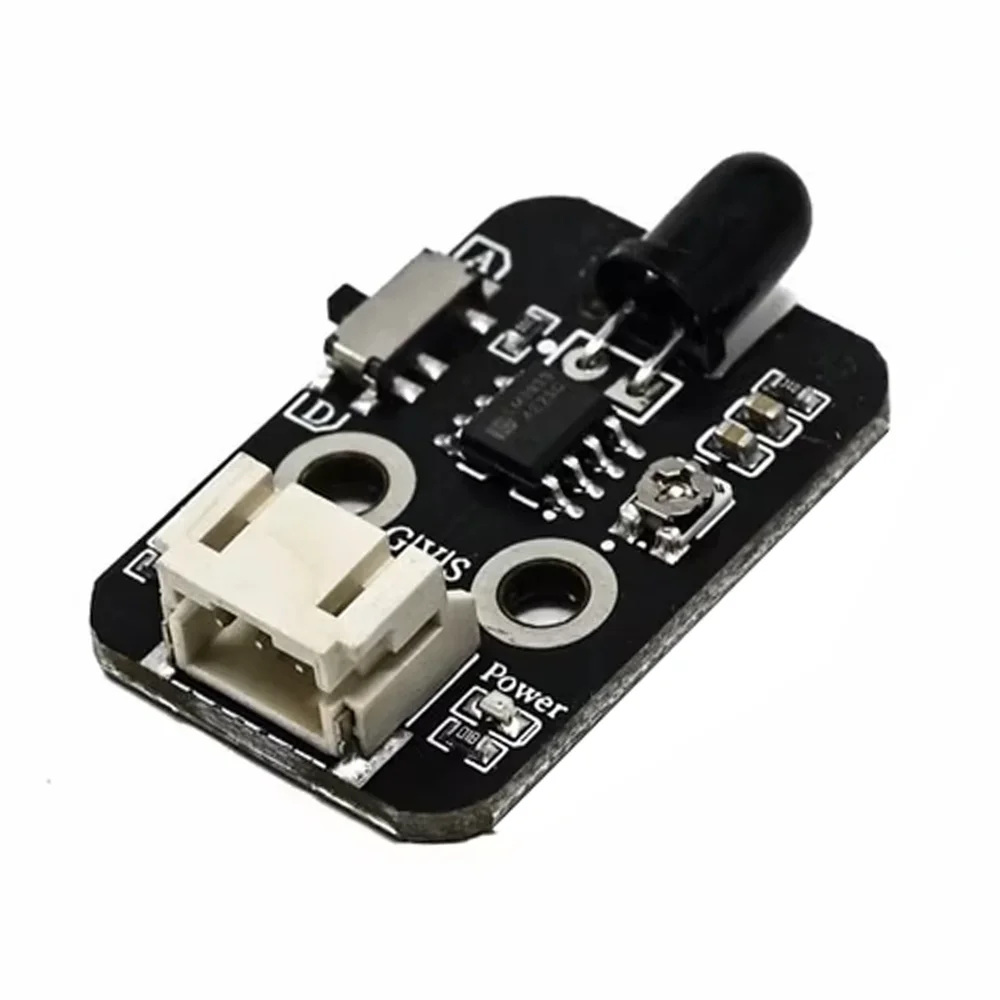

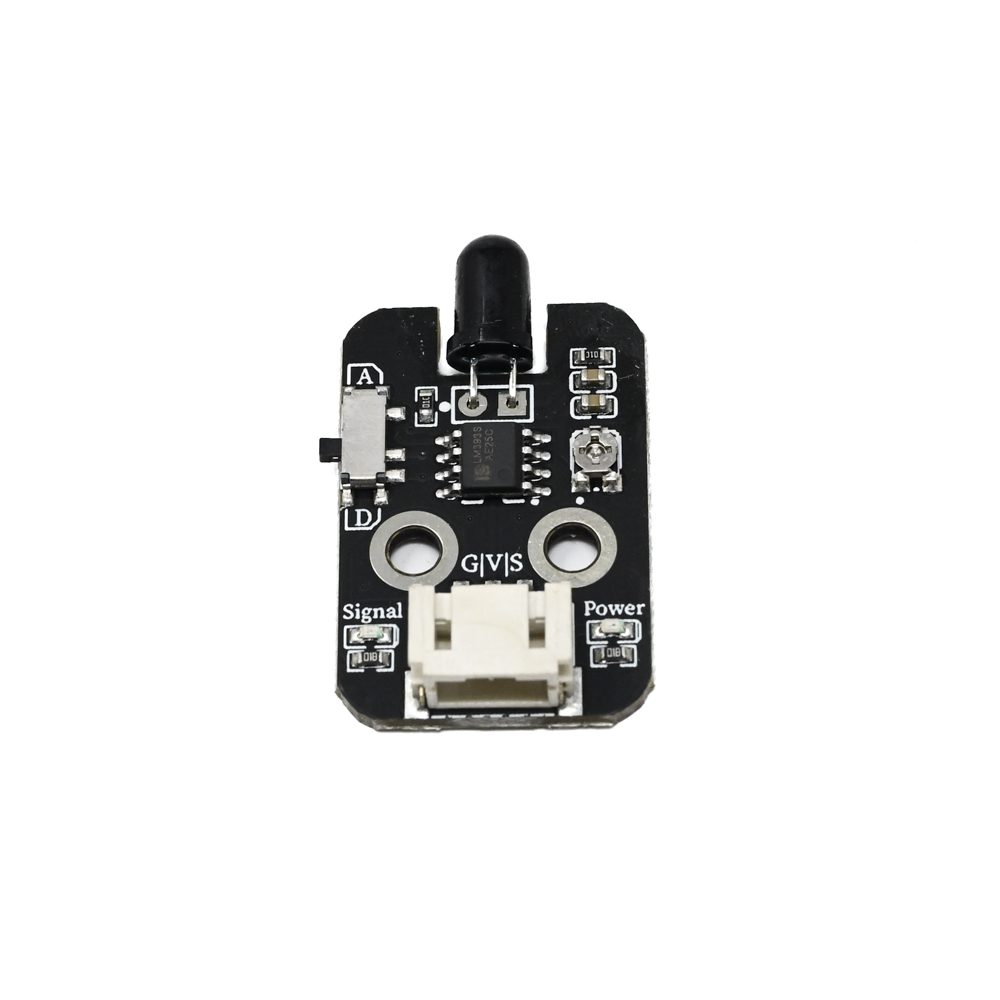

Generic HS-S08P Flame Sensor Module - Digital & Analog Output, PH2.0-3P Terminal
The HS-S08P is a compact flame detection sensor module compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and ESP32. It provides both digital (high/low) and analog (intensity) output signals for precise flame presence and strength monitoring.
Features
- Dual Output Signals: Provides both digital (D) and analog (A) outputs for flexible system integration.
- Wide Voltage Compatibility: Operates from 3.3V to 5.5V DC, suitable for 3.3V and 5V logic platforms.
- Compact & Mountable Design: Small 36.7mm x 20mm footprint with 3mm mounting holes for easy installation.
- Standardized Connector: Features a PH2.0-3P terminal for reliable and quick wiring connections.
- Infrared Spectral Sensitivity: Detects flame in the infrared spectrum for reliable fire detection.
Out of stock
The HS-S08P Flame Sensor Module is an infrared-based detection device designed to identify the presence of a flame by sensing its characteristic IR radiation. It integrates a phototransistor tuned to the specific infrared wavelengths emitted by flames, coupled with onboard signal conditioning circuitry to provide clean digital and analog outputs. This allows for simple threshold-based alarming via the digital pin or more nuanced intensity monitoring via the analog pin.
Constructed on a standard fiberglass PCB, the module is built for prototyping and integration into safety systems, robotics, or automated equipment. Its PH2.0-3P connector ensures secure connections, while the small form factor and pre-drilled mounting holes facilitate installation in confined spaces. The module is intended for indoor or protected environments and is a fundamental component for fire detection projects.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.67 × 2 × 0.7 cm |
