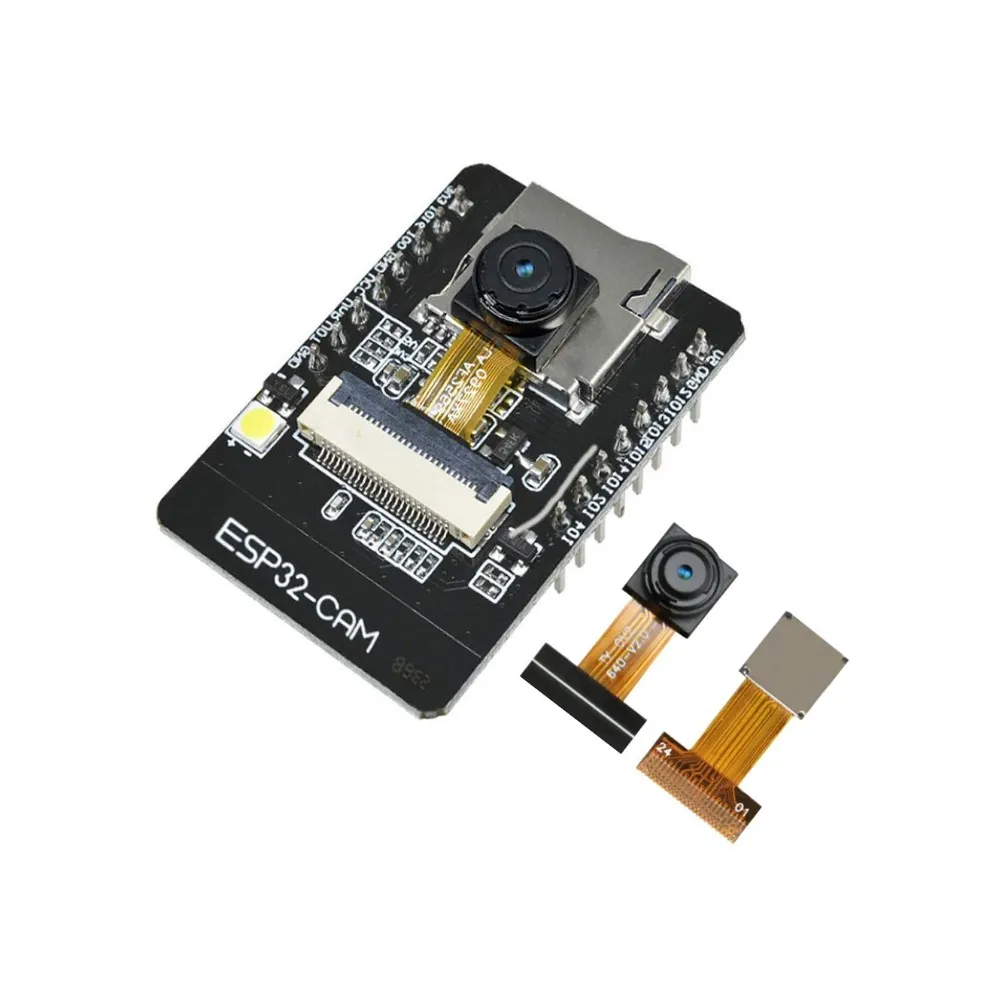

Generic ESP32 CAM WiFi Bluetooth Module | Integrated OV2640 2MP Camera | Face Recognition Ready

The Engineering Behind ESP32-CAM OV2640 Module

The ESP32-CAM is a compact camera module that combines an ESP32-S/ESP32-WROVER based microcontroller with an OV2640 camera sensor. Engineered for low-power IoT applications requiring image capture and network connectivity, it leverages the powerful dual-core Tensilica LX6 processor to manage Wi-Fi, Bluetooth, and complex image processing tasks concurrently. Its primary application lies in embedded vision systems, including real-time video streaming, surveillance, and advanced computer vision projects like object detection and facial recognition.

Designed for robust performance, this module features a compact form factor, making it ideal for integration into space-constrained projects. It includes onboard Flash memory and PSRAM, ensuring sufficient resources for complex firmware and buffer requirements. The module’s structural execution prioritizes ease of use for developers, providing accessible pinouts and a stable platform for both prototyping and deployment in continuous operational embedded contexts, making it an invaluable tool for both educational exploration and industrial solution development.

High-Performance Integrated Connectivity

At its core, the ESP32-CAM integrates an ESP32-S Wi-Fi and Bluetooth module, providing seamless wireless communication capabilities. This allows for effortless data transfer to cloud platforms, remote control via mobile applications, and over-the-air (OTA) firmware updates, resolving the traditional challenges of device management and interaction in distributed IoT networks.

Onboard 2MP OV2640 Camera Sensor

The module is equipped with an OV2640 2-megapixel (UXGA) CMOS camera sensor, renowned for its excellent image quality and versatile output formats including JPEG, YUV, and RGB. This integration facilitates high-resolution image capture and video streaming, crucial for applications such as live monitoring, security systems, and sophisticated face detection and recognition algorithms that demand clear visual input.

Optimized for Performance & Integration

• Processor: Dual-core Tensilica LX6 Microprocessor
• Flash Memory: 4MB SPI Flash
• PSRAM: 4MB (Optional)
• Camera Sensor: OV2640 2MP CMOS Image Sensor
• Wireless Connectivity: 802.11 b/g/n Wi-Fi & Bluetooth 4.2 LE
• Supported Output Formats: JPEG, YUV422/420, YUV400, RGB565/555, RAW RGB
• Interface: UART, SPI, I2C, PWM, ADC, DAC, DVP (Camera)
• Operating Voltage: 5V (via Micro USB or 5V pin) / 3.3V (logic)

Features & Benefits

• Integrated ESP32 MCU: Provides powerful dual-core processing, Wi-Fi, and Bluetooth for robust IoT applications.
• OV2640 2MP Camera: Captures high-resolution images and video, enabling detailed visual analysis for projects.
• Compact Form Factor: Easily integrates into small enclosures and portable devices, ideal for discrete deployments.
• Onboard SD Card Slot: Allows for local storage of images, video, and application data without external modules.
• Low Power Consumption: Optimized for battery-powered applications, extending operational life in remote settings.
• Rich Peripheral Set: Supports various interfaces like UART, SPI, I2C for flexible sensor and actuator integration.
